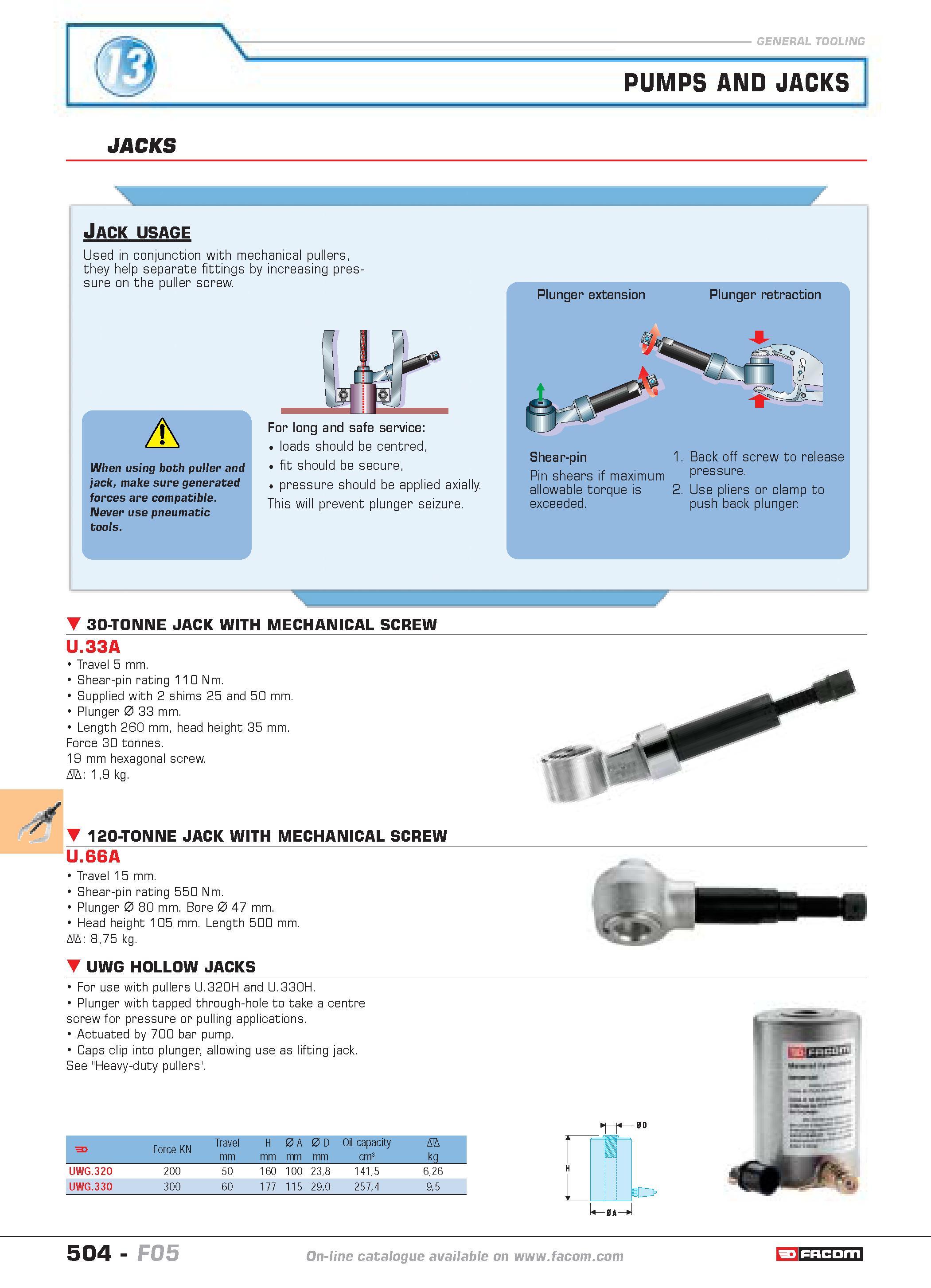

PUMPS AND JACKS JACKS V Jack usage Used in conjunction with mechanical pullers they help separate fittings by increasing pressure on the puller screw. h When using both puller and jack make sure generated forces are compatible. Never use pneumatic tools. For long and safe service loads should be centred fit should be secure pressure should be applied axially. This will prevent plunger seizure. Plunger extension Plunger retraction Shear-pin Pin shears if maximum allowable torque is exceeded. 1. Back off screw to release pressure. 2. Use pliers or clamp to push back plunger. 30-T0NNE JACK WITH MECHANICAL SCREW U.33A Travel 5 mm. Shear-pin rating 110 Nm. Supplied with 2 shims 25 and 50 mm. Plunger 0 33 mm. Length 260 mm head height 35 mm. Force 30 tonnes. 19 mm hexagonal screw. D 19 kg. 120-T0NNE JACK WITH MECHANICAL SCREW U.66A Travel 15 mm. Shear-pin rating 550 Nm. Plunger 0 80 mm. Bore 0 47 mm. Head height 105 mm. Length 500 mm. D 875 kg. UWG HOLLOW JACKS For use with pullers U.320H and U.330H. Plunger with tapped through-hole to take a centre screw for pressure or pulling applications. Actuated by 700 bar pump. Caps clip into plunger allowing use as lifting jack. See "Heavy-duty pullers". F Travel H 0 A 0 D Oil capacity D mm cm3 kq UWG.320 200 50 160 100 238 1415 626 UWG.330 300 60 177 115 290 2574 95 U ha 504 catalogue FACOM F05
