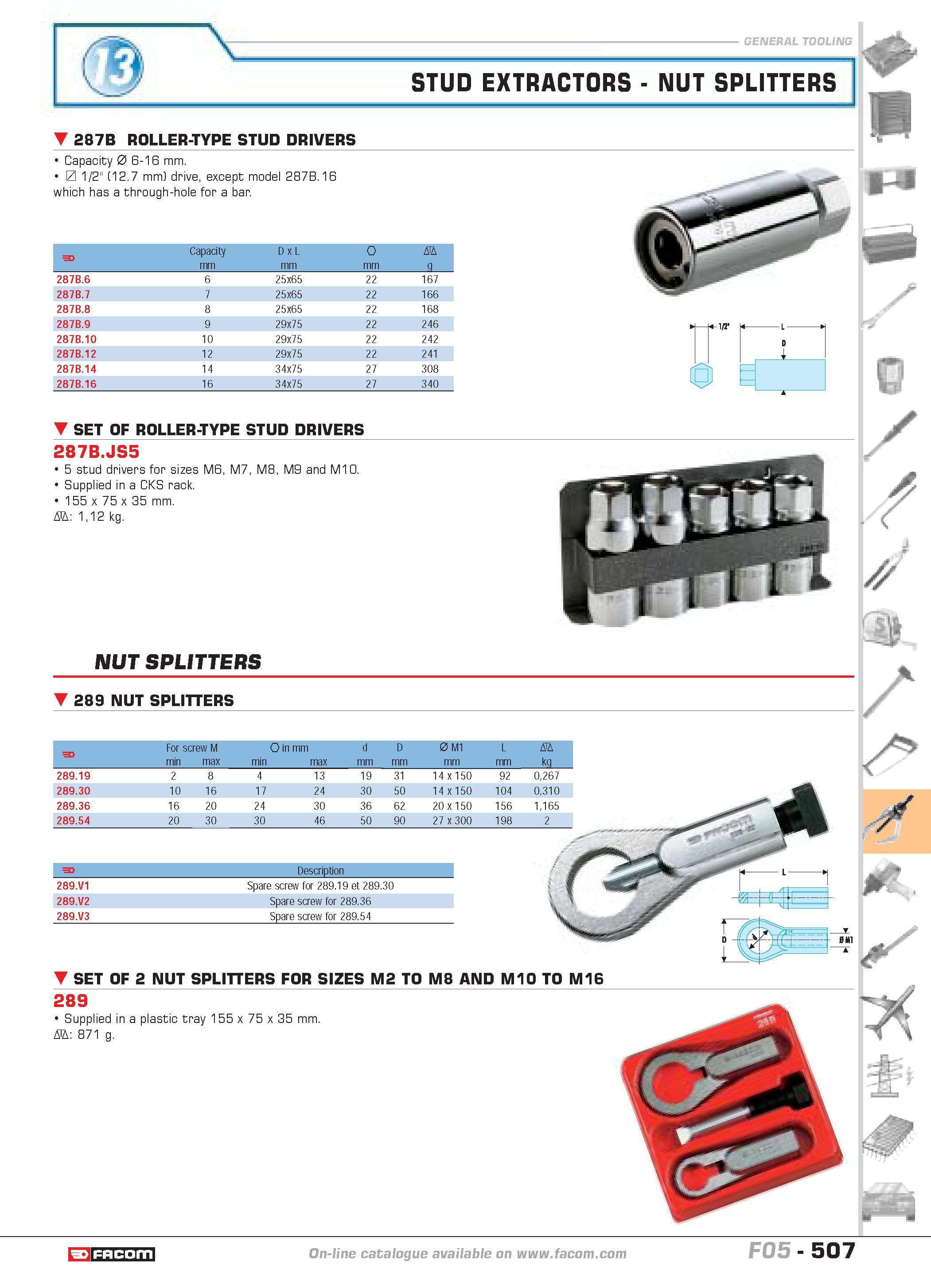

STUD EXTRACTORS NUT SPLITTERS & P 287B ROLLER-TYPE STUD DRIVERS Capacity 0 6-16 mm. 1/2" 12.7 mm) drive except model 287B.16 which has a through-hole for a bar. F Capacity mm D x L mm O mm D q 287B.6 6 25x65 22 167 287B.7 7 25x65 22 166 287B.8 8 25x65 22 168 287B.9 9 29x75 22 246 287B.10 10 29x75 22 242 287B.12 12 29x75 22 241 287B.14 14 34x75 27 308 287B.16 16 34x75 27 340 4-U2' L D 4 SET OF ROLLER-TYPE STUD DRIVERS 287B.JS5 5 stud drivers for sizes M6 Supplied in a CKS rack. 155 x 75 x 35 mm. D 112 kg. M7 M8 M9 and M10. NUT SPLITTERS 289 NUT SPLITTERS F For screw M O in mm d D mm 0 M1 mm L mm D kq min max min max mm 289.19 2 8 4 13 19 31 14x 150 92 0267 289.30 10 16 17 24 30 50 14x 150 104 0310 289.36 16 20 24 30 36 62 20 x 150 156 1165 289.54 20 30 30 46 50 90 27 x 300 198 2 F Description 289.V1 Spare screw for 289.19 et 289.30 289.V2 Spare screw for 289.36 289.V3 Spare screw for 289.54 rra. m SET OF 2 NUT SPLITTERS FOR SIZES M2 TO M8 AND M10 TO M16 289 Supplied in a plastic tray 155 x 75 x 35 mm. D 871 g. I d M catalogue FACOM F05 507
