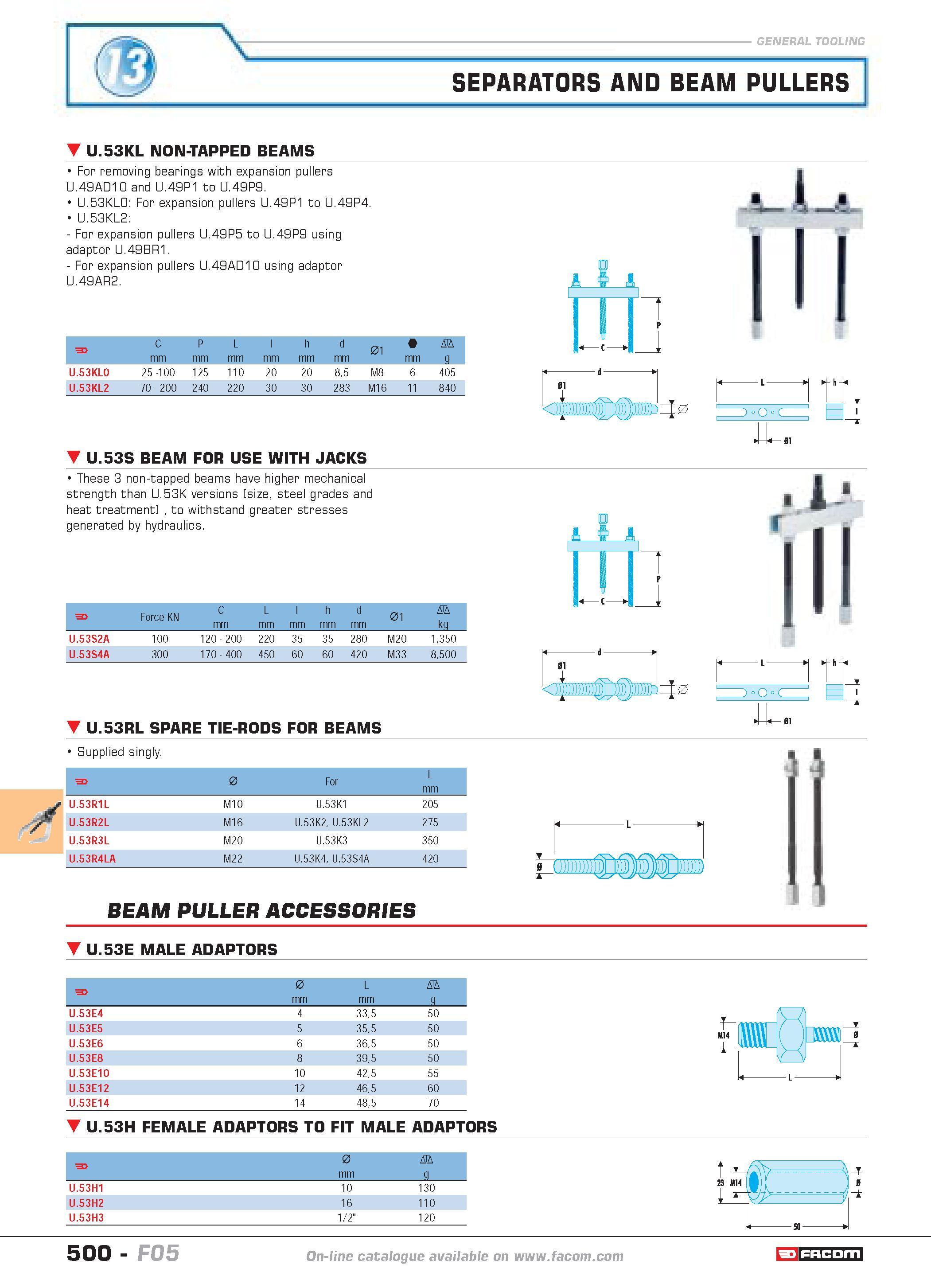

SEPARATORS AND BEAM PULLERS U.53KL NON-TAPPED BEAMS For removing bearings with expansion pullers U.49AD10 and U.49P1 to U.49P9. U.53KL0 For expansion pullers U.49P1 to U.49P4. U.53KL2 For expansion pullers U.49P5 to U.49P9 using adaptor U.49BR1. For expansion pullers U.49AD10 using adaptor U.49AR2. F C mm P mm 01 7 mm D q U.53KL0 25 -100 125 110 20 20 85 M8 6 405 U.53KL2 70 200 240 220 30 30 283 M16 11 840 CO U.53S BEAM FOR USE WITH JACKS It. n. s These 3 non-tapped beams have higher mechanical strength than U.53K versions (size steel grades and heat treatment) to withstand greater stresses generated by hydraulics. F Force KN C mm L mm I mm h mm d mm 01 D kq U.53S2A 100 120 200 220 35 35 280 M20 1350 U.53S4A 300 170 400 450 60 60 420 M33 8500 n U.53RL SPARE TIE-RODS FOR BEAMS 01 Supplied singly. BEAM PULLER ACCESSORIES (MMW U.53E MALE ADAPTORS F 0 mm L mm D q U.53E4 4 335 50 U.53E5 5 355 50 U.53E6 6 365 50 U.53E8 8 395 50 U.53E10 10 425 55 U.53E12 12 465 60 U.53E14 14 485 70 U.53H FEMALE ADAPTORS TO FIT MALE ADAPTORS 0 D mm q U.53H1 10 130 U.53H2 16 110 U.53H3 1/2" 120 500 catalogue FACOM F05
