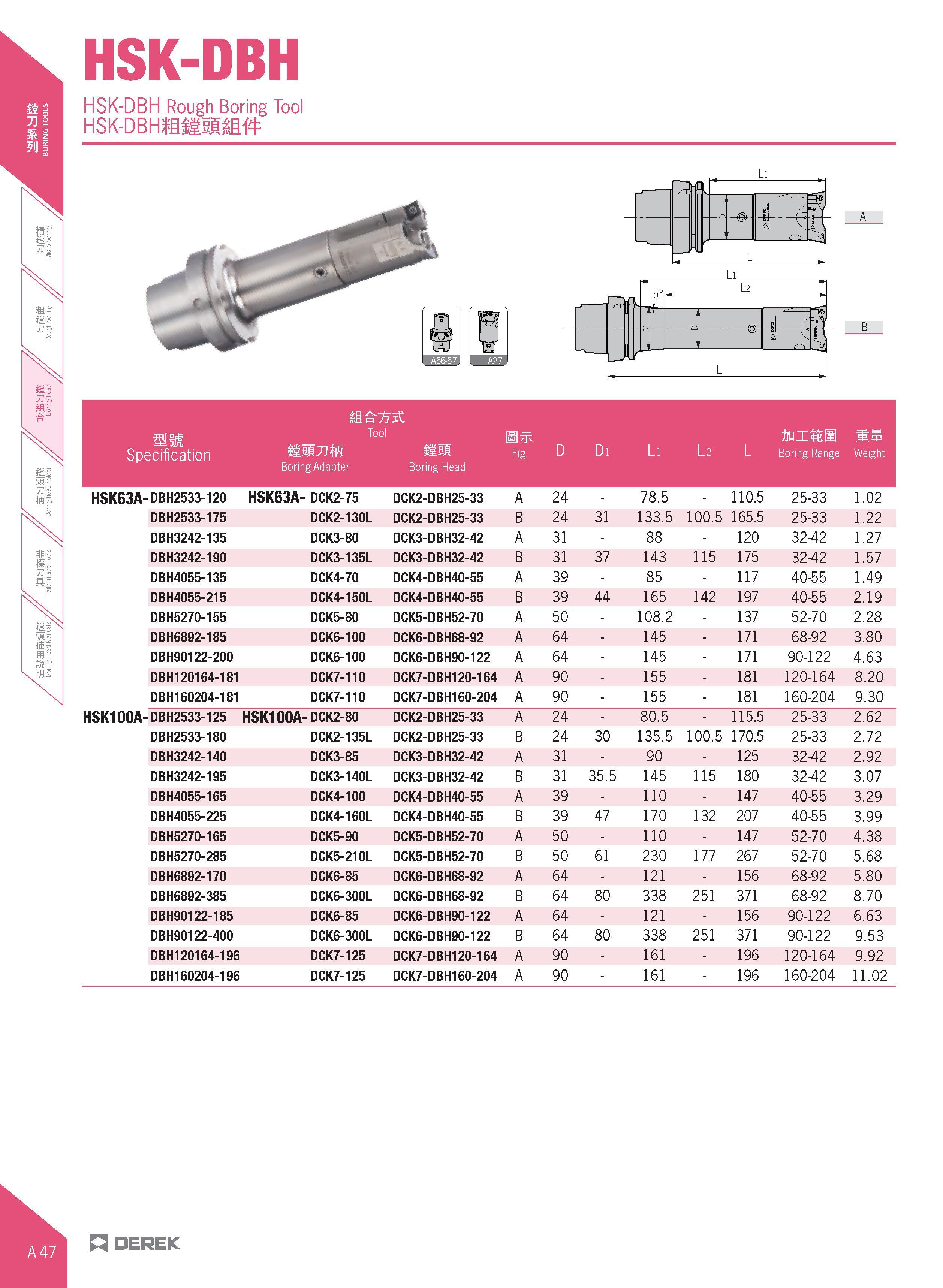

HSK-DBH HSK-DBH Rough Boring Tool HSK-DBHflHsIM mm Specification Tool mmum Boring Adapter Boring Head Fig D Di Li l 2 L An ill IS Boring Range Weight HSK63A- DBH2533-120 HSK63A- DCK2-75 DCK2-DBH25-33 A 24 - 78.5 - 110.5 25-33 1.02 DBH2533-175 DCK2-130L DCK2-DBH25-33 B 24 31 133.5 100.5 165.5 25-33 1.22 DBH3242-135 DCK3-80 DCK3-DBH32-42 A 31 - 88 - 120 32-42 1.27 DBH3242-190 DCK3-135L DCK3-DBH32-42 B 31 37 143 115 175 32-42 1.57 DBH4055-135 DCK4-70 DCK4-DBH40-55 A 39 - 85 - 117 40-55 1.49 DBH4055-215 DCK4-150L DCK4-DBH40-55 B 39 44 165 142 197 40-55 2.19 DBH5270-155 DCK5-80 DCK5-DBH52-70 A 50 - 108.2 - 137 52-70 2.28 DBH6892-185 DCK6-100 DCK6-DBH68-92 A 64 - 145 - 171 68-92 3.80 DBH90122-200 DCK6-100 DCK6-DBH90-122 A 64 - 145 - 171 90-122 4.63 DBH120164-181 DCK7-110 DCK7-DBH120-164 A 90 - 155 - 181 120-164 8.20 DBH160204-181 DCK7-110 DCK7-DBH160-204 A 90 - 155 - 181 160-204 9.30 HSK100A- DBH2533-125 HSK100A- DCK2-80 DCK2-DBH25-33 A 24 - 80.5 - 115.5 25-33 2.62 DBH2533-180 DCK2-135L DCK2-DBH25-33 B 24 30 135.5 100.5 170.5 25-33 2.72 DBH3242-140 DCK3-85 DCK3-DBH32-42 A 31 - 90 - 125 32-42 2.92 DBH3242-195 DCK3-140L DCK3-DBH32-42 B 31 35.5 145 115 180 32-42 3.07 DBH4055-165 DCK4-100 DCK4-DBH40-55 A 39 - 110 - 147 40-55 3.29 DBH4055-225 DCK4-160L DCK4-DBH40-55 B 39 47 170 132 207 40-55 3.99 DBH5270-165 DCK5-90 DCK5-DBH52-70 A 50 - 110 - 147 52-70 4.38 DBH5270-285 DCK5-210L DCK5-DBH52-70 B 50 61 230 177 267 52-70 5.68 DBH6892-170 DCK6-85 DCK6-DBH68-92 A 64 - 121 - 156 68-92 5.80 DBH6892-385 DCK6-300L DCK6-DBH68-92 B 64 80 338 251 371 68-92 8.70 DBH90122-185 DCK6-85 DCK6-DBH90-122 A 64 - 121 - 156 90-122 6.63 DBH90122-400 DCK6-300L DCK6-DBH90-122 B 64 80 338 251 371 90-122 9.53 DBH120164-196 DCK7-125 DCK7-DBH120-164 A 90 - 161 - 196 120-164 9.92 DBH160204-196 DCK7-125 DCK7-DBH160-204 A 90 - 161 - 196 160-204 11.02 H DEREK
