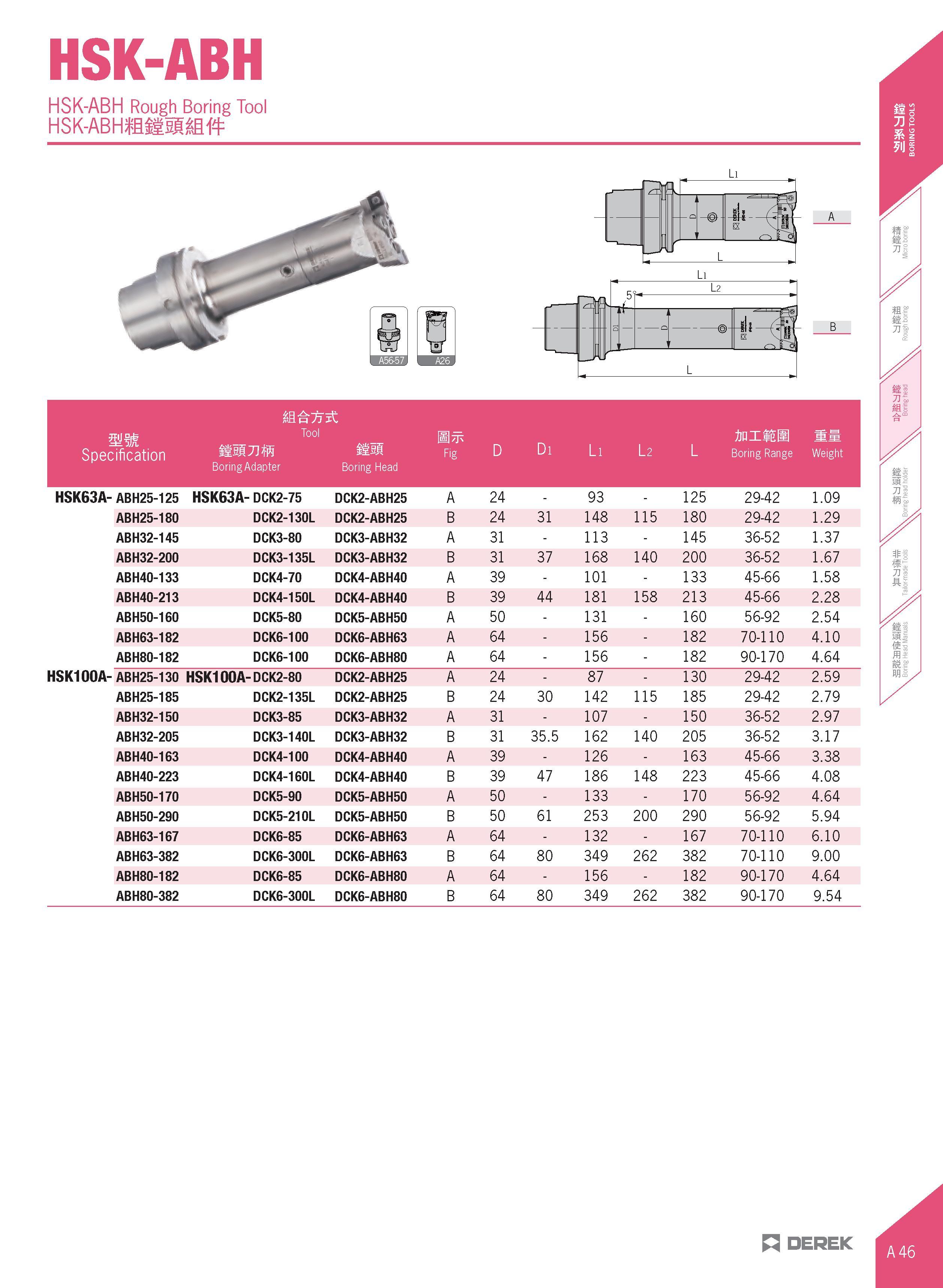

HSK-ABH HSK-ABH Rough Boring Tool HSK-ABH fliisIM mm Specification Tool sissjjffi sin BoringAdapter Boring Head Fig D Di Li l 2 L AnilEM Boring Range Weight HSK63A- ABH25-125 HSK63A- DCK2-75 DCK2-ABH25 A 24 - 93 - 125 29-42 1.09 ABH25-180 DCK2-130L DCK2-ABH25 B 24 31 148 115 180 29-42 1.29 ABH32-145 DCK3-80 DCK3-ABH32 A 31 - 113 - 145 36-52 1.37 ABH32-200 DCK3-135L DCK3-ABH32 B 31 37 168 140 200 36-52 1.67 ABH40-133 DCK4-70 DCK4-ABH40 A 39 - 101 - 133 45-66 1.58 ABH40-213 DCK4-150L DCK4-ABH40 B 39 44 181 158 213 45-66 2.28 ABH50-160 DCK5-80 DCK5-ABH50 A 50 - 131 - 160 56-92 2.54 ABH63-182 DCK6-100 DCK6-ABH63 A 64 - 156 - 182 70-110 4.10 ABH80-182 DCK6-100 DCK6-ABH80 A 64 - 156 - 182 90-170 4.64 HSK100A- ABH25-130 HSK100A- DCK2-80 DCK2-ABH25 A 24 - 87 - 130 29-42 2.59 ABH25-185 DCK2-135L DCK2-ABH25 B 24 30 142 115 185 29-42 2.79 ABH32-150 DCK3-85 DCK3-ABH32 A 31 - 107 - 150 36-52 2.97 ABH32-205 DCK3-140L DCK3-ABH32 B 31 35.5 162 140 205 36-52 3.17 ABH40-163 DCK4-100 DCK4-ABH40 A 39 - 126 - 163 45-66 3.38 ABH40-223 DCK4-160L DCK4-ABH40 B 39 47 186 148 223 45-66 4.08 ABH50-170 DCK5-90 DCK5-ABH50 A 50 - 133 - 170 56-92 4.64 ABH50-290 DCK5-210L DCK5-ABH50 B 50 61 253 200 290 56-92 5.94 ABH63-167 DCK6-85 DCK6-ABH63 A 64 - 132 - 167 70-110 6.10 ABH63-382 DCK6-300L DCK6-ABH63 B 64 80 349 262 382 70-110 9.00 ABH80-182 DCK6-85 DCK6-ABH80 A 64 - 156 - 182 90-170 4.64 ABH80-382 DCK6-300L DCK6-ABH80 B 64 80 349 262 382 90-170 9.54 n DEPEK
