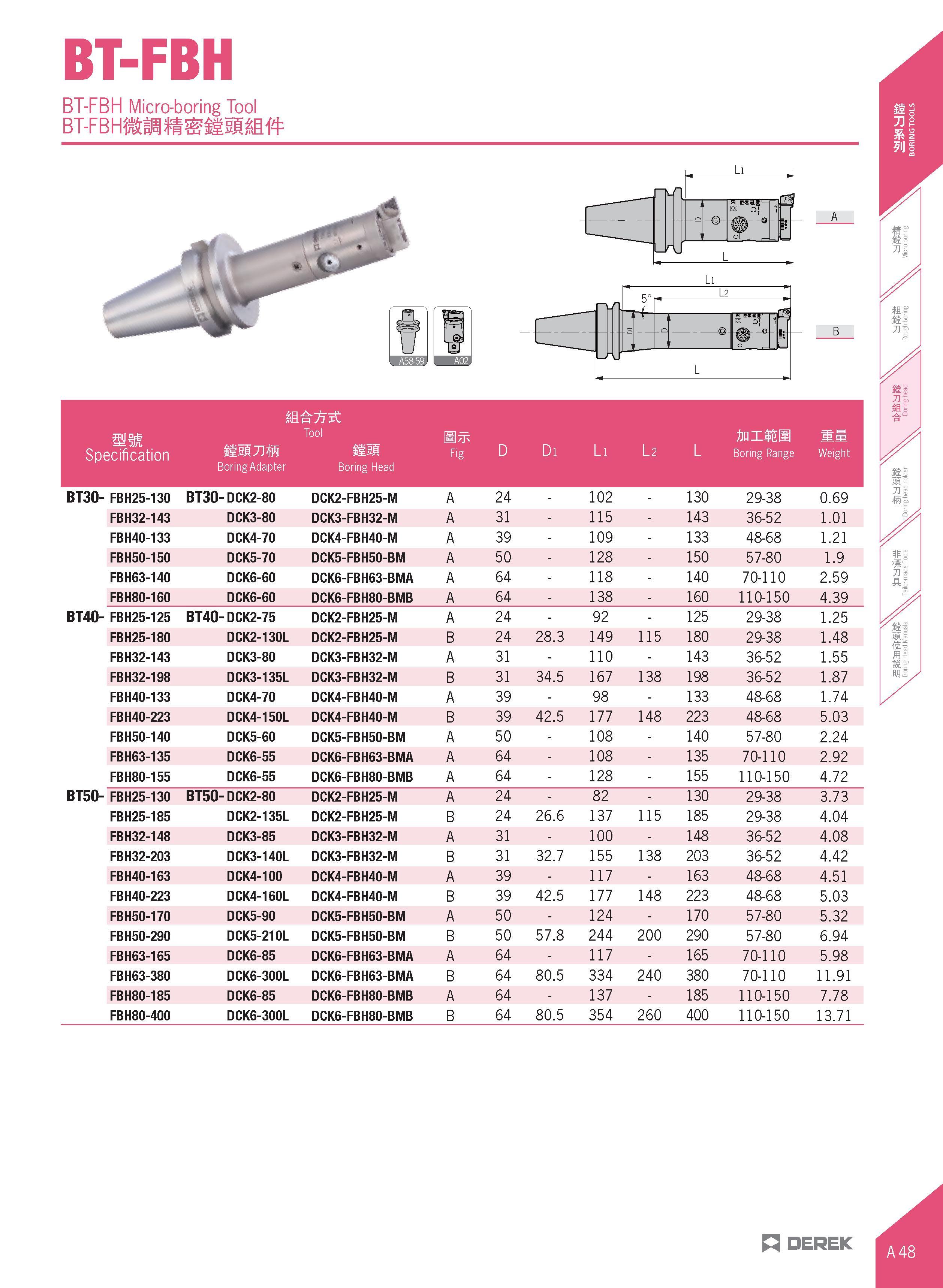

BT-FBH BT-FBH Micro-boring Tool BT-FBHf i£5M mm Specification Tool mmnffi nil BoringAdapter Boring Head B Fig D Di Li l 2 L AnilEM Boring Range Weight BT30- FBH25-130 BT30- DCK2-80 DCK2-FBH25-M A 24 - 102 - 130 29-38 0.69 FBH32-143 DCK3-80 DCK3-FBH32-M A 31 - 115 - 143 36-52 1.01 FBH40-133 DCK4-70 DCK4-FBH40-M A 39 - 109 - 133 48-68 1.21 FBH50-150 DCK5-70 DCK5-FBH50-BM A 50 - 128 - 150 57-80 1.9 FBH63-140 DCK6-60 DCK6-FBH63-BMA A 64 - 118 - 140 70-110 2.59 FBH80-160 DCK6-60 DCK6-FBH80-BMB A 64 - 138 - 160 110-150 4.39 BT40- FBH25-125 BT40- DCK2-75 DCK2-FBH25-M A 24 - 92 - 125 29-38 1.25 FBH25-180 DCK2-130L DCK2-FBH25-M B 24 28.3 149 115 180 29-38 1.48 FBH32-143 DCK3-80 DCK3-FBH32-M A 31 - 110 - 143 36-52 1.55 FBH32-198 DCK3-135L DCK3-FBH32-M B 31 34.5 167 138 198 36-52 1.87 FBH40-133 DCK4-70 DCK4-FBH40-M A 39 - 98 - 133 48-68 1.74 FBH40-223 DCK4-150L DCK4-FBH40-M B 39 42.5 177 148 223 48-68 5.03 FBH50-140 DCK5-60 DCK5-FBH50-BM A 50 - 108 - 140 57-80 2.24 FBH63-135 DCK6-55 DCK6-FBH63-BMA A 64 - 108 - 135 70-110 2.92 FBH80-155 DCK6-55 DCK6-FBH80-BMB A 64 - 128 - 155 110-150 4.72 BT50- FBH25-130 BT50- DCK2-80 DCK2-FBH25-M A 24 - 82 - 130 29-38 3.73 FBH25-185 DCK2-135L DCK2-FBH25-M B 24 26.6 137 115 185 29-38 4.04 FBH32-148 DCK3-85 DCK3-FBH32-M A 31 - 100 - 148 36-52 4.08 FBH32-203 DCK3-140L DCK3-FBH32-M B 31 32.7 155 138 203 36-52 4.42 FBH40-163 DCK4-100 DCK4-FBH40-M A 39 - 117 - 163 48-68 4.51 FBH40-223 DCK4-160L DCK4-FBH40-M B 39 42.5 177 148 223 48-68 5.03 FBH50-170 DCK5-90 DCK5-FBH50-BM A 50 - 124 - 170 57-80 5.32 FBH50-290 DCK5-210L DCK5-FBH50-BM B 50 57.8 244 200 290 57-80 6.94 FBH63-165 DCK6-85 DCK6-FBH63-BMA A 64 - 117 - 165 70-110 5.98 FBH63-380 DCK6-300L DCK6-FBH63-BMA B 64 80.5 334 240 380 70-110 11.91 FBH80-185 DCK6-85 DCK6-FBH80-BMB A 64 - 137 - 185 110-150 7.78 FBH80-400 DCK6-300L DCK6-FBH80-BMB B 64 80.5 354 260 400 110-150 13.71 n DEREK
