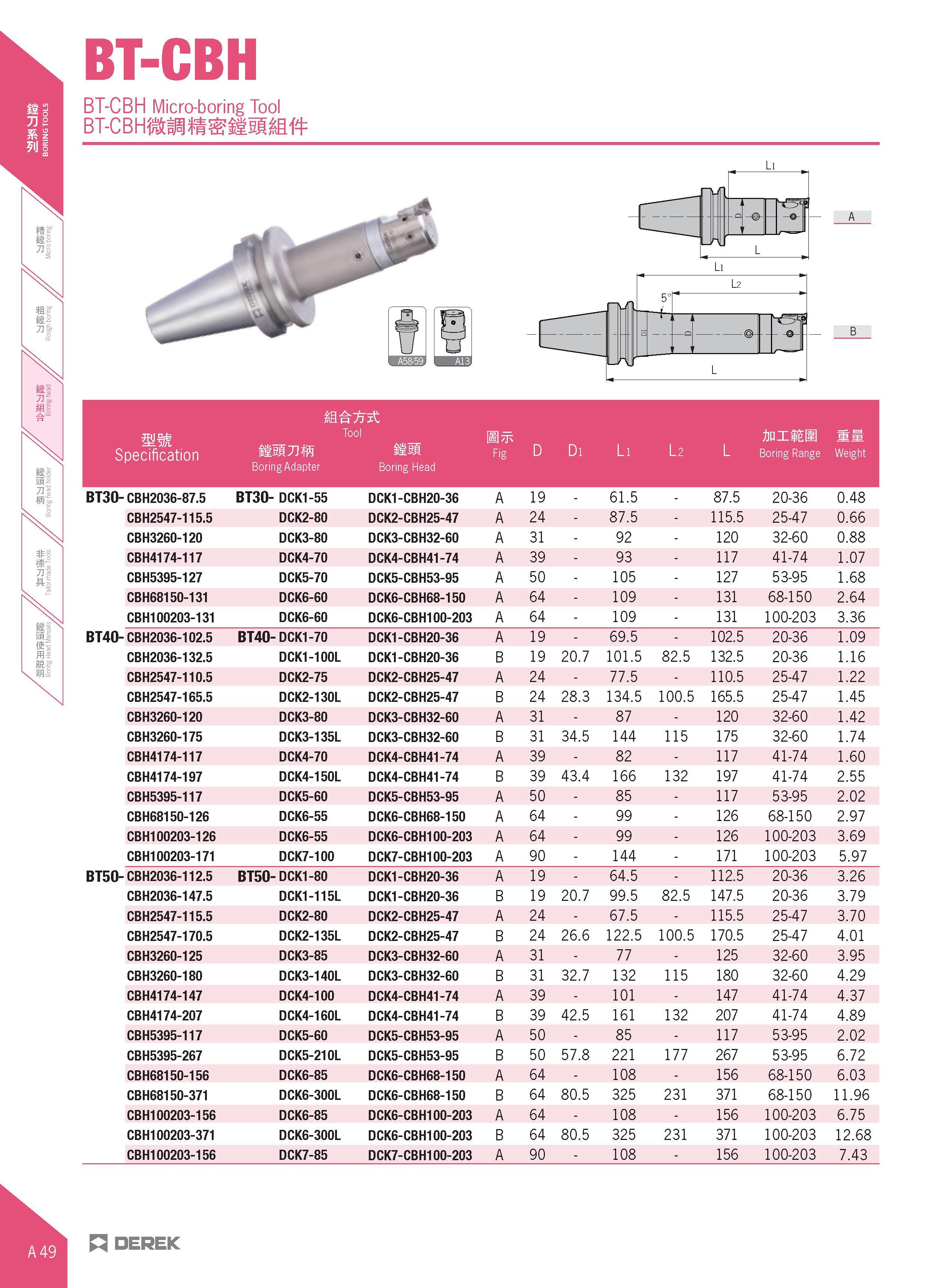

BT-CBH BT-CBH Micro-boring Tool BT-CBTOSm miM mm Specification Tool sissjjffi mm BoringAdapter Boring Head Fig D Di Li l 2 L AnilEM Boring Range Weight BT30- CBH2036-87.5 BT30- DCK1-55 DCK1-CBH20-36 A 19 - 61.5 - 87.5 20-36 0.48 CBH2547-115.5 DCK2-80 DCK2-CBH25-47 A 24 - 87.5 - 115.5 25-47 0.66 CBH3260-120 DCK3-80 DCK3-CBH32-60 A 31 - 92 - 120 32-60 0.88 CBH4174-117 DCK4-70 DCK4-CBH41-74 A 39 - 93 - 117 41-74 1.07 CBH5395-127 DCK5-70 DCK5-CBH53-95 A 50 - 105 - 127 53-95 1.68 CBH68150-131 DCK6-60 DCK6-CBH68-150 A 64 - 109 - 131 68-150 2.64 CBH100203-131 DCK6-60 DCK6-CBH100-203 A 64 - 109 - 131 100-203 3.36 BT40- CBH2036-102.5 BT40- DCK1-70 DCK1-CBH20-36 A 19 - 69.5 - 102.5 20-36 1.09 CBH2036-132.5 DCK1-100L DCK1-CBH20-36 B 19 20.7 101.5 82.5 132.5 20-36 1.16 CBH2547-110.5 DCK2-75 DCK2-CBH25-47 A 24 - 77.5 - 110.5 25-47 1.22 CBH2547-165.5 DCK2-130L DCK2-CBH25-47 B 24 28.3 134.5 100.5 165.5 25-47 1.45 CBH3260-120 DCK3-80 DCK3-CBH32-60 A 31 - 87 - 120 32-60 1.42 CBH3260-175 DCK3-135L DCK3-CBH32-60 B 31 34.5 144 115 175 32-60 1.74 CBH4174-117 DCK4-70 DCK4-CBH41-74 A 39 - 82 - 117 41-74 1.60 CBH4174-197 DCK4-150L DCK4-CBH41-74 B 39 43.4 166 132 197 41-74 2.55 CBH5395-117 DCK5-60 DCK5-CBH53-95 A 50 - 85 - 117 53-95 2.02 CBH68150-126 DCK6-55 DCK6-CBH68-150 A 64 - 99 - 126 68-150 2.97 CBH100203-126 DCK6-55 DCK6-CBH100-203 A 64 - 99 - 126 100-203 3.69 CBH100203-171 DCK7-100 DCK7-CBH100-203 A 90 - 144 - 171 100-203 5.97 BT50- CBH2036-112.5 BT50- DCK1-80 DCK1-CBH20-36 A 19 - 64.5 - 112.5 20-36 3.26 CBH2036-147.5 DCK1-115L DCK1-CBH20-36 B 19 20.7 99.5 82.5 147.5 20-36 3.79 CBH2547-115.5 DCK2-80 DCK2-CBH25-47 A 24 - 67.5 - 115.5 25-47 3.70 CBH2547-170.5 DCK2-135L DCK2-CBH25-47 B 24 26.6 122.5 100.5 170.5 25-47 4.01 CBH3260-125 DCK3-85 DCK3-CBH32-60 A 31 - 77 - 125 32-60 3.95 CBH3260-180 DCK3-140L DCK3-CBH32-60 B 31 32.7 132 115 180 32-60 4.29 CBH4174-147 DCK4-100 DCK4-CBH41-74 A 39 - 101 - 147 41-74 4.37 CBH4174-207 DCK4-160L DCK4-CBH41-74 B 39 42.5 161 132 207 41-74 4.89 CBH5395-117 DCK5-60 DCK5-CBH53-95 A 50 - 85 - 117 53-95 2.02 CBH5395-267 DCK5-210L DCK5-CBH53-95 B 50 57.8 221 177 267 53-95 6.72 CBH68150-156 DCK6-85 DCK6-CBH68-150 A 64 - 108 - 156 68-150 6.03 CBH68150-371 DCK6-300L DCK6-CBH68-150 B 64 80.5 325 231 371 68-150 11.96 CBH100203-156 DCK6-85 DCK6-CBH100-203 A 64 - 108 - 156 100-203 6.75 CBH100203-371 DCK6-300L DCK6-CBH100-203 B 64 80.5 325 231 371 100-203 12.68 CBH100203-156 DCK7-85 DCK7-CBH100-203 A 90 - 108 - 156 100-203 7.43 ZZ DEREK
