81 Каталог DEREK 2017 Режущий инструмент и оснастка инструментальная для станков Стр.A50

Каталог DEREK 2017 Инструмент и оснастка для станков Стр. A50 0081 Lab2u

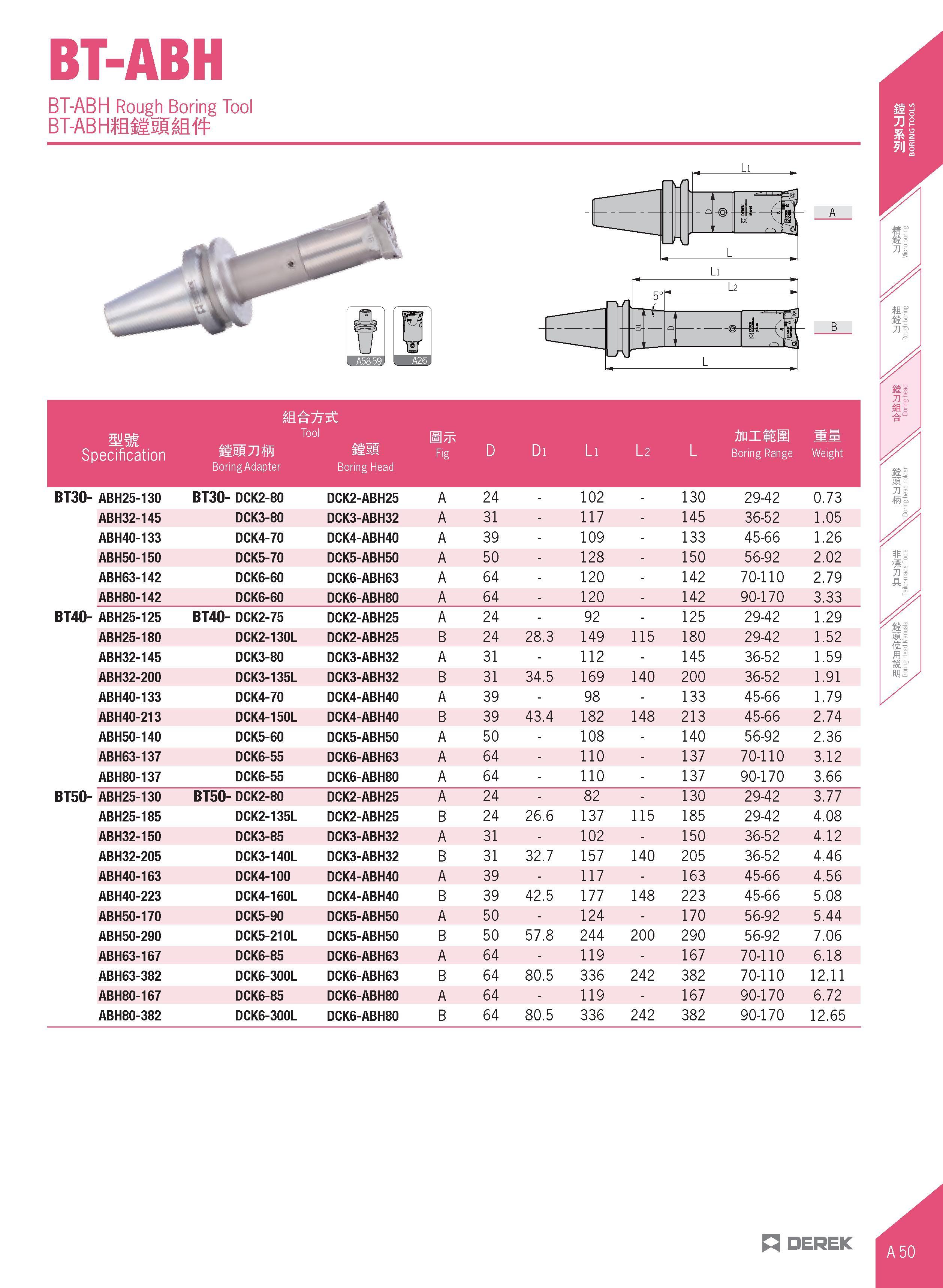

BT-ABH BT-ABH Rough Boring Tool BT-ABHffiiisIM mm Specification Tool mmum BoringAdapter Boring Head Fig D Di Li l 2 L AnilEM Boring Range Weight BT30- ABH25-130 BT30- DCK2-80 DCK2-ABH25 A 24 - 102 - 130 29-42 0.73 ABH32-145 DCK3-80 DCK3-ABH32 A 31 - 117 - 145 36-52 1.05 ABH40-133 DCK4-70 DCK4-ABH40 A 39 - 109 - 133 45-66 1.26 ABH50-150 DCK5-70 DCK5-ABH50 A 50 - 128 - 150 56-92 2.02 ABH63-142 DCK6-60 DCK6-ABH63 A 64 - 120 - 142 70-110 2.79 ABH80-142 DCK6-60 DCK6-ABH80 A 64 - 120 - 142 90-170 3.33 BT40- ABH25-125 BT40- DCK2-75 DCK2-ABH25 A 24 - 92 - 125 29-42 1.29 ABH25-180 DCK2-130L DCK2-ABH25 B 24 28.3 149 115 180 29-42 1.52 ABH32-145 DCK3-80 DCK3-ABH32 A 31 - 112 - 145 36-52 1.59 ABH32-200 DCK3-135L DCK3-ABH32 B 31 34.5 169 140 200 36-52 1.91 ABH40-133 DCK4-70 DCK4-ABH40 A 39 - 98 - 133 45-66 1.79 ABH40-213 DCK4-150L DCK4-ABH40 B 39 43.4 182 148 213 45-66 2.74 ABH50-140 DCK5-60 DCK5-ABH50 A 50 - 108 - 140 56-92 2.36 ABH63-137 DCK6-55 DCK6-ABH63 A 64 - 110 - 137 70-110 3.12 ABH80-137 DCK6-55 DCK6-ABH80 A 64 - 110 - 137 90-170 3.66 BT50- ABH25-130 BT50- DCK2-80 DCK2-ABH25 A 24 - 82 - 130 29-42 3.77 ABH25-185 DCK2-135L DCK2-ABH25 B 24 26.6 137 115 185 29-42 4.08 ABH32-150 DCK3-85 DCK3-ABH32 A 31 - 102 - 150 36-52 4.12 ABH32-205 DCK3-140L DCK3-ABH32 B 31 32.7 157 140 205 36-52 4.46 ABH40-163 DCK4-100 DCK4-ABH40 A 39 - 117 - 163 45-66 4.56 ABH40-223 DCK4-160L DCK4-ABH40 B 39 42.5 177 148 223 45-66 5.08 ABH50-170 DCK5-90 DCK5-ABH50 A 50 - 124 - 170 56-92 5.44 ABH50-290 DCK5-210L DCK5-ABH50 B 50 57.8 244 200 290 56-92 7.06 ABH63-167 DCK6-85 DCK6-ABH63 A 64 - 119 - 167 70-110 6.18 ABH63-382 DCK6-300L DCK6-ABH63 B 64 80.5 336 242 382 70-110 12.11 ABH80-167 DCK6-85 DCK6-ABH80 A 64 - 119 - 167 90-170 6.72 ABH80-382 DCK6-300L DCK6-ABH80 B 64 80.5 336 242 382 90-170 12.65 n DEREK
