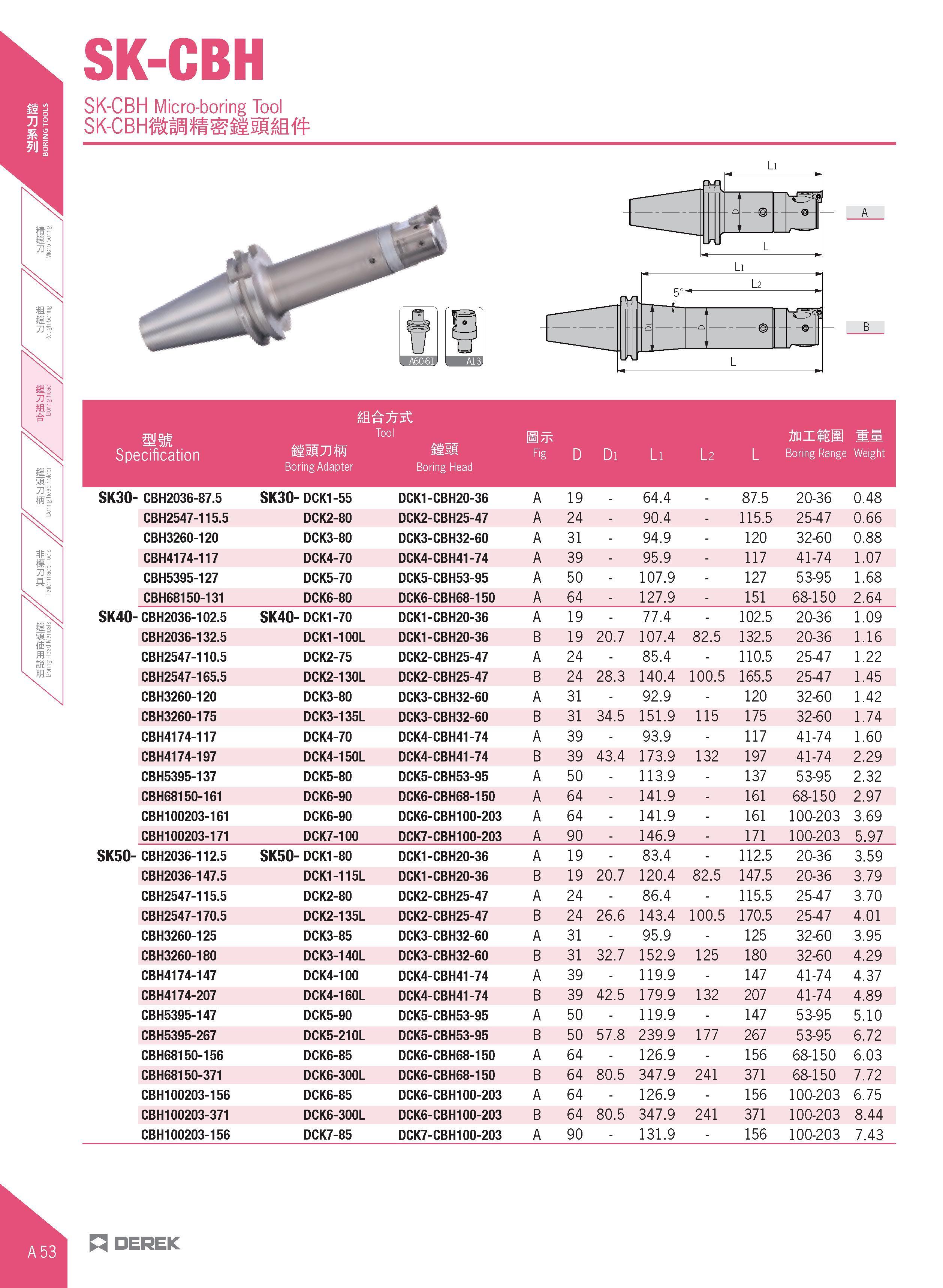

SK-CBH SK-CBH Micro-boring Tool SK-CBHfS£ i£5M Li mm Specification Tool sissjjffi mm Boring Adapter Boring Head Fig D Di Li l 2 L AnilEM 11 Boring Range Weight SK30- CBH2036-87.5 SK30- DCK1-55 DCK1-CBH20-36 A 19 - 64.4 - 87.5 20-36 0.48 CBH2547-115.5 DCK2-80 DCK2-CBH25-47 A 24 - 90.4 - 115.5 25-47 0.66 CBH3260-120 DCK3-80 DCK3-CBH32-60 A 31 - 94.9 - 120 32-60 0.88 CBH4174-117 DCK4-70 DCK4-CBH41-74 A 39 - 95.9 - 117 41-74 1.07 CBH5395-127 DCK5-70 DCK5-CBH53-95 A 50 - 107.9 - 127 53-95 1.68 CBH68150-131 DCK6-80 DCK6-CBH68-150 A 64 - 127.9 - 151 68-150 2.64 SK40- CBH2036-102.5 SK40- DCK1-70 DCK1-CBH20-36 A 19 - 77.4 - 102.5 20-36 1.09 CBH2036-132.5 DCK1-100L DCK1-CBH20-36 B 19 20.7 107.4 82.5 132.5 20-36 1.16 CBH2547-110.5 DCK2-75 DCK2-CBH25-47 A 24 - 85.4 - 110.5 25-47 1.22 CBH2547-165.5 DCK2-130L DCK2-CBH25-47 B 24 28.3 140.4 100.5 165.5 25-47 1.45 CBH3260-120 DCK3-80 DCK3-CBH32-60 A 31 - 92.9 - 120 32-60 1.42 CBH3260-175 DCK3-135L DCK3-CBH32-60 B 31 34.5 151.9 115 175 32-60 1.74 CBH4174-117 DCK4-70 DCK4-CBH41-74 A 39 - 93.9 - 117 41-74 1.60 CBH4174-197 DCK4-150L DCK4-CBH41-74 B 39 43.4 173.9 132 197 41-74 2.29 CBH5395-137 DCK5-80 DCK5-CBH53-95 A 50 - 113.9 - 137 53-95 2.32 CBH68150-161 DCK6-90 DCK6-CBH68-150 A 64 - 141.9 - 161 68-150 2.97 CBH100203-161 DCK6-90 DCK6-CBH100-203 A 64 - 141.9 - 161 100-203 3.69 CBH100203-171 DCK7-100 DCK7-CBH100-203 A 90 - 146.9 - 171 100-203 5.97 SK50- CBH2036-112.5 SK50- DCK1-80 DCK1-CBH20-36 A 19 - 83.4 - 112.5 20-36 3.59 CBH2036-147.5 DCK1-115L DCK1-CBH20-36 B 19 20.7 120.4 82.5 147.5 20-36 3.79 CBH2547-115.5 DCK2-80 DCK2-CBH25-47 A 24 - 86.4 - 115.5 25-47 3.70 CBH2547-170.5 DCK2-135L DCK2-CBH25-47 B 24 26.6 143.4 100.5 170.5 25-47 4.01 CBH3260-125 DCK3-85 DCK3-CBH32-60 A 31 - 95.9 - 125 32-60 3.95 CBH3260-180 DCK3-140L DCK3-CBH32-60 B 31 32.7 152.9 125 180 32-60 4.29 CBH4174-147 DCK4-100 DCK4-CBH41-74 A 39 - 119.9 - 147 41-74 4.37 CBH4174-207 DCK4-160L DCK4-CBH41-74 B 39 42.5 179.9 132 207 41-74 4.89 CBH5395-147 DCK5-90 DCK5-CBH53-95 A 50 - 119.9 - 147 53-95 5.10 CBH5395-267 DCK5-210L DCK5-CBH53-95 B 50 57.8 239.9 177 267 53-95 6.72 CBH68150-156 DCK6-85 DCK6-CBH68-150 A 64 - 126.9 - 156 68-150 6.03 CBH68150-371 DCK6-300L DCK6-CBH68-150 B 64 80.5 347.9 241 371 68-150 7.72 CBH100203-156 DCK6-85 DCK6-CBH100-203 A 64 - 126.9 - 156 100-203 6.75 CBH100203-371 DCK6-300L DCK6-CBH100-203 B 64 80.5 347.9 241 371 100-203 8.44 CBH100203-156 DCK7-85 DCK7-CBH100-203 A 90 - 131.9 - 156 100-203 7.43 H DEREK
