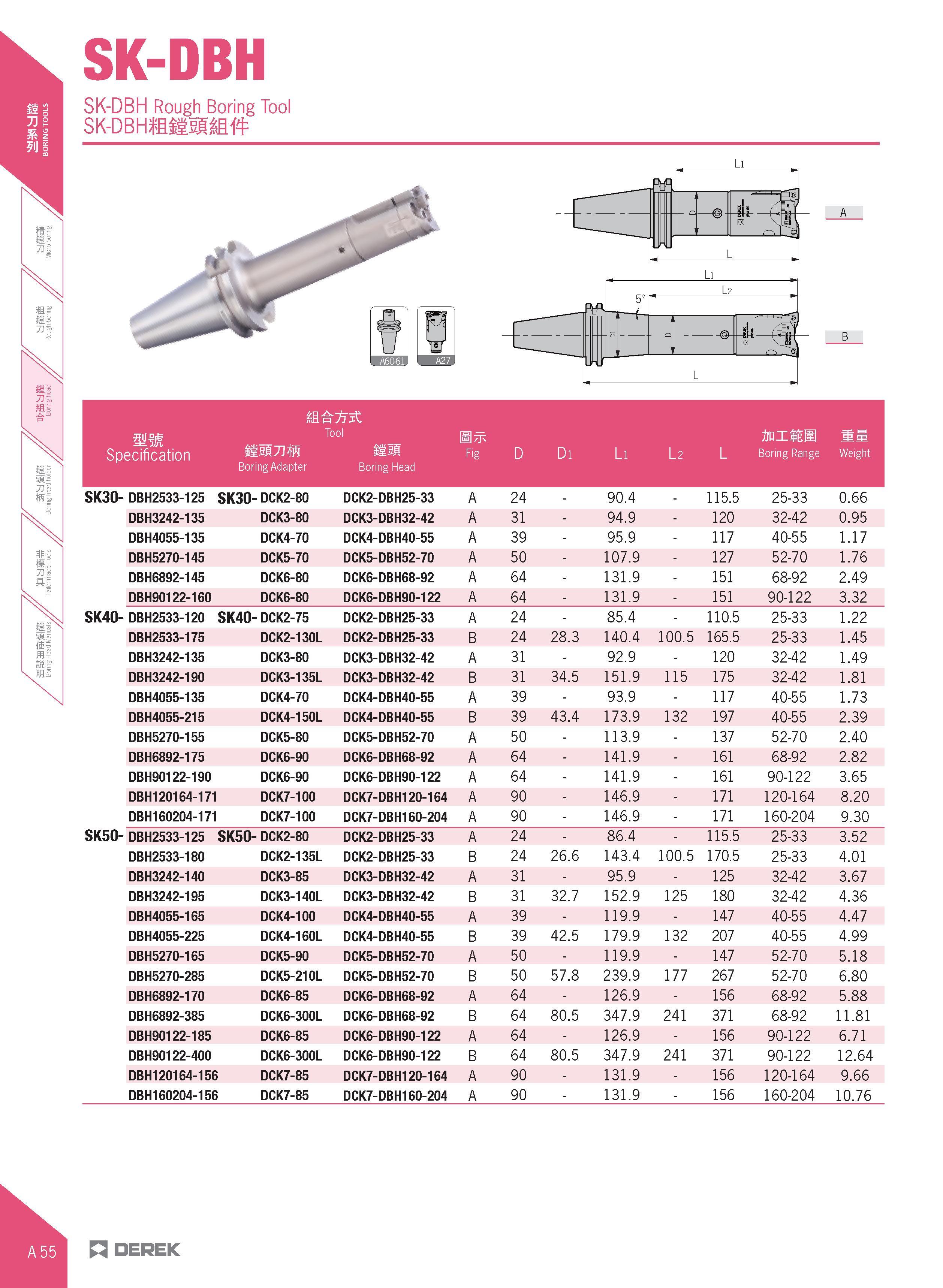

SK-DBH SK-DBH Rough Boring Tool SK-DBHffllfsIM mm - T001 Specification sf Boring Adapter Boring Head Fig D Di Li l 2 L AnilEM Boring Range Weight SK30- DBH2533-125 SK30- DCK2-80 DCK2-DBH25-33 A 24 - 90.4 - 115.5 25-33 0.66 DBH3242-135 DCK3-80 DCK3-DBH32-42 A 31 - 94.9 - 120 32-42 0.95 DBH4055-135 DCK4-70 DCK4-DBH40-55 A 39 - 95.9 - 117 40-55 1.17 DBH5270-145 DCK5-70 DCK5-DBH52-70 A 50 - 107.9 - 127 52-70 1.76 DBH6892-145 DCK6-80 DCK6-DBH68-92 A 64 - 131.9 - 151 68-92 2.49 DBH90122-160 DCK6-80 DCK6-DBH90-122 A 64 - 131.9 - 151 90-122 3.32 SK40- DBH2533-120 SK40- DCK2-75 DCK2-DBH25-33 A 24 - 85.4 - 110.5 25-33 1.22 DBH2533-175 DCK2-130L DCK2-DBH25-33 B 24 28.3 140.4 100.5 165.5 25-33 1.45 DBH3242-135 DCK3-80 DCK3-DBH32-42 A 31 - 92.9 - 120 32-42 1.49 DBH3242-190 DCK3-135L DCK3-DBH32-42 B 31 34.5 151.9 115 175 32-42 1.81 DBH4055-135 DCK4-70 DCK4-DBH40-55 A 39 - 93.9 - 117 40-55 1.73 DBH4055-215 DCK4-150L DCK4-DBH40-55 B 39 43.4 173.9 132 197 40-55 2.39 DBH5270-155 DCK5-80 DCK5-DBH52-70 A 50 - 113.9 - 137 52-70 2.40 DBH6892-175 DCK6-90 DCK6-DBH68-92 A 64 - 141.9 - 161 68-92 2.82 DBH90122-190 DCK6-90 DCK6-DBH90-122 A 64 - 141.9 - 161 90-122 3.65 DBH120164-171 DCK7-100 DCK7-DBH120-164 A 90 - 146.9 - 171 120-164 8.20 DBH160204-171 DCK7-100 DCK7-DBH160-204 A 90 - 146.9 - 171 160-204 9.30 SK50- DBH2533-125 SK50- DCK2-80 DCK2-DBH25-33 A 24 - 86.4 - 115.5 25-33 3.52 DBH2533-180 DCK2-135L DCK2-DBH25-33 B 24 26.6 143.4 100.5 170.5 25-33 4.01 DBH3242-140 DCK3-85 DCK3-DBH32-42 A 31 - 95.9 - 125 32-42 3.67 DBH3242-195 DCK3-140L DCK3-DBH32-42 B 31 32.7 152.9 125 180 32-42 4.36 DBH4055-165 DCK4-100 DCK4-DBH40-55 A 39 - 119.9 - 147 40-55 4.47 DBH4055-225 DCK4-160L DCK4-DBH40-55 B 39 42.5 179.9 132 207 40-55 4.99 DBH5270-165 DCK5-90 DCK5-DBH52-70 A 50 - 119.9 - 147 52-70 5.18 DBH5270-285 DCK5-210L DCK5-DBH52-70 B 50 57.8 239.9 177 267 52-70 6.80 DBH6892-170 DCK6-85 DCK6-DBH68-92 A 64 - 126.9 - 156 68-92 5.88 DBH6892-385 DCK6-300L DCK6-DBH68-92 B 64 80.5 347.9 241 371 68-92 11.81 DBH90122-185 DCK6-85 DCK6-DBH90-122 A 64 - 126.9 - 156 90-122 6.71 DBH90122-400 DCK6-300L DCK6-DBH90-122 B 64 80.5 347.9 241 371 90-122 12.64 DBH120164-156 DCK7-85 DCK7-DBH120-164 A 90 - 131.9 - 156 120-164 9.66 DBH160204-156 DCK7-85 DCK7-DBH160-204 A 90 - 131.9 - 156 160-204 10.76 H DEREK Jgiiai
