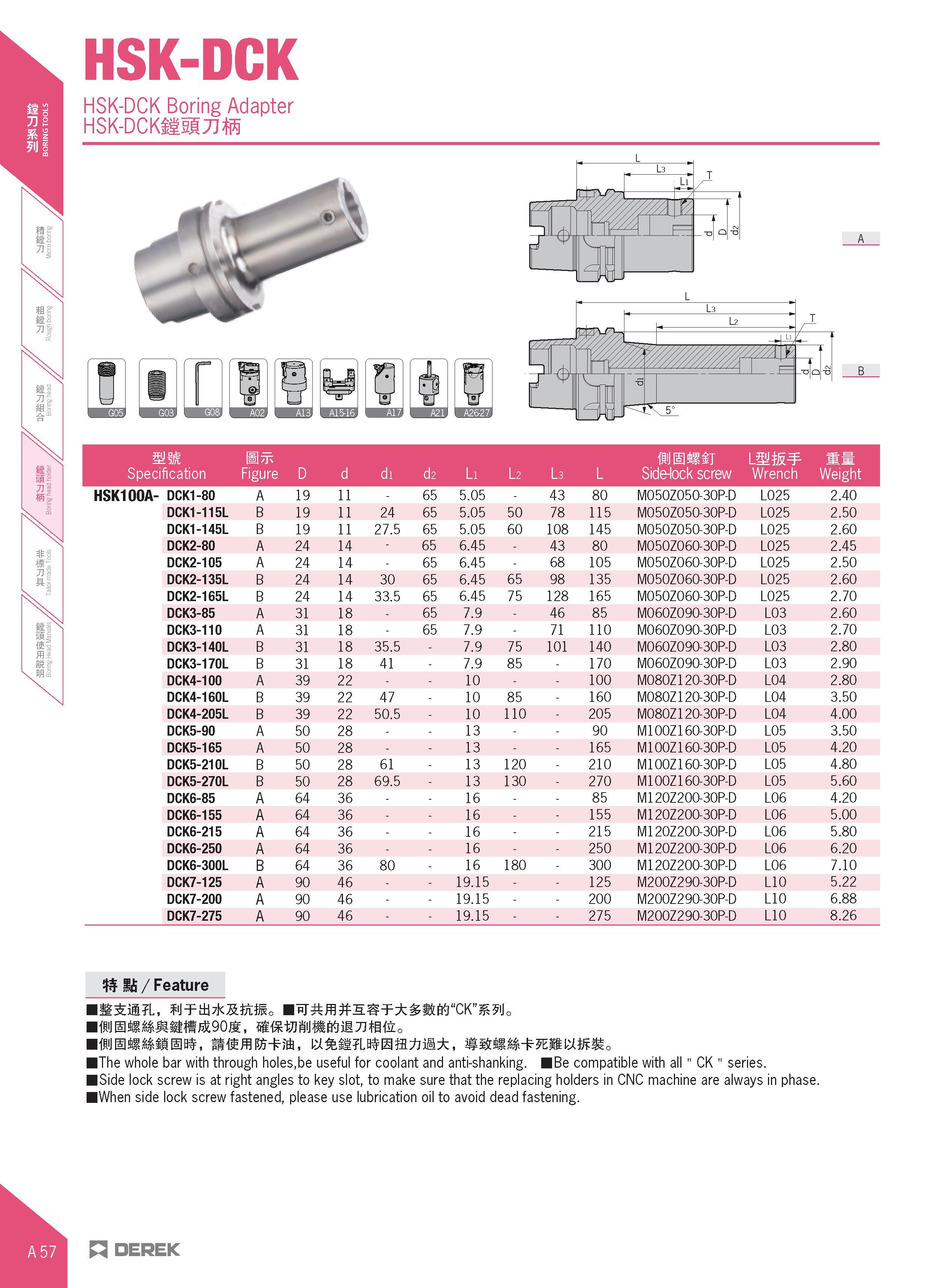

HSK-DCK HSK-DCK Boring Adapter usK-Dcmmum B HT Specification Figure D d di d2 Li l 2 L3 L flJHiftT Side-lock screw imm Wrench Weight HSK100A- DCK1-80 A 19 11 - 65 5.05 - 43 80 M050Z050-30P-D L025 2.40 DCK1-115L B 19 11 24 65 5.05 50 78 115 M050Z050-30P-D L025 2.50 DCK1-145L B 19 11 27.5 65 5.05 60 108 145 M050Z050-30P-D L025 2.60 DCK2-80 A 24 14 - 65 6.45 - 43 80 M050Z060-30P-D L025 2.45 DCK2-105 A 24 14 - 65 6.45 - 68 105 M050Z060-30P-D L025 2.50 DCK2-135L B 24 14 30 65 6.45 65 98 135 M050Z060-30P-D L025 2.60 DCK2-165L B 24 14 33.5 65 6.45 75 128 165 M050Z060-30P-D L025 2.70 DCK3-85 A 31 18 - 65 7.9 - 46 85 M060Z090-30P-D L03 2.60 DCK3-110 A 31 18 - 65 7.9 - 71 110 M060Z090-30P-D L03 2.70 DCK3-140L B 31 18 35.5 - 7.9 75 101 140 M060Z090-30P-D L03 2.80 DCK3-170L B 31 18 41 - 7.9 85 - 170 M060Z090-30P-D L03 2.90 DCK4-100 A 39 22 10 100 M080Z120-30P-D L04 2.80 DCK4-160L B 39 22 47 - 10 85 - 160 M080Z120-30P-D L04 3.50 DCK4-205L B 39 22 50.5 - 10 110 - 205 M080Z120-30P-D L04 4.00 DCK5-90 A 50 28 13 90 M100Z160-30P-D L05 3.50 DCK5-165 A 50 28 13 165 M100Z160-30P-D L05 4.20 DCK5-210L B 50 28 61 - 13 120 - 210 M100Z160-30P-D L05 4.80 DCK5-270L B 50 28 69.5 - 13 130 - 270 M100Z160-30P-D L05 5.60 DCK6-85 A 64 36 16 85 M120Z200-30P-D L06 4.20 DCK6-155 A 64 36 16 155 M120Z200-30P-D L06 5.00 DCK6-215 A 64 36 16 215 M120Z200-30P-D L06 5.80 DCK6-250 A 64 36 16 250 M120Z200-30P-D L06 6.20 DCK6-300L B 64 36 80 - 16 180 - 300 M120Z200-30P-D L06 7.10 DCK7-125 A 90 46 19.15 125 M200Z290-30P-D no 5.22 DCK7-200 A 90 46 19.15 200 M200Z290-30P-D L10 6.88 DCK7-275 A 90 46 19.15 275 M200Z290-30P-D L10 8.26 S IS / Feature iijj 4iifaattjs90js, The whole bar with through holes.be useful for coolant and anti-shanking. BBe compatible with all " CK " series. Side lock screw is at right angles to key slot, to make sure that the replacing holders in CNC machine are always in phase. When side lock screw fastened, please use lubrication oil to avoid dead fastening. H DEREK
