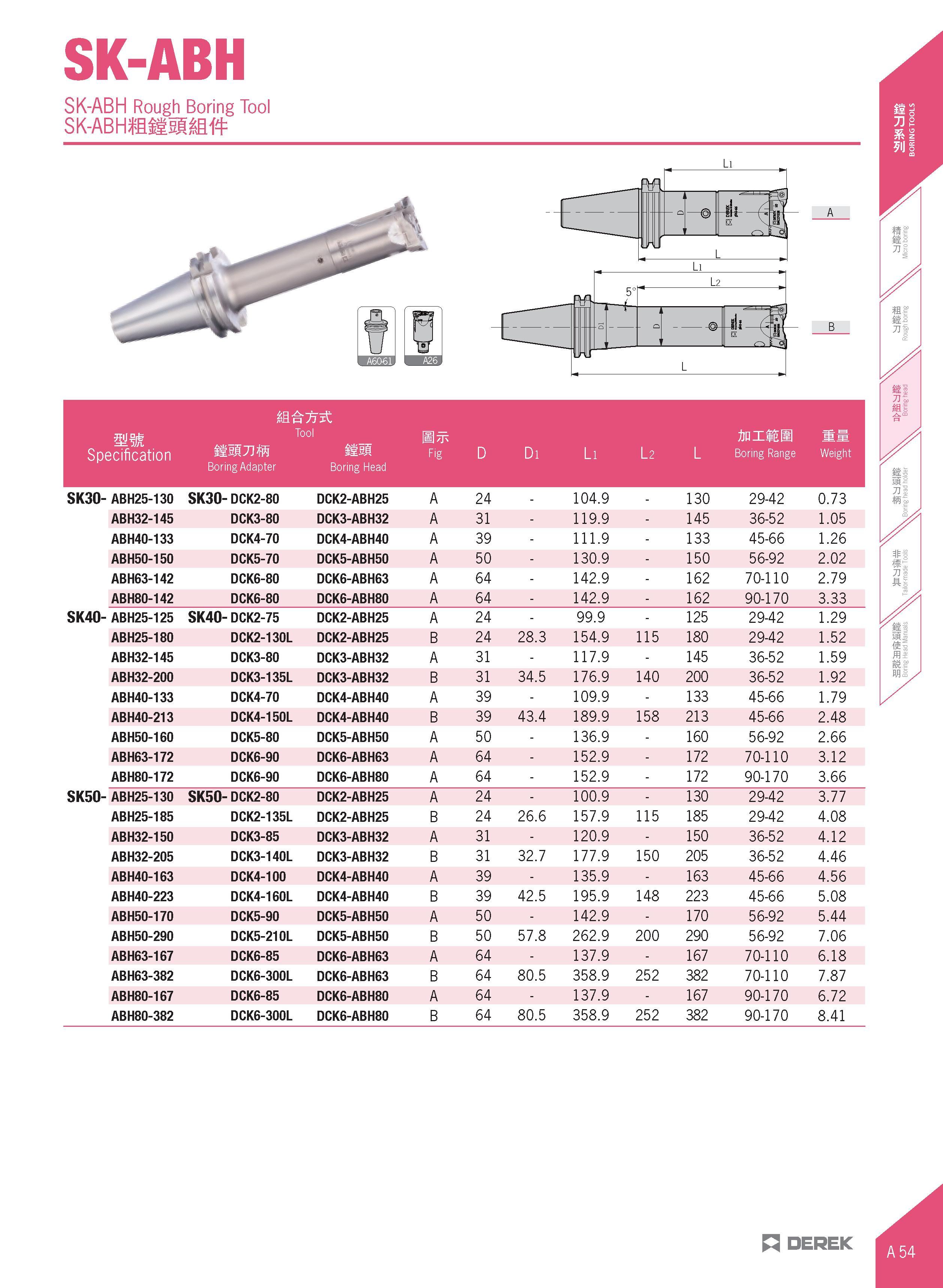

SK-ABH SK-ABH Rough Boring Tool SK-ABHffiiisIM mm Specification Tool mmum Boring Adapter Boring Head Fig D Di Li l 2 L An ill IS Boring Range Weight SK30- ABH25-130 SK30- DCK2-80 DCK2-ABH25 A 24 - 104.9 - 130 29-42 0.73 ABH32-145 DCK3-80 DCK3-ABH32 A 31 - 119.9 - 145 36-52 1.05 ABH40-133 DCK4-70 DCK4-ABH40 A 39 - 111.9 - 133 45-66 1.26 ABH50-150 DCK5-70 DCK5-ABH50 A 50 - 130.9 - 150 56-92 2.02 ABH63-142 DCK6-80 DCK6-ABH63 A 64 - 142.9 - 162 70-110 2.79 ABH80-142 DCK6-80 DCK6-ABH80 A 64 - 142.9 - 162 90-170 3.33 SK40- ABH25-125 SK40- DCK2-75 DCK2-ABH25 A 24 - 99.9 - 125 29-42 1.29 ABH25-180 DCK2-130L DCK2-ABH25 B 24 28.3 154.9 115 180 29-42 1.52 ABH32-145 DCK3-80 DCK3-ABH32 A 31 - 117.9 - 145 36-52 1.59 ABH32-200 DCK3-135L DCK3-ABH32 B 31 34.5 176.9 140 200 36-52 1.92 ABH40-133 DCK4-70 DCK4-ABH40 A 39 - 109.9 - 133 45-66 1.79 ABH40-213 DCK4-150L DCK4-ABH40 B 39 43.4 189.9 158 213 45-66 2.48 ABH50-160 DCK5-80 DCK5-ABH50 A 50 - 136.9 - 160 56-92 2.66 ABH63-172 DCK6-90 DCK6-ABH63 A 64 - 152.9 - 172 70-110 3.12 ABH80-172 DCK6-90 DCK6-ABH80 A 64 - 152.9 - 172 90-170 3.66 SK50- ABH25-130 SK50- DCK2-80 DCK2-ABH25 A 24 - 100.9 - 130 29-42 3.77 ABH25-185 DCK2-135L DCK2-ABH25 B 24 26.6 157.9 115 185 29-42 4.08 ABH32-150 DCK3-85 DCK3-ABH32 A 31 - 120.9 - 150 36-52 4.12 ABH32-205 DCK3-140L DCK3-ABH32 B 31 32.7 177.9 150 205 36-52 4.46 ABH40-163 DCK4-100 DCK4-ABH40 A 39 - 135.9 - 163 45-66 4.56 ABH40-223 DCK4-160L DCK4-ABH40 B 39 42.5 195.9 148 223 45-66 5.08 ABH50-170 DCK5-90 DCK5-ABH50 A 50 - 142.9 - 170 56-92 5.44 ABH50-290 DCK5-210L DCK5-ABH50 B 50 57.8 262.9 200 290 56-92 7.06 ABH63-167 DCK6-85 DCK6-ABH63 A 64 - 137.9 - 167 70-110 6.18 ABH63-382 DCK6-300L DCK6-ABH63 B 64 80.5 358.9 252 382 70-110 7.87 ABH80-167 DCK6-85 DCK6-ABH80 A 64 - 137.9 - 167 90-170 6.72 ABH80-382 DCK6-300L DCK6-ABH80 B 64 80.5 358.9 252 382 90-170 8.41 agiiai n DEPEK
