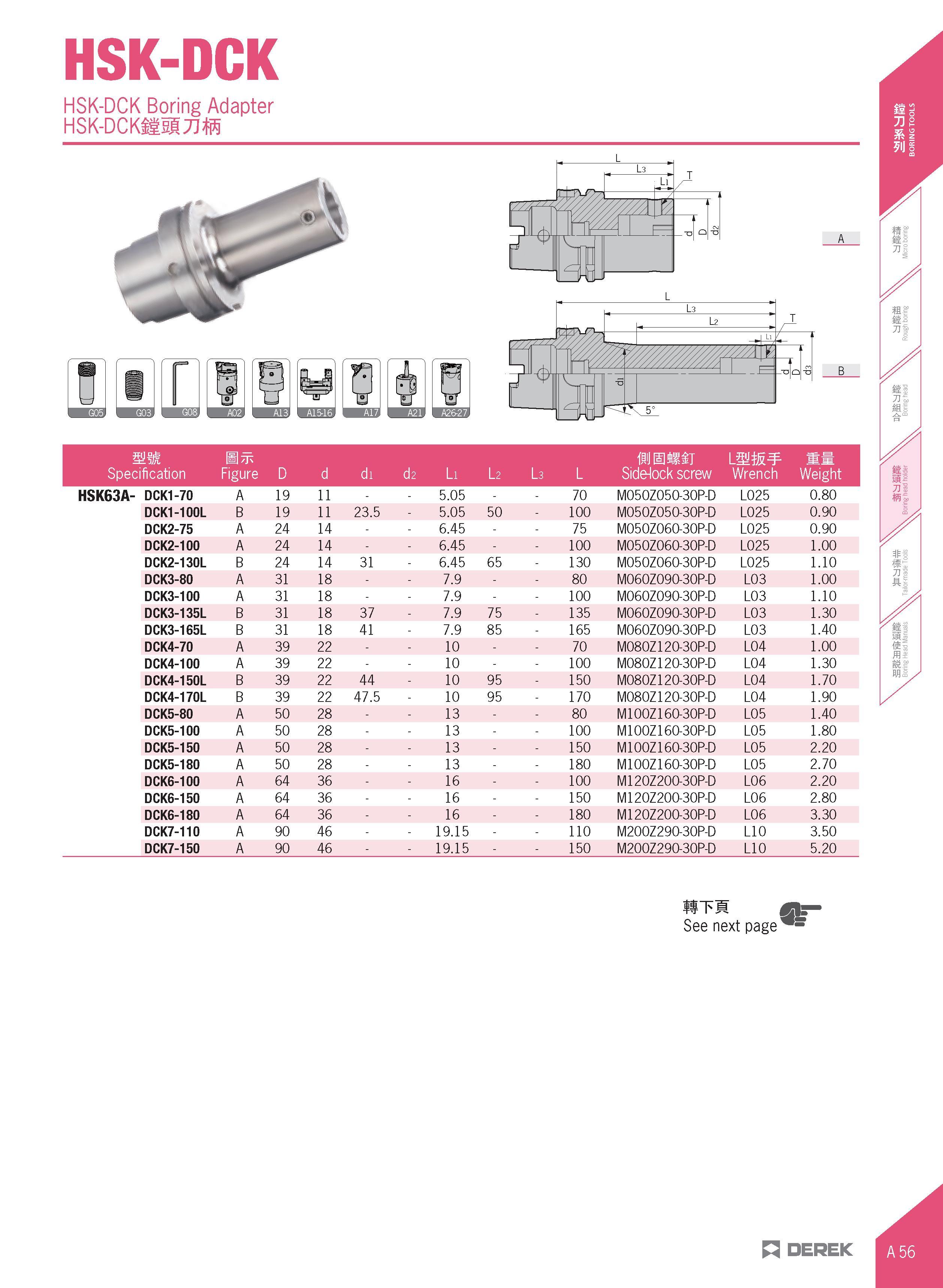

HSK-DCK HSK-DCK Boring Adapter usK-Dcmmum 0 - Specification Figure D d di d2 Li \-2 Ls L mmmu Side-lock screw Liifif Wrench Weight HSK63A- DCK1-70 A 19 11 - 5.05 - 70 M050Z050-30P-D L025 0.80 DCK1-100L B 19 11 23.5 5.05 50 100 M050Z050-30P-D L025 0.90 DCK2-75 A 24 14 - 6.45 - 75 M050Z060-30P-D L025 0.90 DCK2-100 A 24 14 - 6.45 - 100 M050Z060-30P-D L025 1.00 DCK2-130L B 24 14 31 6.45 65 130 M050Z060-30P-D L025 1.10 DCK3-80 A 31 18 - 7.9 - 80 M060Z090-30P-D L03 1.00 DCK3-100 A 31 18 - 7.9 - 100 M060Z090-30P-D L03 1.10 DCK3-135L B 31 18 37 7.9 75 135 M060Z090-30P-D L03 1.30 DCK3-165L B 31 18 41 7.9 85 165 M060Z090-30P-D L03 1.40 DCK4-70 A 39 22 - 10 - 70 M080Z120-30P-D L04 1.00 DCK4-100 A 39 22 - 10 - 100 M080Z120-30P-D L04 1.30 DCK4-150L B 39 22 44 10 95 150 M080Z120-30P-D L04 1.70 DCK4-170L B 39 22 47.5 10 95 170 M080Z120-30P-D L04 1.90 DCK5-80 A 50 28 - 13 - 80 M100Z160-30P-D L05 1.40 DCK5-100 A 50 28 - 13 - 100 M100Z160-30P-D L05 1.80 DCK5-150 A 50 28 - 13 - 150 M100Z160-30P-D L05 2.20 DCK5-180 A 50 28 - 13 - 180 M100Z160-30P-D L05 2.70 DCK6-100 A 64 36 - 16 - 100 M120Z200-30P-D L06 2.20 DCK6-150 A 64 36 - 16 - 150 M120Z200-30P-D L06 2.80 DCK6-180 A 64 36 - 16 - 180 M120Z200-30P-D L06 3.30 DCK7-110 A 90 46 19.15 - 110 M200Z290-30P-D L10 3.50 DCK7-150 A 90 46 19.15 - 150 M200Z290-30P-D L10 5.20 IITM See next page r PDEREK
