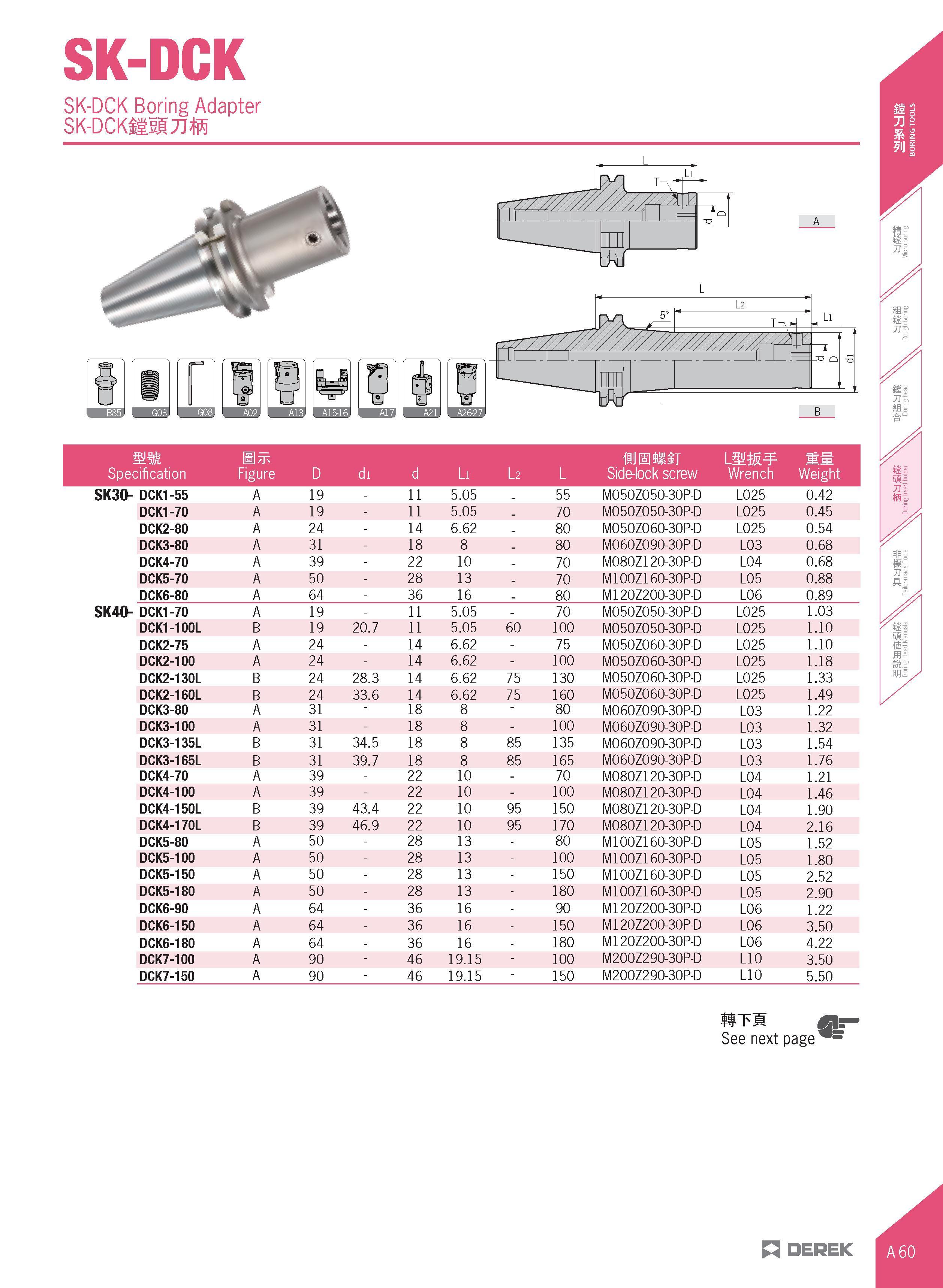

SK-DCK SK-DCK Boring Adapter SK-DCKMSlJJfli B . Specification Btk Figure D di d Li l 2 L flJHiftT Side-lock screw mw Wrench Weight SK30- DCK1-55 A 19 - 11 5.05 55 M050Z050-30P-D L025 0.42 DCK1-70 A 19 - 11 5.05 70 M050Z050-30P-D L025 0.45 DCK2-80 A 24 - 14 6.62 - 80 M050Z060-30P-D L025 0.54 DCK3-80 A 31 - 18 8 - 80 M060Z090-30P-D L03 0.68 DCK4-70 A 39 - 22 10 - 70 M080Z120-30P-D L04 0.68 DCK5-70 A 50 - 28 13 - 70 M100Z160-30P-D L05 0.88 DCK6-80 A 64 - 36 16 - 80 M120Z200-30P-D L06 0.89 SK40- DCK1-70 A 19 - 11 5.05 - 70 M050Z050-30P-D L025 1.03 DCK1-100L B 19 20.7 11 5.05 60 100 M050Z050-30P-D L025 1.10 DCK2-75 A 24 - 14 6.62 - 75 M050Z060-30P-D L025 1.10 DCK2-100 A 24 - 14 6.62 - 100 M050Z060-30P-D L025 1.18 DCK2-130L B 24 28.3 14 6.62 75 130 M050Z060-30P-D L025 1.33 DCK2-160L B 24 33.6 14 6.62 75 160 M050Z060-30P-D L025 1.49 DCK3-80 A 31 - 18 8 80 M060Z090-30P-D L03 1.22 DCK3-100 A 31 - 18 8 - 100 M060Z090-30P-D L03 1.32 DCK3-135L B 31 34.5 18 8 85 135 M060Z090-30P-D L03 1.54 DCK3-165L B 31 39.7 18 8 85 165 M060Z090-30P-D L03 1.76 DCK4-70 A 39 - 22 10 - 70 M080Z120-30P-D L04 1.21 DCK4-100 A 39 - 22 10 - 100 M080Z120-30P-D L04 1.46 DCK4-150L B 39 43.4 22 10 95 150 M080Z120-30P-D L04 1.90 DCK4-170L B 39 46.9 22 10 95 170 M080Z120-30P-D L04 2.16 DCK5-80 A 50 - 28 13 - 80 M100Z160-30P-D L05 1.52 DCK5-100 A 50 - 28 13 - 100 M100Z160-30P-D L05 1.80 DCK5-150 A 50 - 28 13 - 150 M100Z160-30P-D L05 2.52 DCK5-180 A 50 - 28 13 - 180 M100Z160-30P-D L05 2.90 DCK6-90 A 64 - 36 16 - 90 M120Z200-30P-D L06 1.22 DCK6-150 A 64 - 36 16 - 150 M120Z200-30P-D L06 3.50 DCK6-180 A 64 - 36 16 - 180 M120Z200-30P-D L06 4.22 DCK7-100 A 90 - 46 19.15 - 100 M200Z290-30P-D L10 3.50 DCK7-150 A 90 - 46 19.15 - 150 M200Z290-30P-D L10 5.50 IITM See next page r PDEREK
