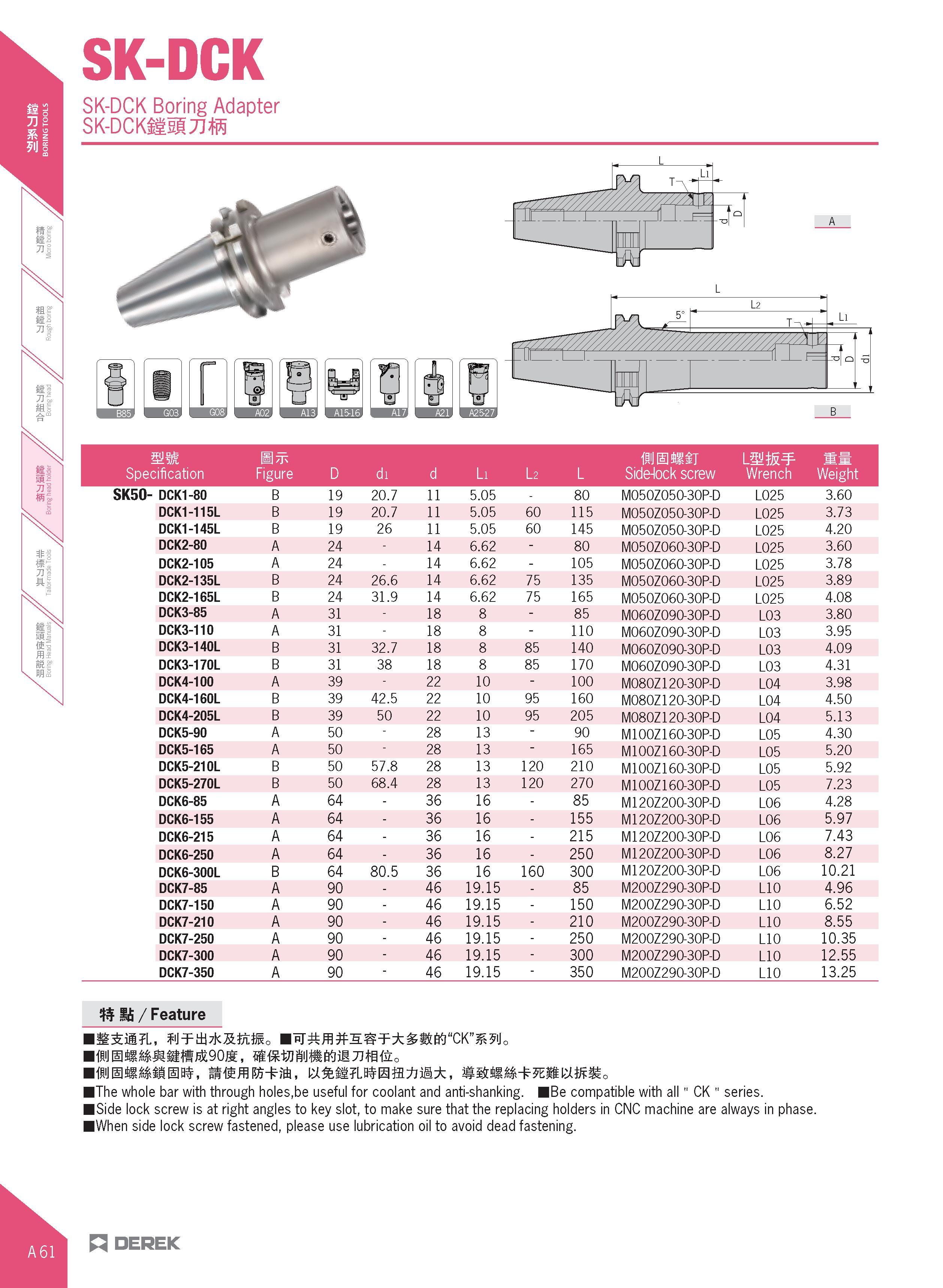

SK-DCK SK-DCK Boring Adapter SK-DCKMSlJJfli 1 1 K& 1 B Specification Btk Figure D di d Li l 2 L flJHiftT Side-lock screw mw Wrench Weight SK50- DCK1-80 B 19 20.7 11 5.05 - 80 M050Z050-30P-D L025 3.60 DCK1-115L B 19 20.7 11 5.05 60 115 M050Z050-30P-D L025 3.73 DCK1-145L B 19 26 11 5.05 60 145 M050Z050-30P-D L025 4.20 DCK2-80 A 24 - 14 6.62 - 80 M050Z060-30P-D L025 3.60 DCK2-105 A 24 - 14 6.62 - 105 M050Z060-30P-D L025 3.78 DCK2-135L B 24 26.6 14 6.62 75 135 M050Z060-30P-D L025 3.89 DCK2-165L B 24 31.9 14 6.62 75 165 M050Z060-30P-D L025 4.08 DCK3-85 A 31 - 18 8 - 85 M060Z090-30P-D L03 3.80 DCK3-110 A 31 - 18 8 - 110 M060Z090-30P-D L03 3.95 DCK3-140L B 31 32.7 18 8 85 140 M060Z090-30P-D L03 4.09 DCK3-170L B 31 38 18 8 85 170 M060Z090-30P-D L03 4.31 DCK4-100 A 39 - 22 10 - 100 M080Z120-30P-D L04 3.98 DCK4-160L B 39 42.5 22 10 95 160 M080Z120-30P-D L04 4.50 DCK4-205L B 39 50 22 10 95 205 M080Z120-30P-D L04 5.13 DCK5-90 A 50 - 28 13 - 90 M100Z160-30P-D L05 4.30 DCK5-165 A 50 - 28 13 - 165 M100Z160-30P-D L05 5.20 DCK5-210L B 50 57.8 28 13 120 210 M100Z160-30P-D L05 5.92 DCK5-270L B 50 68.4 28 13 120 270 M100Z160-30P-D L05 7.23 DCK6-85 A 64 - 36 16 - 85 M120Z200-30P-D L06 4.28 DCK6-155 A 64 - 36 16 - 155 M120Z200-30P-D L06 5.97 DCK6-215 A 64 - 36 16 - 215 M120Z200-30P-D L06 7.43 DCK6-250 A 64 - 36 16 - 250 M120Z200-30P-D L06 8.27 DCK6-300L B 64 80.5 36 16 160 300 M120Z200-30P-D L06 10.21 DCK7-85 A 90 - 46 19.15 - 85 M200Z290-30P-D L10 4.96 DCK7-150 A 90 - 46 19.15 - 150 M200Z290-30P-D L10 6.52 DCK7-210 A 90 - 46 19.15 - 210 M200Z290-30P-D L10 8.55 DCK7-250 A 90 . 46 19.15 . 250 M200Z290-30P-D L10 10.35 DCK7-300 A 90 . 46 19.15 . 300 M200Z290-30P-D L10 12.55 DCK7-350 A 90 - 46 19.15 - 350 M200Z290-30P-D L10 13.25 : £ / Feature M AJ Jt£tt/£90&, The whole bar with through holes.be useful for coolant and anti-shanking. BBe compatible with all" CK " series. Side lock screw is at right angles to key slot, to make sure that the replacing holders in CNC machine are always in phase. When side lock screw fastened, please use lubrication oil to avoid dead fastening. DEREK
