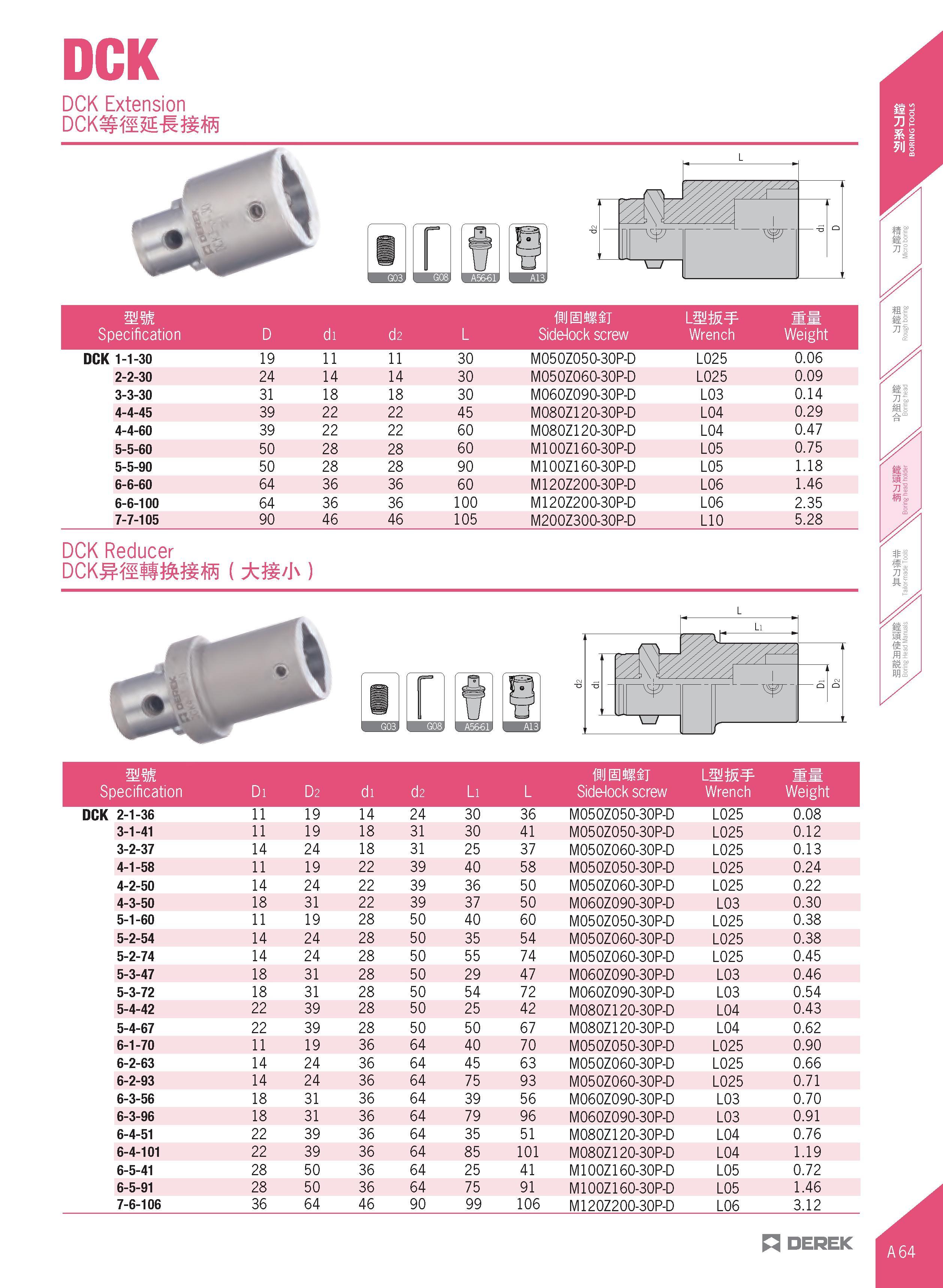

DCK DCK Extension DCK M-K mm Specification D di d2 L flJHiftT Side-lock screw mw Wrench Weight DCK 1-1-30 19 11 11 30 M050Z050-30P-D L025 0.06 2-2-30 24 14 14 30 M050Z060-30P-D L025 0.09 3-3-30 31 18 18 30 M060Z090-30P-D L03 0.14 4-4-45 39 22 22 45 M080Z120-30P-D L04 0.29 4-4-60 39 22 22 60 M080Z120-30P-D L04 0.47 5-5-60 50 28 28 60 M100Z160-30P-D L05 0.75 5-5-90 50 28 28 90 M100Z160-30P-D L05 1.18 6-6-60 64 36 36 60 M120Z200-30P-D L06 1.46 6-6-100 64 36 36 100 M120Z200-30P-D L06 2.35 7-7-105 90 46 46 105 M200Z300-30P-D no 5.28 DCK Reducer DCmm ( &/Jx) mm Specification Di D2 di d2 Li L mmmu Side-lock screw l mm- Wrench Weight DCK 2-1-36 11 19 14 24 30 36 M050Z050-30P-D L025 0.08 3-1-41 11 19 18 31 30 41 M050Z050-30P-D L025 0.12 3-2-37 14 24 18 31 25 37 M050Z060-30P-D L025 0.13 4-1-58 11 19 22 39 40 58 M050Z050-30P-D L025 0.24 4-2-50 14 24 22 39 36 50 M050Z060-30P-D L025 0.22 4-3-50 18 31 22 39 37 50 M060Z090-30P-D L03 0.30 5-1-60 11 19 28 50 40 60 M050Z050-30P-D L025 0.38 5-2-54 14 24 28 50 35 54 M050Z060-30P-D L025 0.38 5-2-74 14 24 28 50 55 74 M050Z060-30P-D L025 0.45 5-3-47 18 31 28 50 29 47 M060Z090-30P-D L03 0.46 5-3-72 18 31 28 50 54 72 M060Z090-30P-D L03 0.54 5-4-42 22 39 28 50 25 42 M080Z120-30P-D L04 0.43 5-4-67 22 39 28 50 50 67 M080Z120-30P-D L04 0.62 6-1-70 11 19 36 64 40 70 M050Z050-30P-D L025 0.90 6-2-63 14 24 36 64 45 63 M050Z060-30P-D L025 0.66 6-2-93 14 24 36 64 75 93 M050Z060-30P-D L025 0.71 6-3-56 18 31 36 64 39 56 M060Z090-30P-D L03 0.70 6-3-96 18 31 36 64 79 96 M060Z090-30P-D L03 0.91 6-4-51 22 39 36 64 35 51 M080Z120-30P-D L04 0.76 6-4-101 22 39 36 64 85 101 M080Z120-30P-D L04 1.19 6-5-41 28 50 36 64 25 41 M100Z160-30P-D L05 0.72 6-5-91 28 50 36 64 75 91 M100Z160-30P-D L05 1.46 7-6-106 36 64 46 90 99 106 M120Z200-30P-D L06 3.12 H DEREK
