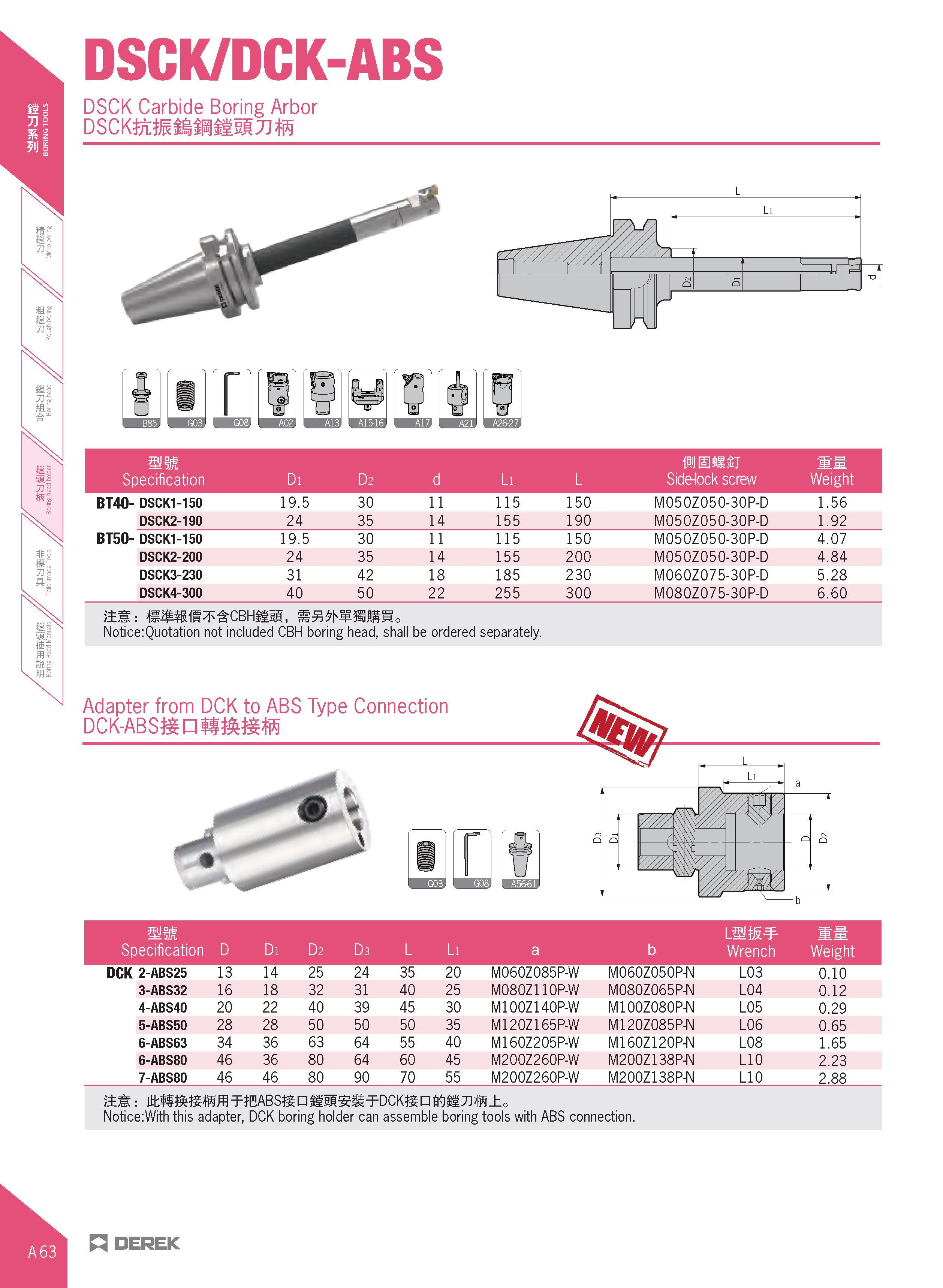

DSCK/DCK-ABS DSCK Carbide Boring Arbor DscmmmmmMiim mm Specification Di D2 d Li L mmmu Side-lock screw Weight BT40- DSCK1-150 19.5 30 11 115 150 M050Z050-30P-D 1.56 DSCK2-190 24 35 14 155 190 M050Z050-30P-D 1.92 BT50- DSCK1-150 19.5 30 11 115 150 M050Z050-30P-D 4.07 DSCK2-200 24 35 14 155 200 M050Z050-30P-D 4.84 DSCK3-230 31 42 18 185 230 M060Z075-30P-D 5.28 DSCK4-300 40 50 22 255 300 M080Z075-30P-D 6.60 Notice:Quotation not included CBH boring head, shall be ordered separately. Adapter from DCK to ABS Type Connection DCK-ABS&PS............ r Li = a n i o 'f £ f O Q 1 v L sff mm Specification D Di D2 Da L Li a b imw Wrench Weight DCK 2-ABS25 13 14 25 24 35 20 M060Z085P-W M060Z050P-N L03 0.10 3-ABS32 16 18 32 31 40 25 M080Z110P-W M080Z065P-N L04 0.12 4-ABS40 20 22 40 39 45 30 M100Z140P-W M100Z080P-N L05 0.29 5-ABS50 28 28 50 50 50 35 M120Z165P-W M120Z085P-N L06 0.65 6-ABS63 34 36 63 64 55 40 M160Z205P-W M160Z120P-N L08 1.65 6-ABS80 46 36 80 64 60 45 M200Z260P-W M200Z138P-N no 2.23 7-ABS80 46 46 80 90 70 55 M200Z260P-W M200Z138P-N L10 2.88 Notice:With this adapter, DCK boring holder can assemble boring tools with ABS connection. H DEREK
