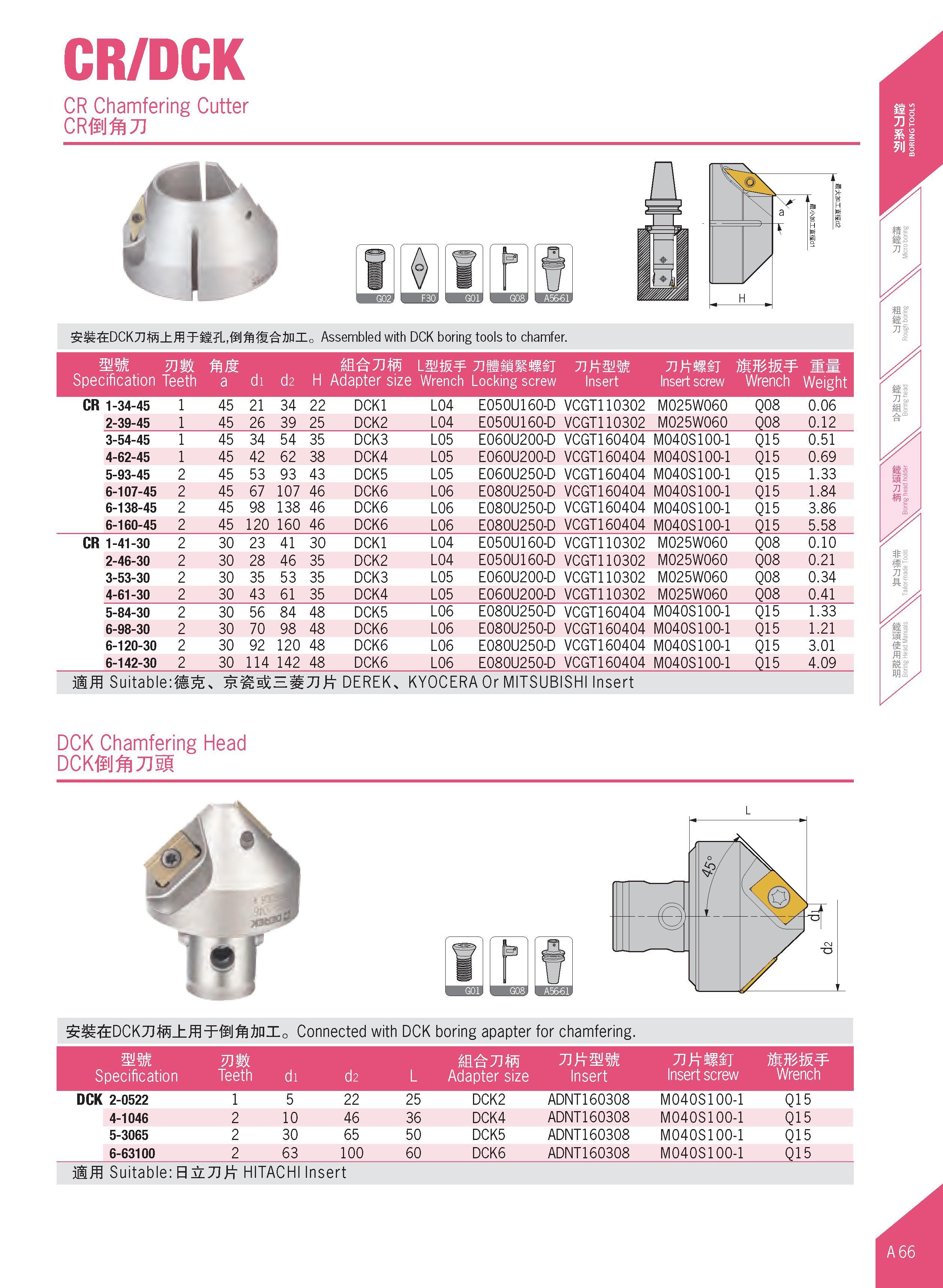

CR/DCK CR Chamfering Cutter Assembled with DCK boring tools to chamfer. mm 71 WMW Specification Teeth a di d2 H Adapter size Wrench Locking screw Insert Insert screw Wrench Weight CR 1-34-45 1 45 21 34 22 DCK1 L04 E050U160-D VCGT110302 M025W060 Q08 0.06 2-39-45 1 45 26 39 25 DCK2 L04 E050U160-D VCGT110302 M025W060 008 0.12 3-54-45 1 45 34 54 35 DCK3 L05 E060U200-D VCGT160404 M040S100-1 Q15 0.51 4-62-45 1 45 42 62 38 DCK4 L05 E060U200-D VCGT160404 M040S100-1 Q15 0.69 5-93-45 2 45 53 93 43 DCK5 L05 E060U250-D VCGT160404 M040S100-1 Q15 1.33 6-107-45 2 45 67 107 46 DCK6 L06 E080U250-D VCGT160404 M040S100-1 Q15 1.84 6-138-45 2 45 98 138 46 DCK6 L06 E080U250-D VCGT160404 M040S100-1 Q15 3.86 6-160-45 2 45 120 160 46 DCK6 L06 E080U250-D VCGT160404 M040S100-1 015 5.58 CR 1-41-30 2 30 23 41 30 DCK1 L04 E050U160-D VCGT110302 M025W060 Q08 0.10 2-46-30 2 30 28 46 35 DCK2 L04 E050U160-D VCGT110302 M025W060 Q08 0.21 3-53-30 2 30 35 53 35 DCK3 L05 E060U200-D VCGT110302 M025W060 Q08 0.34 4-61-30 2 30 43 61 35 DCK4 L05 E060U200-D VCGT110302 M025W060 Q08 0.41 5-84-30 2 30 56 84 48 DCK5 L06 E080U250-D VCGT160404 M040S100-1 Q15 1.33 6-98-30 2 30 70 98 48 DCK6 L06 E080U250-D VCGT160404 M040S100-1 Q15 1.21 6-120-30 2 30 92 120 48 DCK6 L06 E080U250-D VCGT160404 M040S100-1 Q15 3.01 6-142-30 2 30 114 142 48 DCK6 L06 E080U250-D VCGT160404 M040S100-1 015 4.09 Suitable:flS Hi JJft DEREK, KYOCERA Or MITSUBISHI Insert DCK Chamfering Head DCKfiJ TJsI A I iSSiSDCKZllPLtfflTlSiJ Anio Connected with DCK boring apapter for chamfering. mm m.£nm jjxmm TJttSSJ wmm - Specification Teeth di d2 L Adapter size Insert Insert screw Wrench DCK 2-0522 1 5 22 25 DCK2 ADNT160308 M040S100-1 Q15 4-1046 2 10 46 36 DCK4 ADNT160308 M040S100-1 Q15 5-3065 2 30 65 50 DCK5 ADNT160308 M040S100-1 Q15 6-63100 2 63 100 60 DCK6 ADNT160308 M040S100-1 Q15 jlffl Suitable: R±L7 ft HITACHI Insert
