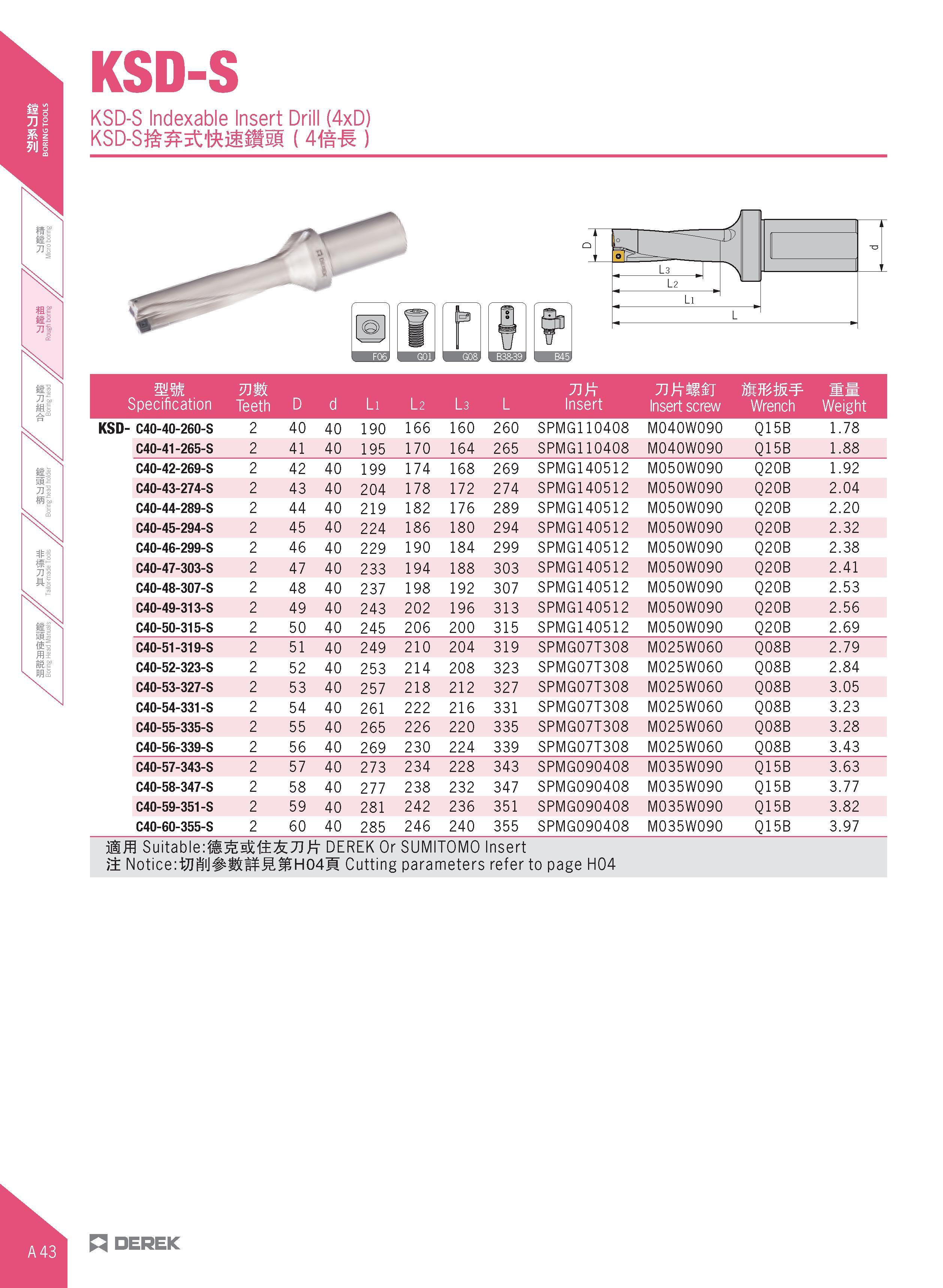

KSD-S KSD-S Indexable Insert Drill (4xD) KSD-S st'fcfciiifsI (Mm ) "O 1' mm Specification VJWL Teeth D d Li l 2 l 3 L Tift Insert Insert screw mmw Wrench Weight KSD- C40-40-260-S 2 40 40 190 166 160 260 SPMG110408 M040W090 Q15B 1.78 C40-41-265-S 2 41 40 195 170 164 265 SPMG110408 M040W090 Q15B 1.88 C40-42-269-S 2 42 40 199 174 168 269 SPMG140512 M050W090 Q20B 1.92 C40-43-274-S 2 43 40 204 178 172 274 SPMG140512 M050W090 Q20B 2.04 C40-44-289-S 2 44 40 219 182 176 289 SPMG140512 M050W090 Q20B 2.20 C40-45-294-S 2 45 40 224 186 180 294 SPMG140512 M050W090 Q20B 2.32 C40-46-299-S 2 46 40 229 190 184 299 SPMG140512 M050W090 Q20B 2.38 C40-47-303-S 2 47 40 233 194 188 303 SPMG140512 M050W090 Q20B 2.41 C40-48-307-S 2 48 40 237 198 192 307 SPMG140512 M050W090 Q20B 2.53 C40-49-313-S 2 49 40 243 202 196 313 SPMG140512 M050W090 Q20B 2.56 C40-50-315-S 2 50 40 245 206 200 315 SPMG140512 M050W090 Q20B 2.69 C40-51-319-S 2 51 40 249 210 204 319 SPMG07T308 M025W060 Q08B 2.79 C40-52-323-S 2 52 40 253 214 208 323 SPMG07T308 M025W060 Q08B 2.84 C40-53-327-S 2 53 40 257 218 212 327 SPMG07T308 M025W060 Q08B 3.05 C40-54-331-S 2 54 40 261 222 216 331 SPMG07T308 M025W060 Q08B 3.23 C40-55-335-S 2 55 40 265 226 220 335 SPMG07T308 M025W060 Q08B 3.28 C40-56-339-S 2 56 40 269 230 224 339 SPMG07T308 M025W060 Q08B 3.43 C40-57-343-S 2 57 40 273 234 228 343 SPMG090408 M035W090 Q15B 3.63 C40-58-347-S 2 58 40 277 238 232 347 SPMG090408 M035W090 Q15B 3.77 C40-59-351-S 2 59 40 281 242 236 351 SPMG090408 M035W090 Q15B 3.82 C40-60-355-S 2 60 40 285 246 240 355 SPMG090408 M035W090 Q15B 3.97 mm Suitable:fl£s£f±;£7ltt DEREK Or SUMITOMO Insert j± Notice:tJUliJ l£s¥JILflH04M Cutting parameters refer to page H04 H DEREK
