75 Каталог DEREK 2017 Режущий инструмент и оснастка инструментальная для станков Стр.A44

Каталог DEREK 2017 Инструмент и оснастка для станков Стр. A44 0075 Lab2u

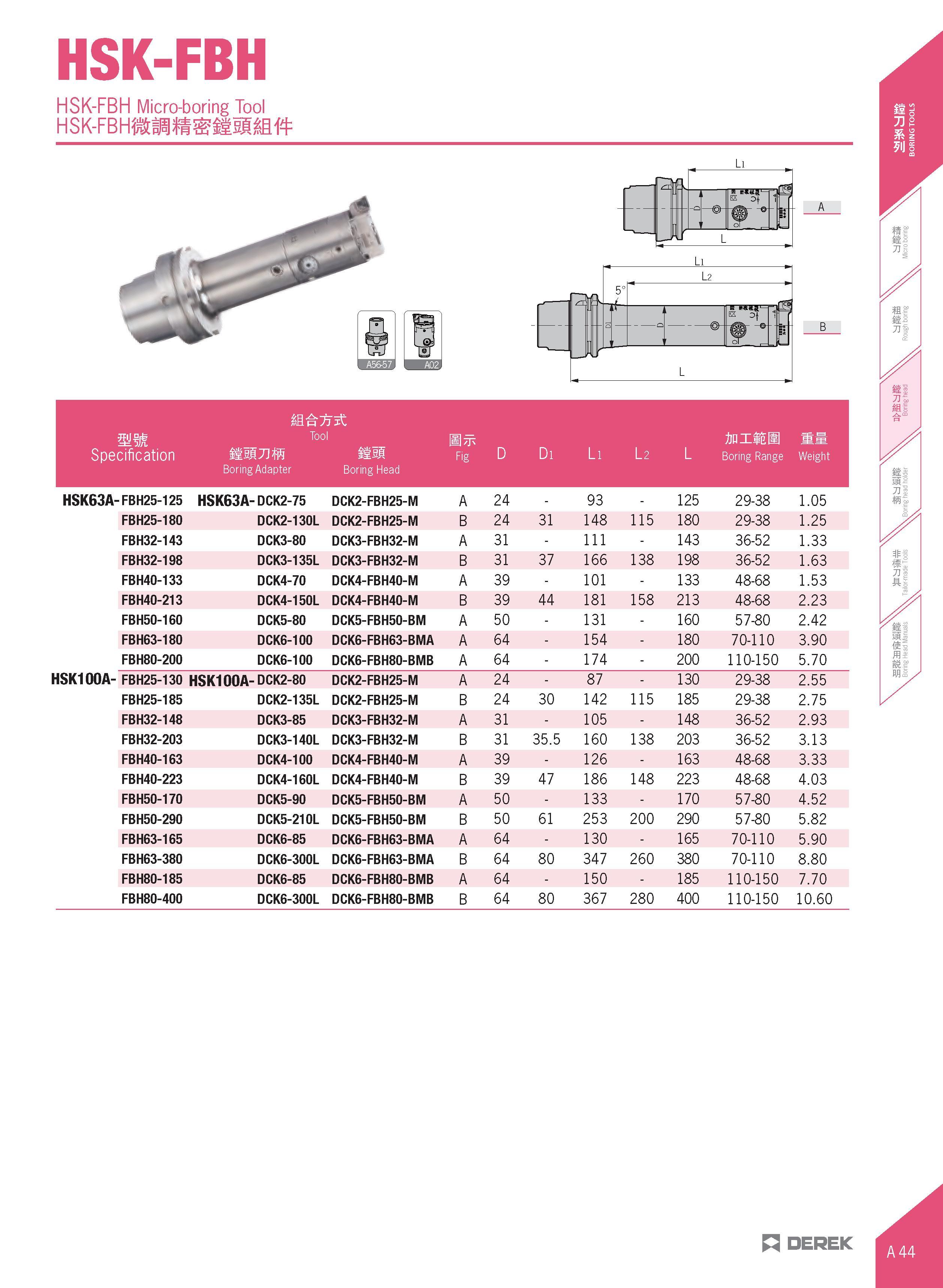

HSK-FBH HSK-FBH Micro-boring Tool A icification Tool mmum Boring Adapter Boring Head Fig D Di Li l 2 L An ill IS Boring Range Weight -FBH25-125 HSK63A- DCK2-75 DCK2-FBH25-M A 24 - 93 - 125 29-38 1.05 FBH25-180 DCK2-130L DCK2-FBH25-M B 24 31 148 115 180 29-38 1.25 FBH32-143 DCK3-80 DCK3-FBH32-M A 31 - 111 - 143 36-52 1.33 FBH32-198 DCK3-135L DCK3-FBH32-M B 31 37 166 138 198 36-52 1.63 FBH40-133 DCK4-70 DCK4-FBH40-M A 39 - 101 - 133 48-68 1.53 FBH40-213 DCK4-150L DCK4-FBH40-M B 39 44 181 158 213 48-68 2.23 FBH50-160 DCK5-80 DCK5-FBH50-BM A 50 - 131 - 160 57-80 2.42 FBH63-180 DCK6-100 DCK6-FBH63-BMA A 64 - 154 - 180 70-110 3.90 FBH80-200 DCK6-100 DCK6-FBH80-BMB A 64 - 174 - 200 110-150 5.70 FBH25-130 HSK100A- DCK2-80 DCK2-FBH25-M A 24 - 87 - 130 29-38 2.55 FBH25-185 DCK2-135L DCK2-FBH25-M B 24 30 142 115 185 29-38 2.75 FBH32-148 DCK3-85 DCK3-FBH32-M A 31 - 105 - 148 36-52 2.93 FBH32-203 DCK3-140L DCK3-FBH32-M B 31 35.5 160 138 203 36-52 3.13 FBH40-163 DCK4-100 DCK4-FBH40-M A 39 - 126 - 163 48-68 3.33 FBH40-223 DCK4-160L DCK4-FBH40-M B 39 47 186 148 223 48-68 4.03 FBH50-170 DCK5-90 DCK5-FBH50-BM A 50 - 133 - 170 57-80 4.52 FBH50-290 DCK5-210L DCK5-FBH50-BM B 50 61 253 200 290 57-80 5.82 FBH63-165 DCK6-85 DCK6-FBH63-BMA A 64 - 130 - 165 70-110 5.90 FBH63-380 DCK6-300L DCK6-FBH63-BMA B 64 80 347 260 380 70-110 8.80 FBH80-185 DCK6-85 DCK6-FBH80-BMB A 64 - 150 - 185 110-150 7.70 FBH80-400 DCK6-300L DCK6-FBH80-BMB B 64 80 367 280 400 110-150 10.60 n DEREK
