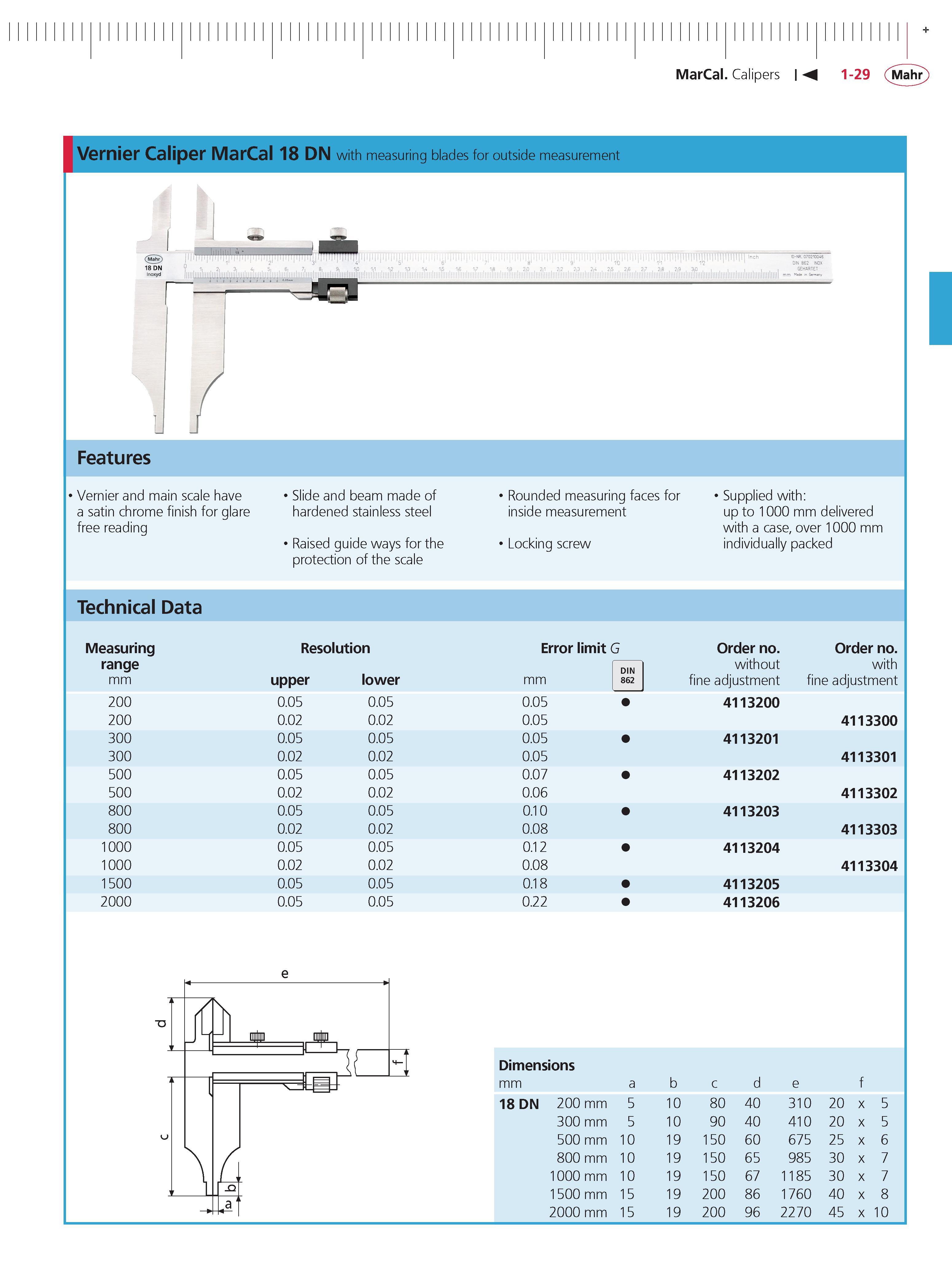

Vernier Caliper Mahr MarCal 18 DN with measuring blades for outside measurement Features Vernier and main scale have a satin chrome finish for glare free reading Slide and beam made of hardened stainless steel Raised guide ways for the protection of the scale Rounded measuring faces for inside measurement Locking screw Supplied with up to 1000 mm delivered with a case over 1000 mm individually packed Technical Data Measuring range mm 200 200 300 300 500 500 800 800 1000 1000 1500 2000 Resolution Error limit G upper 0.05 0.02 0.05 0.02 0.05 0.02 0.05 0.02 0.05 0.02 0.05 0.05 lower 0.05 0.02 0.05 0.02 0.05 0.02 0.05 0.02 0.05 0.02 0.05 0.05 mm 0.05 0.05 0.05 0.05 0.07 0.06 0.10 0.08 0.12 0.08 0.18 0.22 DIN 862 order no. without fine adjustment 4113200 4113201 4113202 4113203 4113204 4113205 4113206 order no. with fine adjustment 4113300 4113301 4113302 4113303 4113304 Dimensions mm a b c d e f 18 DN 200 mm 5 10 80 40 310 20 x 5 300 mm 5 10 90 40 410 20 x 5 500 mm 10 19 150 60 675 25 x 6 800 mm 10 19 150 65 985 30 x 7 1000 mm 10 19 150 67 1185 30 x 7 1500 mm 15 19 200 86 1760 40 x 8 2000 mm 15 19 200 96 2270 45 x 10 MarCal Calipers 1-29 CMahr
