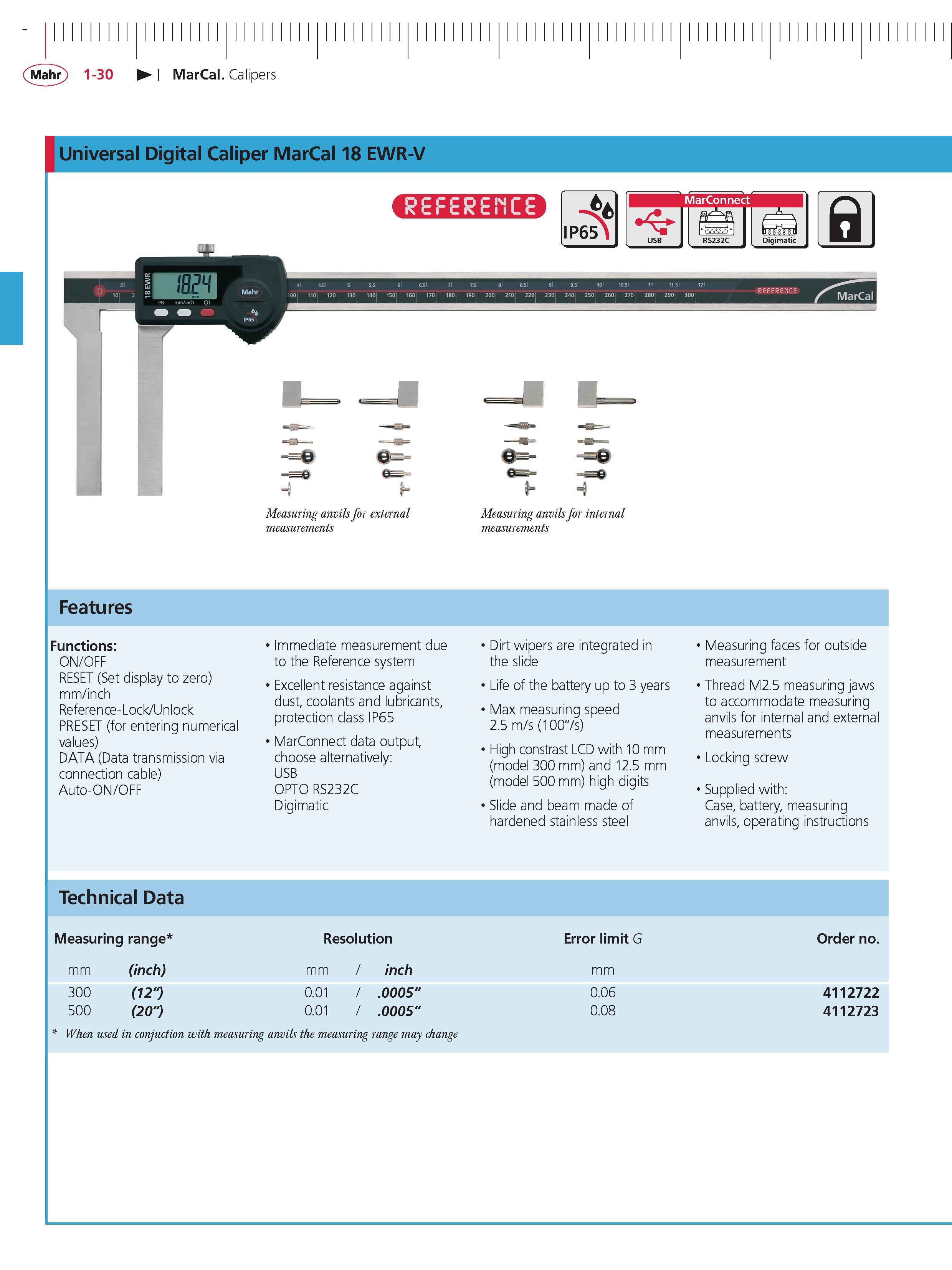

Universal Digital Caliper Mahr MarCal 18 EWR-V Measuring anvils for external measurements Measuring anvils for internal measurements Features F

Universal Digital Caliper Mahr MarCal 18 EWR-V Measuring anvils for external measurements Measuring anvils for internal measurements Features Functions ON/OFF RESET (Set display to zero) mm inch Reference-Lock Unlock PRESET (for entering numerical values) DATA (Data transmission via connection cable) Auto-ON/OFF Immediate measurement due to the Reference system Excellent resistance against dust coolants and lubricants protection class IP65 MarConnect data output choose alternatively USB OPTO RS232C Digimatic Dirt wipers are integrated in the slide Life of the battery up to 3 years Max measuring speed 2.5 m s (100" s) High constrast LCD with 10 mm (model 300 mm) and 12.5 mm (model 500 mm) high digits Slide and beam made of hardened stainless steel Measuring faces for outside measurement Thread M2.5 measuring jaws to accommodate measuring anvils for internal and external measurements Locking screw Supplied with Case battery measuring anvils operating instructions Technical Data Measuring range resolution error limit G order no. mm (inch) mm inch mm 300 (12") 0.01 .0005" 0.06 4112722 500 (20") 0.01 .0005" 0.08 4112723 When used in conjuction with measuring anvils the measuring range may change Mahr 1-30 MarCal Calipers
