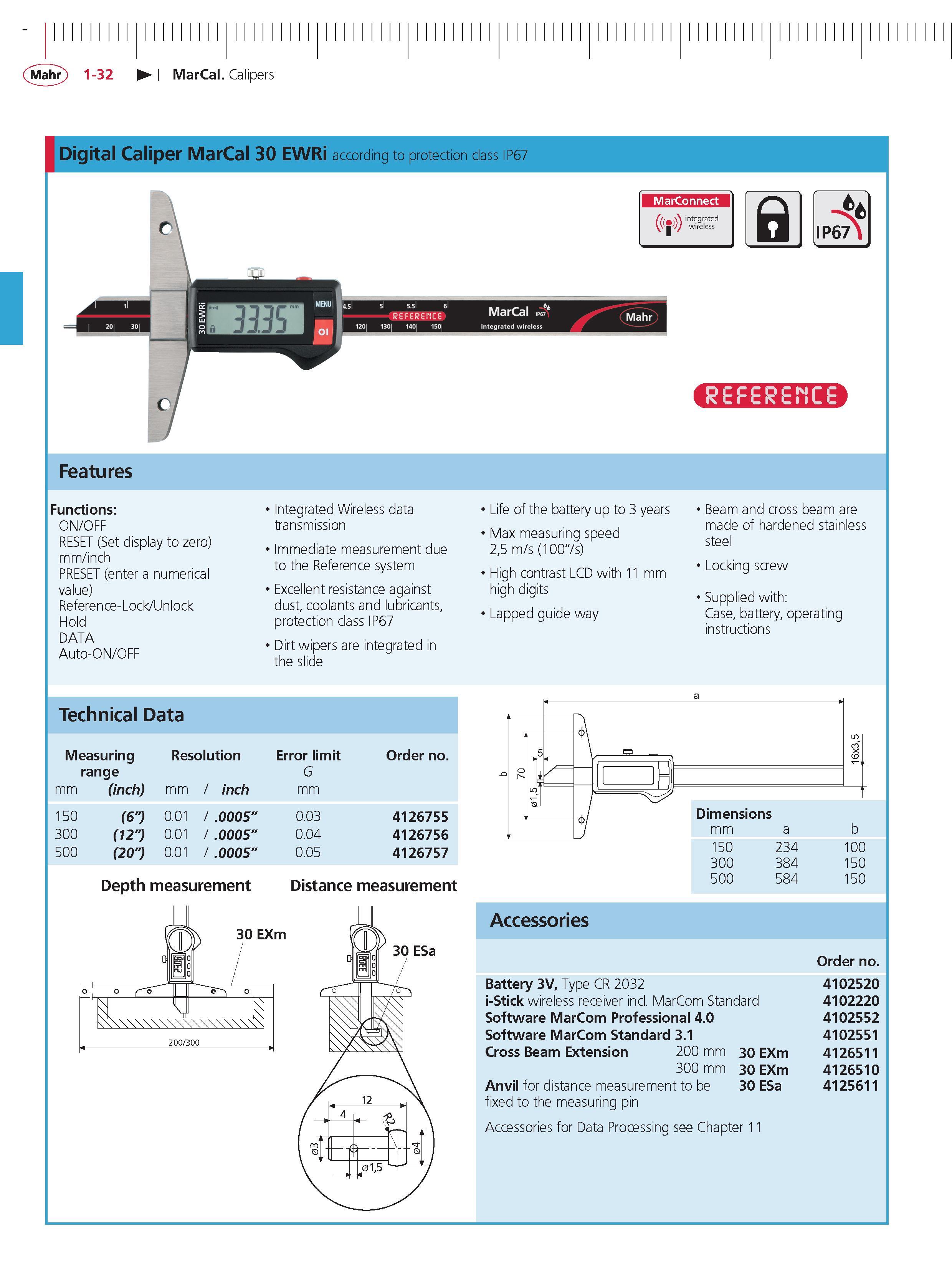

Digital Caliper Mahr MarCal 30 EWRi according to protection class IP67 a IP 67 Features Functions ON/OFF RESET (Set display to zero) mm inch PR

Digital Caliper Mahr MarCal 30 EWRi according to protection class IP67 a IP 67 Features Functions ON/OFF RESET (Set display to zero) mm inch PRESET (enter a numerical value) Reference-Lock Unlock Hold DATA Auto-ON/OFF Integrated Wireless data transmission Immediate measurement due to the Reference system Excellent resistance against dust coolants and lubricants protection class IP67 Dirt wipers are integrated in the slide Life of the battery up to 3 years Max measuring speed 25 m s (1007s) High contrast LCD with 11 mm high digits Lapped guide way Beam and cross beam are made of hardened stainless steel Locking screw Supplied with Case battery operating instructions Technical Data Measuring resolution error limit order no. range G mm (inch) mm inch mm 150 (6" 0.01 .0005" 0.03 4126755 300 (12" 0.01 .0005" 0.04 4126756 500 (20'") 0.01 .0005" 0.05 4126757 Depth measurement Distance measurement Dimensions mm a b 150 234 100 300 384 150 500 584 150 Accessories order no. Battery 3v Type CR 2032 4102520 i-Stick wireless receiver incl. MarCom Standard 4102220 Software MarCom Professional 4.0 4102552 Software MarCom Standard 3.1 4102551 Cross Beam extension 200 mm 30 eXm 4126511 300 mm 30 eXm 4126510 anvil for distance measurement to be 30 eSa 4125611 fixed to the measuring pin Accessories for Data Processing see Chapter 11 a Mahr 1-32 MarCal Calipers
