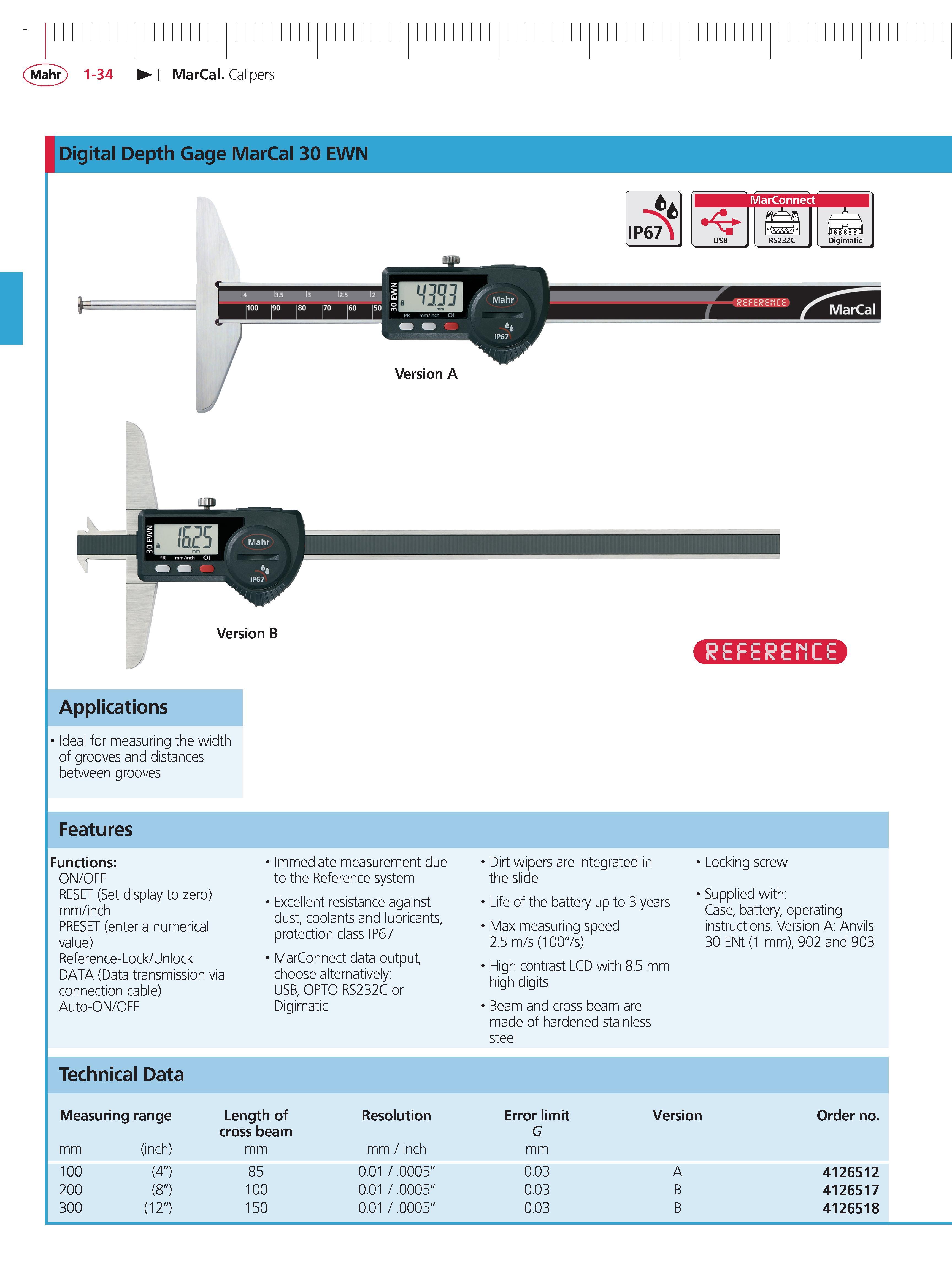

Digital Depth Gage Mahr MarCal 30 EWN Version A B Applications Ideal for measuring the width of grooves and distances between grooves Features

Digital Depth Gage Mahr MarCal 30 EWN Version A B Applications Ideal for measuring the width of grooves and distances between grooves Features Functions ON/OFF RESET (Set display to zero) mm inch PRESET (enter a numerical value) Reference-Lock Unlock DATA (Data transmission via connection cable) Auto-ON/OFF Immediate measurement due to the Reference system Excellent resistance against dust coolants and lubricants protection class IP67 MarConnect data output choose alternatively USB OPTO RS232C or Digimatic Dirt wipers are integrated in the slide Life of the battery up to 3 years Max measuring speed 2.5 m s (100" s) High contrast LCD with 8.5 mm high digits Beam and cross beam are made of hardened stainless steel Locking screw Supplied with Case battery operating instructions. Version A Anvils 30 ENt (1 mm) 902 and 903 Technical Data Measuring range mm 100 200 300 (inch) (4") (8") (12") Length of cross beam mm 85 100 150 Resolution mm inch 0.01 .0005" 0.01 .0005" 0.01 .0005" error limit G mm 0.03 0.03 0.03 Version order no. 4126512 4126517 4126518
