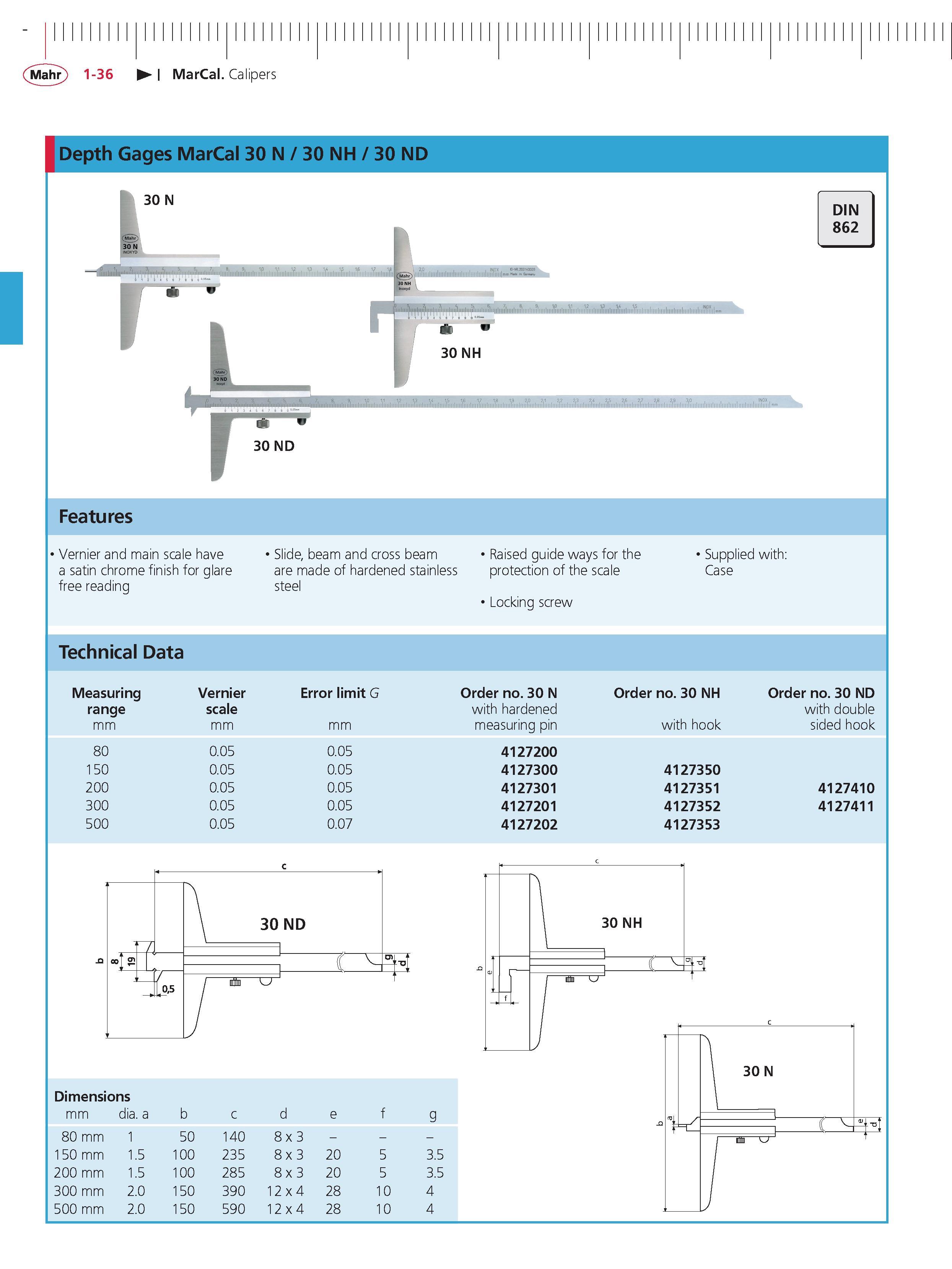

Calipers Depth Gages Mahr MarCal 30 N 30 NH 30 ND DIN 862 Features Vernier and main scale have a satin chrome finish for glare free reading Sli

Calipers Depth Gages Mahr MarCal 30 N 30 NH 30 ND DIN 862 Features Vernier and main scale have a satin chrome finish for glare free reading Slide beam and cross beam are made of hardened stainless steel Raised guide ways for the protection of the scale Locking screw Supplied with Case Technical Data Measuring range mm 80 150 200 300 500 vernier scale mm 0.05 0.05 0.05 0.05 0.05 Error limit G mm 0.05 0.05 0.05 0.05 0.07 order no. 30 N with hardened measuring pin 4127200 4127300 4127301 4127201 4127202 order no. 30 NH with hook 4127350 4127351 4127352 4127353 order no. 30 ND with double sided hook 4127410 4127411 Dimensions mm dia. a b c d e f g 80 mm 1 50 140 8 x 3 - 150 mm 1.5 100 235 8 x 3 20 5 3.5 200 mm 1.5 100 285 8 x 3 20 5 3.5 300 mm 2.0 150 390 12 x 4 28 10 4 500 mm 2.0 150 590 12 x 4 28 10 4 30 NH Mahr 1-36 MarCal
