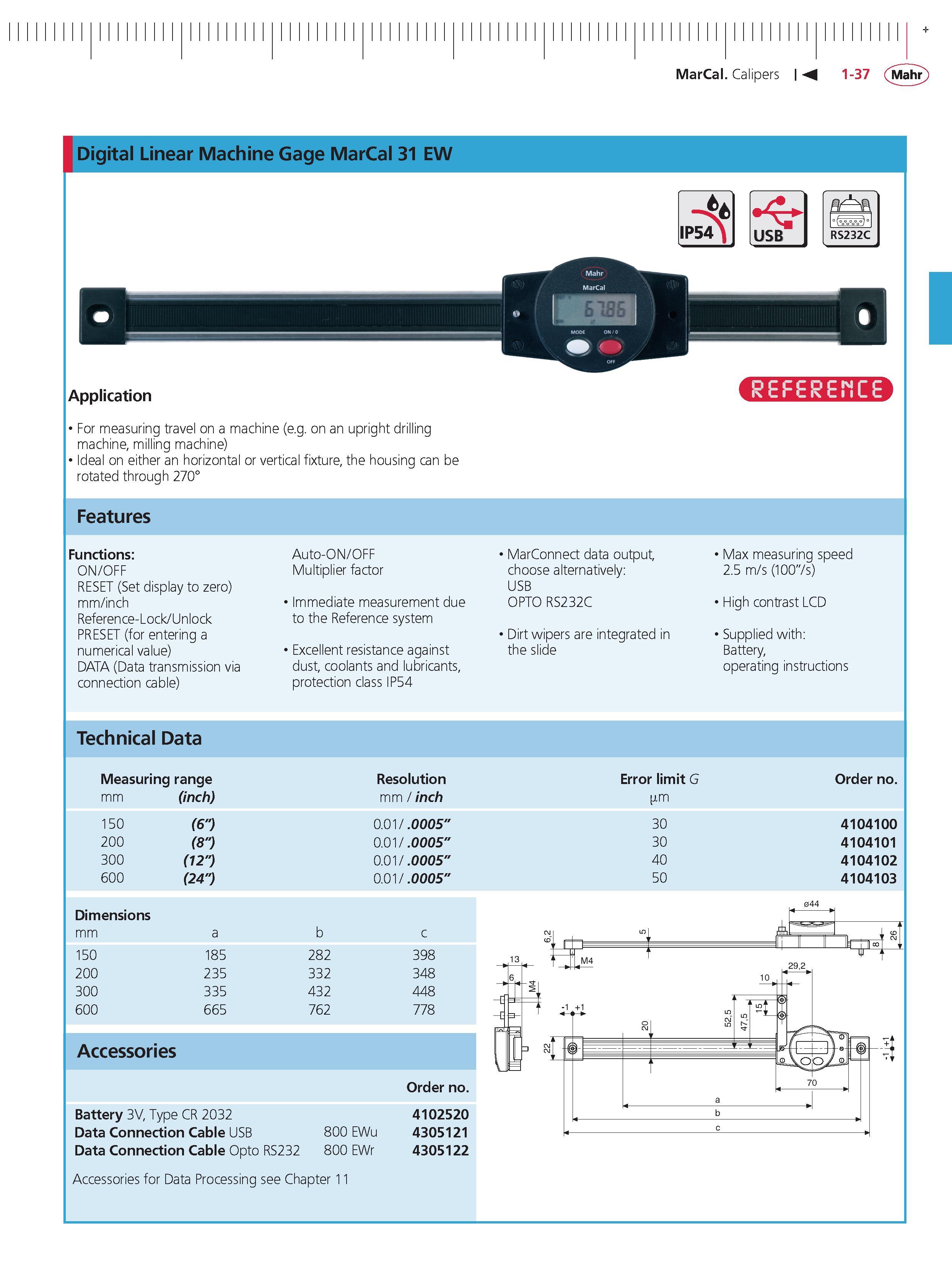

Digital Linear Machine Gage Mahr MarCal 31 EW Application For measuring travel on a machine (e.g. on an upright drilling machine milling machine) Ideal on either an horizontal or vertical fixture the housing can be rotated through 270 Features Functions ON/OFF RESET (Set display to zero) mm inch Reference-Lock Unlock PRESET (for entering a numerical value) DATA (Data transmission via connection cable) Auto-ON/OFF Multiplier factor Immediate measurement due to the Reference system Excellent resistance against dust coolants and lubricants protection class IP54 MarConnect data output choose alternatively USB OPTO RS232C Dirt wipers are integrated in the slide Max measuring speed 2.5 m s (1007s) High contrast LCD Supplied with Battery operating instructions Technical Data Measuring range Resolution error limit G order no. mm (inch) mm inch m 150 (6'") 0.01 .0005" 30 4104100 200 (8") 0.01 .0005" 30 4104101 300 (12") 0.01 .0005" 40 4104102 600 (24") 0.01 .0005" 50 4104103 Dimensions mm 150 200 300 600 a 185 235 335 665 b 282 332 432 762 c 398 348 448 778 accessories Battery 3V Type CR 2032 Data Connection Cable USB Data Connection Cable Opto RS232 800 EWu 800 EWr order no. 4102520 4305121 4305122 Accessories for Data Processing see Chapter 11 MarCal Calipers M 1-37 Mahr Ap A I-SsS)" IP54 USB RS232C
