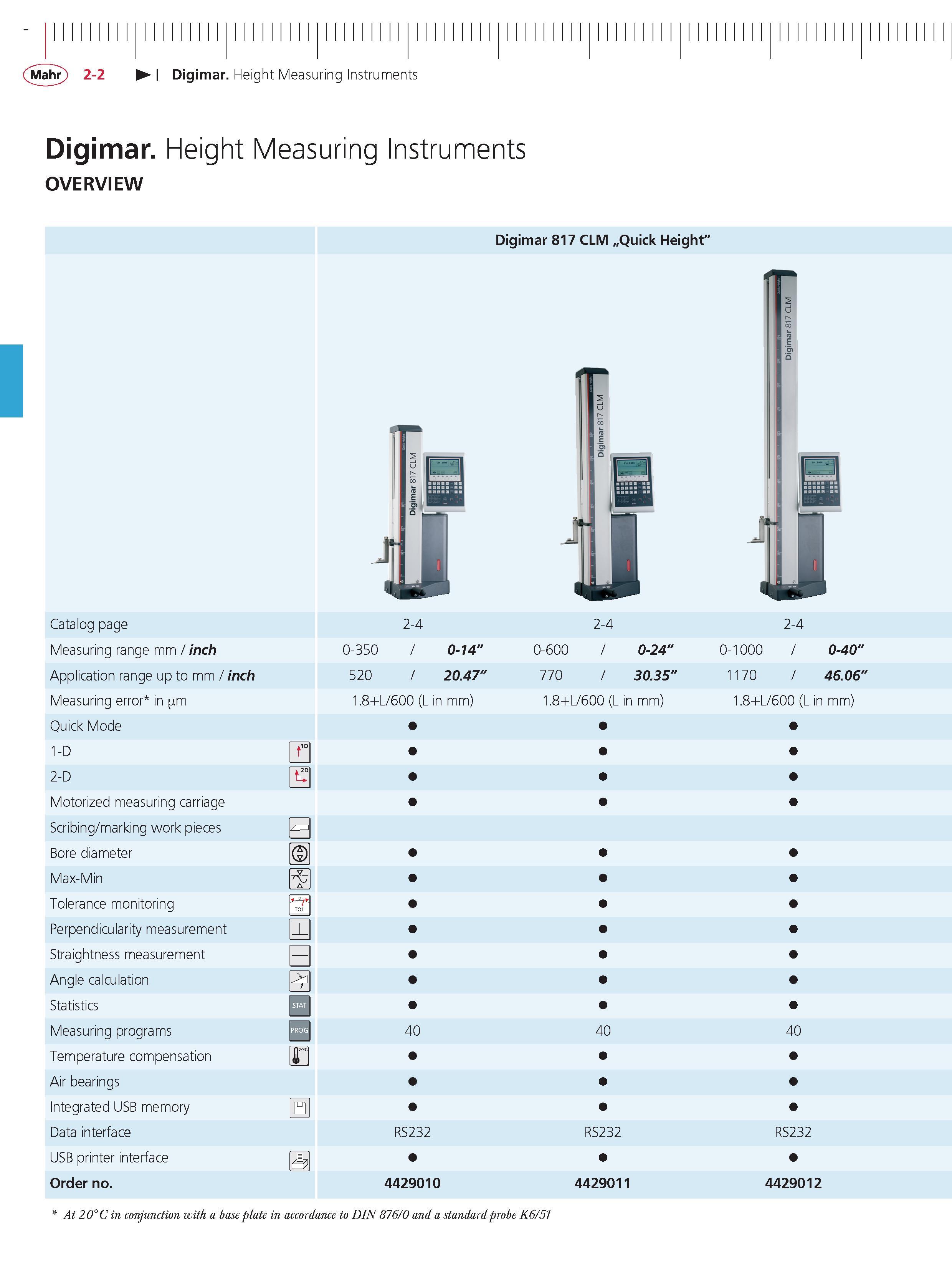

Mahr 2-2 Digimar Height Measuring Instruments Digimar Height Measuring Instruments OVERVIEW Digimar 817 CLM Quick Height" Catalog page 2-4 2-4 2-4 Measuring range mm inch 0-350 0-14" 0-600 0-24" 0-1000 0-40" Application range up to mm inch 520 20.47" 770 30.35" 1170 46.06" Measuring error in m 1.8+L 600 (L in mm) 1.8+L 600 (L in mm) 1.8+L 600 (L in mm) Quick Mode 1-D 1D 2-D z Motorized measuring carriage Scribing marking work pieces Bore diameter Max-Min Tolerance monitoring Perpendicularity measurement 3 Straightness measurement 3 Angle calculation Statistics STAT Measuring programs PROG 40 40 40 Temperature compensation E Air bearings Integrated USB memory 1 Data interface RS232 RS232 RS232 USB printer interface 5 Order no. 4429010 4429011 4429012 At 20 C in conjunction with a base plate in accordance to DIN 876 0 and a standard probe K6 51
