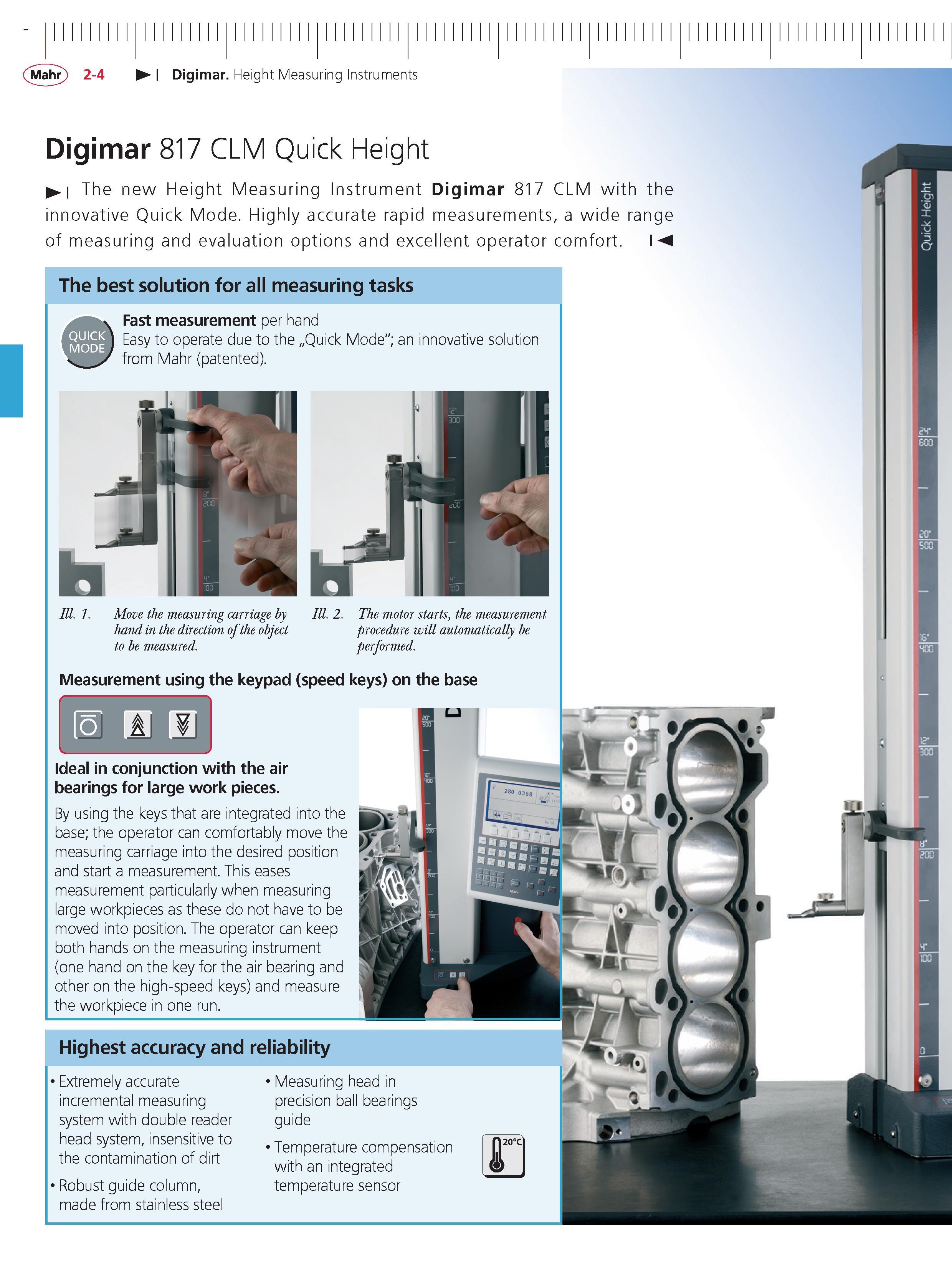

Mahr 2-4 Digimar Height Measuring Instruments Digimar 817 CLM Quick Height The new Height Measuring Instrument Digimar 817 CLM with the innovative Quick Mode. Highly accurate rapid measurements a wide range of measuring and evaluation options and excellent operator comfort. The best solution for all measuring tasks Fast measurement per hand Easy to operate due to the Quick Mode"; an innovative solution from Mahr (patented). III. 1. Move the measuring carriage by hand in the direction ofthe object to be measured Measurement using the keypad (speed keys) on the base ideal in conjunction with the air bearings for large work pieces. By using the keys that are integrated into the base; the operator can comfortably move the measuring carriage into the desired position and start a measurement. This eases measurement particularly when measuring large workpieces as these do not have to be moved into position. The operator can keep both hands on the measuring instrument (one hand on the key for the air bearing and other on the high-speed keys) and measure the workpiece in one run. Highest accuracy and reliability 1 Extremely accurate incremental measuring system with double reader head system insensitive to the contamination of dirt 1 Robust guide column made from stainless steel Measuring head in precision ball bearings guide Temperature compensation with an integrated temperature sensor
