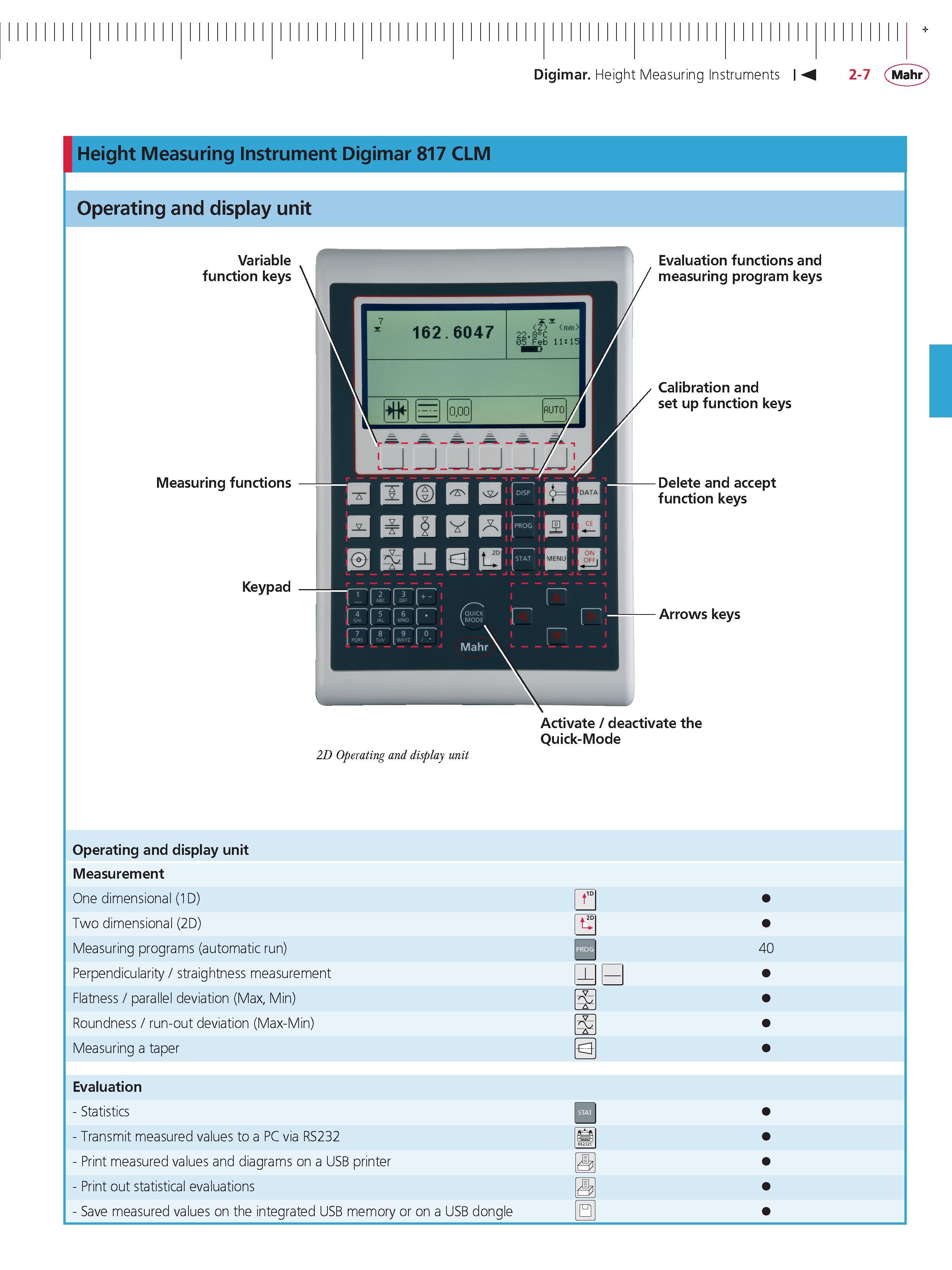

Digimar Height Measuring Instruments M 2-7 Mahr + Height Measuring instrument Digimar 817 CLM Operating and display unit variable function keys Measuring functions Keypad 162.6047 mm 22.8C 05 Feb 11:15 m 000 AUTO Evaluation functions and measuring program keys Calibration and set up function keys Delete and accept function keys Arrows keys 2D Operating and display unit Activate deactivate the Quick-Mode Operating and display unit Measurement One dimensional (1D) Two dimensional (2D) Measuring programs (automatic run) Perpendicularity straightness measurement Flatness parallel deviation (Max Min) Roundness run-out deviation (Max-Min) Measuring a taper Evaluation - Statistics - Transmit measured values to a PC via RS232 - Print measured values and diagrams on a USB printer - Print out statistical evaluations - Save measured values on the integrated USB memory or on a USB dongle CD SB 40
