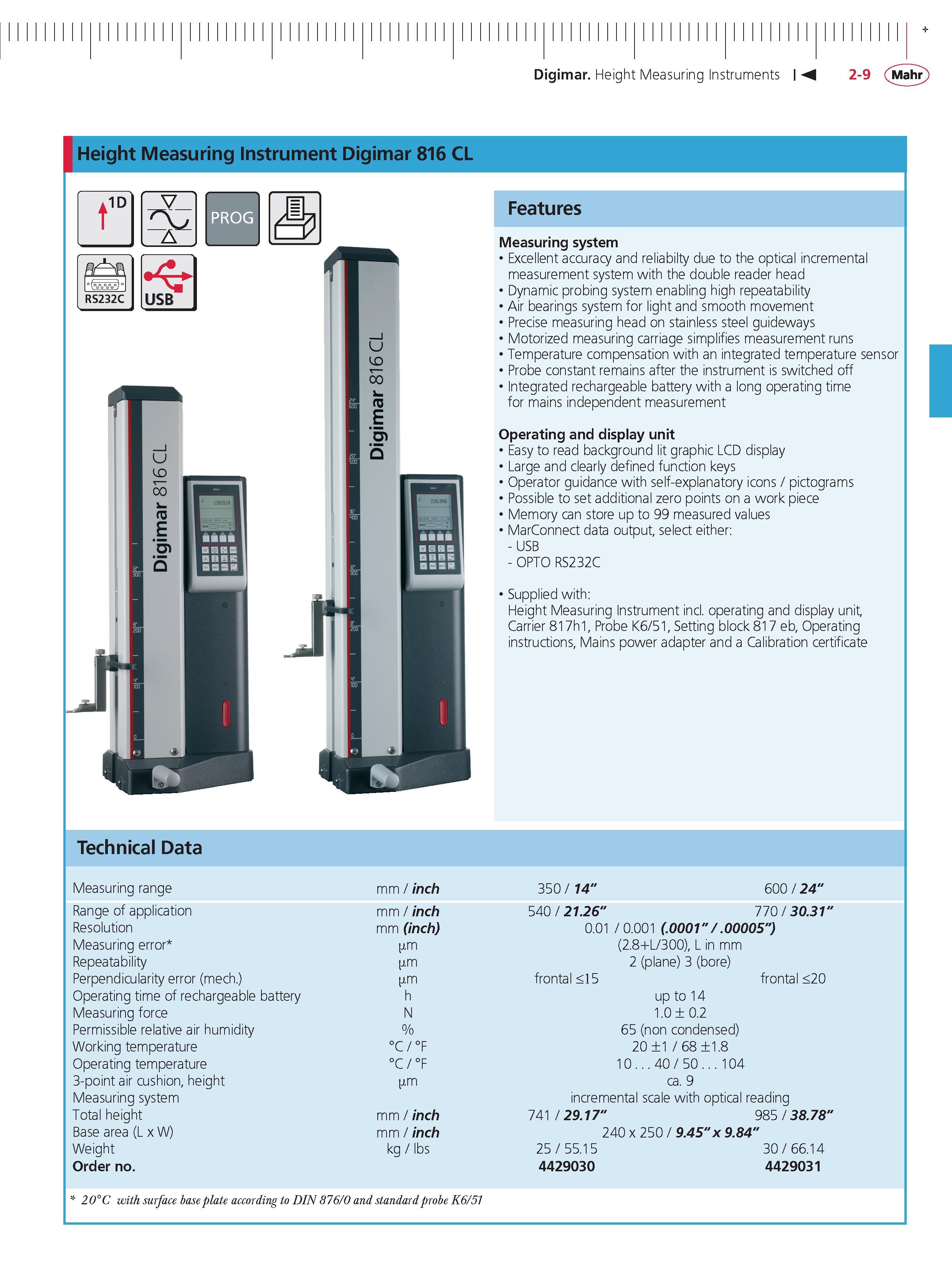

Digimar Height Measuring Instruments M 2-9 Mahr Height Measuring instrument Digimar 816 CL 1D V - RS232C USB Technical Data Features Measuring system Excellent accuracy and reliabilty due to the optical incremental measurement system with the double reader head Dynamic probing system enabling high repeatability Air bearings system for light and smooth movement Precise measuring head on stainless steel guideways Motorized measuring carriage simplifies measurement runs Temperature compensation with an integrated temperature sensor Probe constant remains after the instrument is switched off Integrated rechargeable battery with a long operating time for mains independent measurement Operating and display unit Easy to read background lit graphic LCD display Large and clearly defined function keys Operator guidance with self-explanatory icons pictograms Possible to set additional zero points on a work piece Memory can store up to 99 measured values MarConnect data output select either - USB - OPTO RS232C Supplied with Height Measuring Instrument incl. operating and display unit Carrier 817h1 Probe K6 51 Setting block 817 eb Operating instructions Mains power adapter and a Calibration certificate Measuring range mm inch 350 14" 600 24" Range of application mm inch 540 21.26" 770 30.31 Resolution mm (inch) 0.01 0.001 (.0001" .00005") Measuring error m (2.8+L 300) L in mm Repeatability m 2 (plane) 3 (bore) Perpendicularity error (mech.) m frontal 15 frontal 20 Operating time of rechargeable battery h up to 14 Measuring force N 1.0 0.2 Permissible relative air humidity % 65 (non condensed) Working temperature C F 20 1 68 1.8 Operating temperature C F 10.. . 40 50 . ..104 3-point air cushion height m ca. 9 Measuring system incremental scale with optical reading Total height mm inch 741 29.17" 985 38.78 Base area (L x W) mm inch 240 x 250 9.45" x 9.84" Weight kg lbs 25 55.15 30 66.14 Order no. 4429030 4429031 20 C with surface base plate according to DIN 876 0 and standard probe K6 51 +
