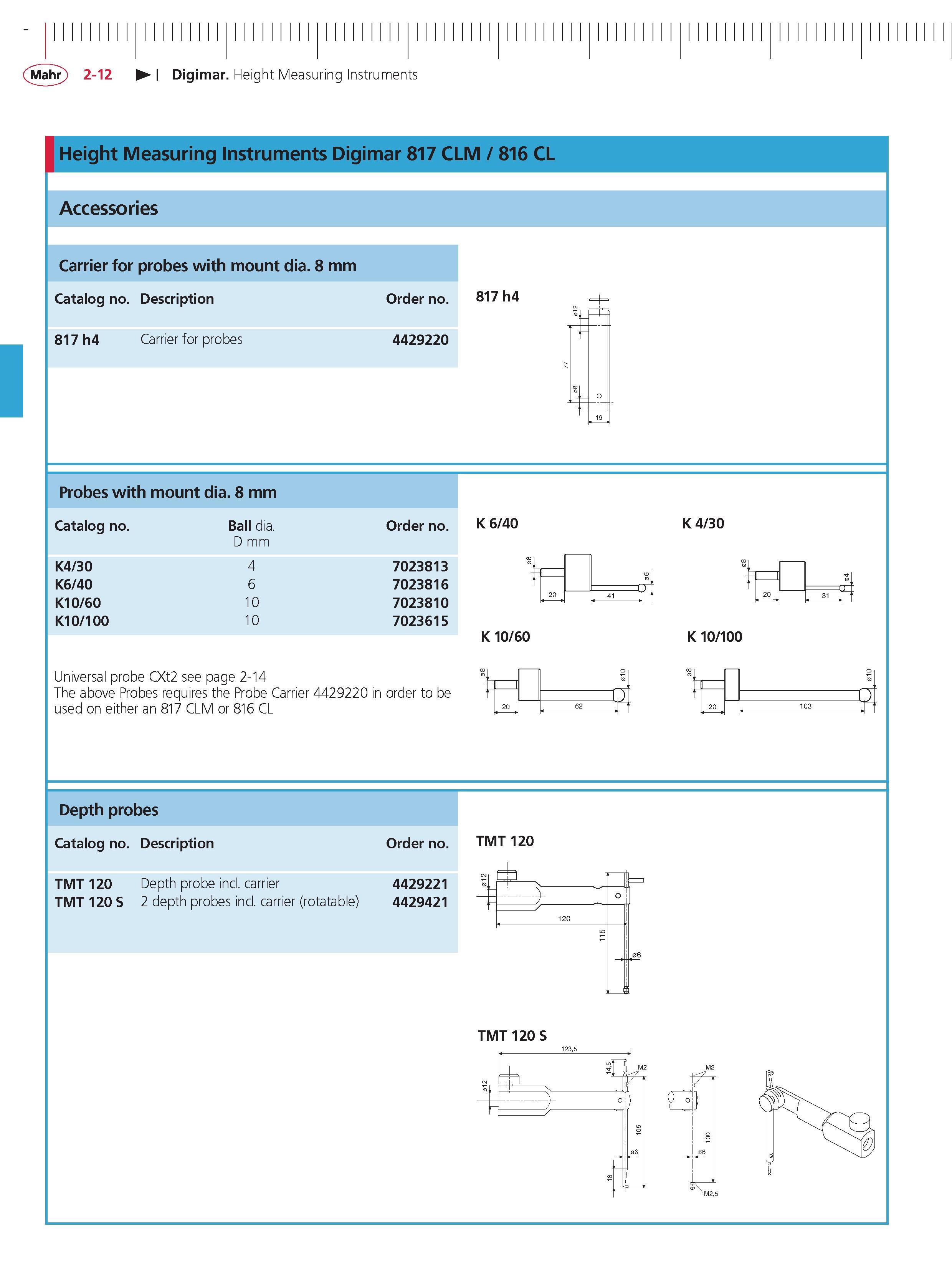

Mahr 2-12 Digimar Height Measuring Instruments Height Measuring instruments Digimar 817 CLM 816 CL Accessories Carrier for probes with mount dia. 8 mm Catalog no. Description 817 h4 Carrier for probes Order no. 817 h4 4429220 - Probes with mount dia. 8 mm Catalog no. K4 30 K6 40 K10 60 K10 100 Universal probe CXt2 see page 2-14 The above Probes requires the Probe Carrier 4429220 in order to be used on either an 817 CLM or 816 CL Ball dia. Order no. D mm 4 7023813 6 7023816 10 7023810 10 7023615 K 6 40 "1 f n4 20 . 41 n K 10 60 K 4 30 HI 20 . 31 .n K 10 100 is J0 t t 20 n r 20 . 62 r . 103 n Depth probes Catalog no. Description Order no. TMT 120 Depth probe incl. carrier 4429221 TMT 120 S 2 depth probes incl. carrier (rotatable) 4429421 TMT 120 TMT 120 S
