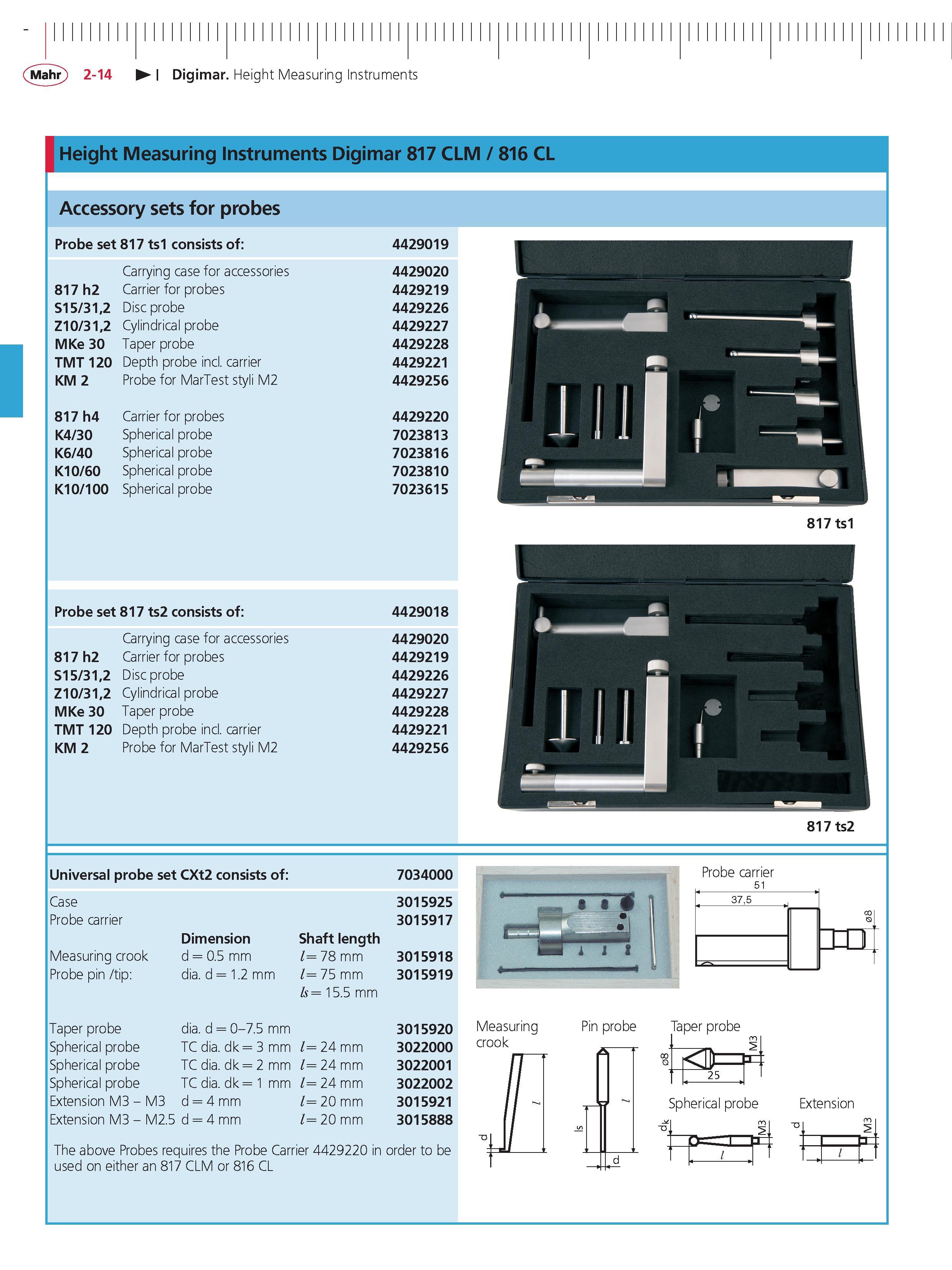

Mahr 2-14 Digimar Height Measuring Instruments Height Measuring instruments Digimar 817 CLM 816 CL Accessory sets for probes Probe set 817 ts1 consists of 4429019 Carrying case for accessories 4429020 817 h2 Carrier for probes 4429219 1 3 5 1 S Disc probe 4429226 1 3 0 1 N Cylindrical probe 4429227 MKe 30 Taper probe 4429228 TMT 120 Depth probe incl. carrier 4429221 KM 2 Probe for MarTest styli M2 4429256 817 h4 Carrier for probes 4429220 K4 30 Spherical probe 7023813 K6 40 Spherical probe 7023816 K10 60 Spherical probe 7023810 K10 100 Spherical probe 7023615 Probe set 817 ts2 consists of 4429018 Carrying case for accessories 4429020 817 h2 Carrier for probes 4429219 1 3 5 1 S Disc probe 4429226 1 3 0 1 N Cylindrical probe 4429227 MKe 30 Taper probe 4429228 TMT 120 Depth probe incl. carrier 4429221 KM 2 Probe for MarTest styli M2 4429256 817 ts1 817 ts2 Universal probe set CXt2 consists of Case Probe carrier Measuring crook Probe pin tip Dimension d 0.5 mm dia. d 1.2 mm Shaft length l 78 mm l 75 mm Is 15.5 mm Taper probe Spherical probe Spherical probe Spherical probe Extension M3 - M3 Extension M3 - M2.5 d 4 mm dia. d 0-7.5 mm TC dia. dk 3 mm TC dia. dk 2 mm TC dia. dk 1 mm d 4 mm 24 mm l 24 mm l 24 mm 20 mm 20 mm 7034000 3015925 3015917 3015918 3015919 3015920 3022000 3022001 3022002 3015921 3015888 Probe carrier 51 . 375 Measuring crook The above Probes requires the Probe Carrier 4429220 in order to be used on either an 817 CLM or 816 CL Pin probe Taper probe 3 25 Spherical probe TCP r Extension d i d
