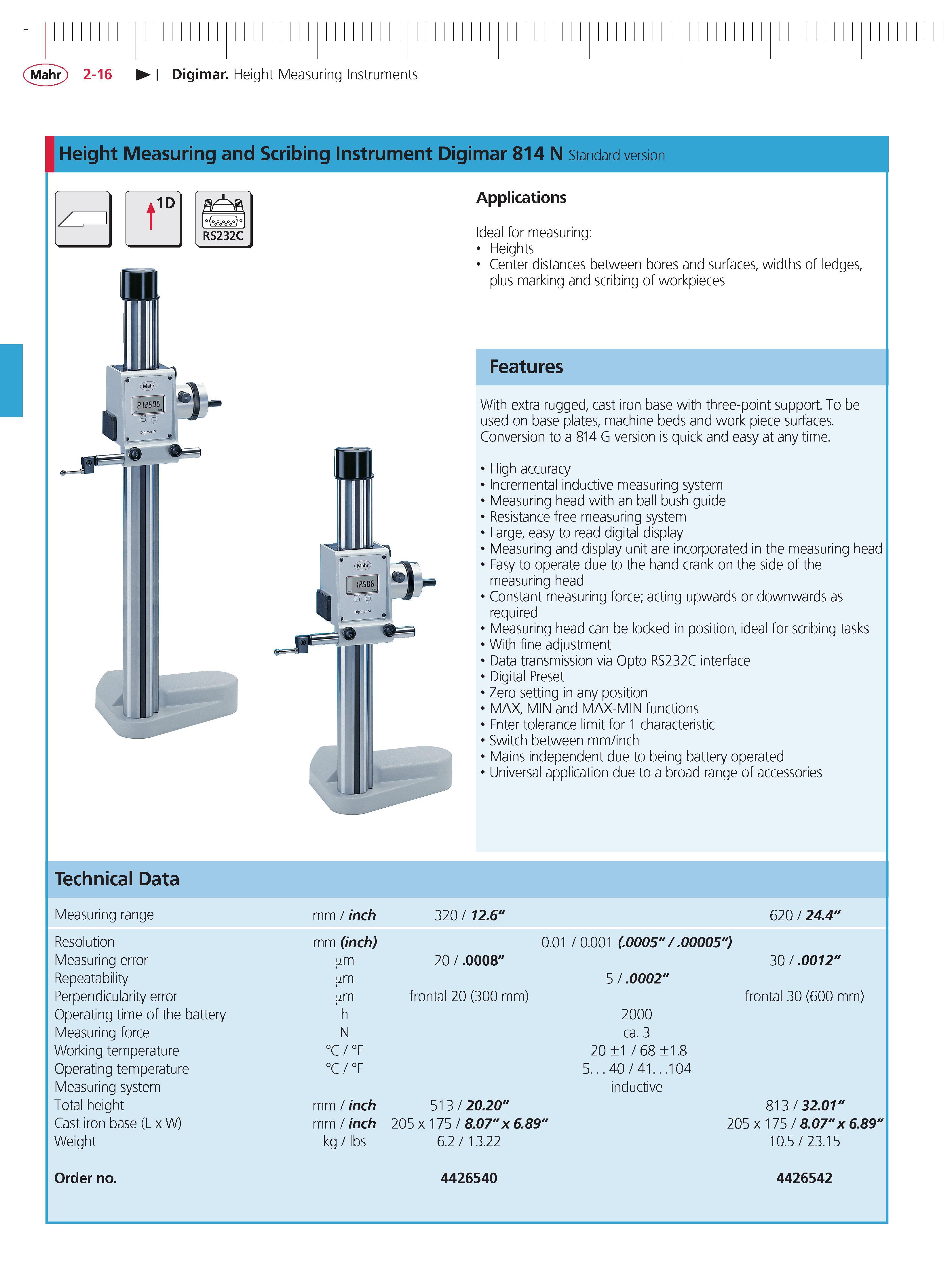

Mahr 2-16 Digimar Height Measuring Instruments Height Measuring and Scribing Instrument Digimar 814 N Standard version Applications Ideal for measuring Heights Center distances between bores and surfaces widths of ledges plus marking and scribing of workpieces Features With extra rugged cast iron base with three-point support. To be used on base plates machine beds and work piece surfaces. Conversion to a 814 G version is quick and easy at any time. High accuracy Incremental inductive measuring system Measuring head with an ball bush guide Resistance free measuring system Large easy to read digital display Measuring and display unit are incorporated in the measuring head Easy to operate due to the hand crank on the side of the measuring head Constant measuring force; acting upwards or downwards as required Measuring head can be locked in position ideal for scribing tasks With fine adjustment Data transmission via Opto RS232C interface Digital Preset Zero setting in any position MAX MIN and MAX-MIN functions Enter tolerance limit for 1 characteristic Switch between mm inch Mains independent due to being battery operated Universal application due to a broad range of accessories Technical Data Measuring range Resolution Measuring error Repeatability Perpendicularity error Operating time of the battery Measuring force Working temperature Operating temperature Measuring system Total height Cast iron base (L x W) Weight Order no. mm inch mm (inch) m m m h N C F C F mm inch mm inch kg lbs 320 12.6" 20 .0008" frontal 20 (300 mm) 0.01 0.001 (.0005" .00005") 5 .0002" 2000 ca. 3 20 1 68 1.8 5. 40 41. . .104 inductive 620 24.4" 30 .0012" frontal 30 (600 mm) 513 20.20" 205 x 175 8.07" x 6.89" 6.2 13.22 4426540 813 32.01" 205 x 175 8.07" x 6.89" 10.5 23.15 4426542
