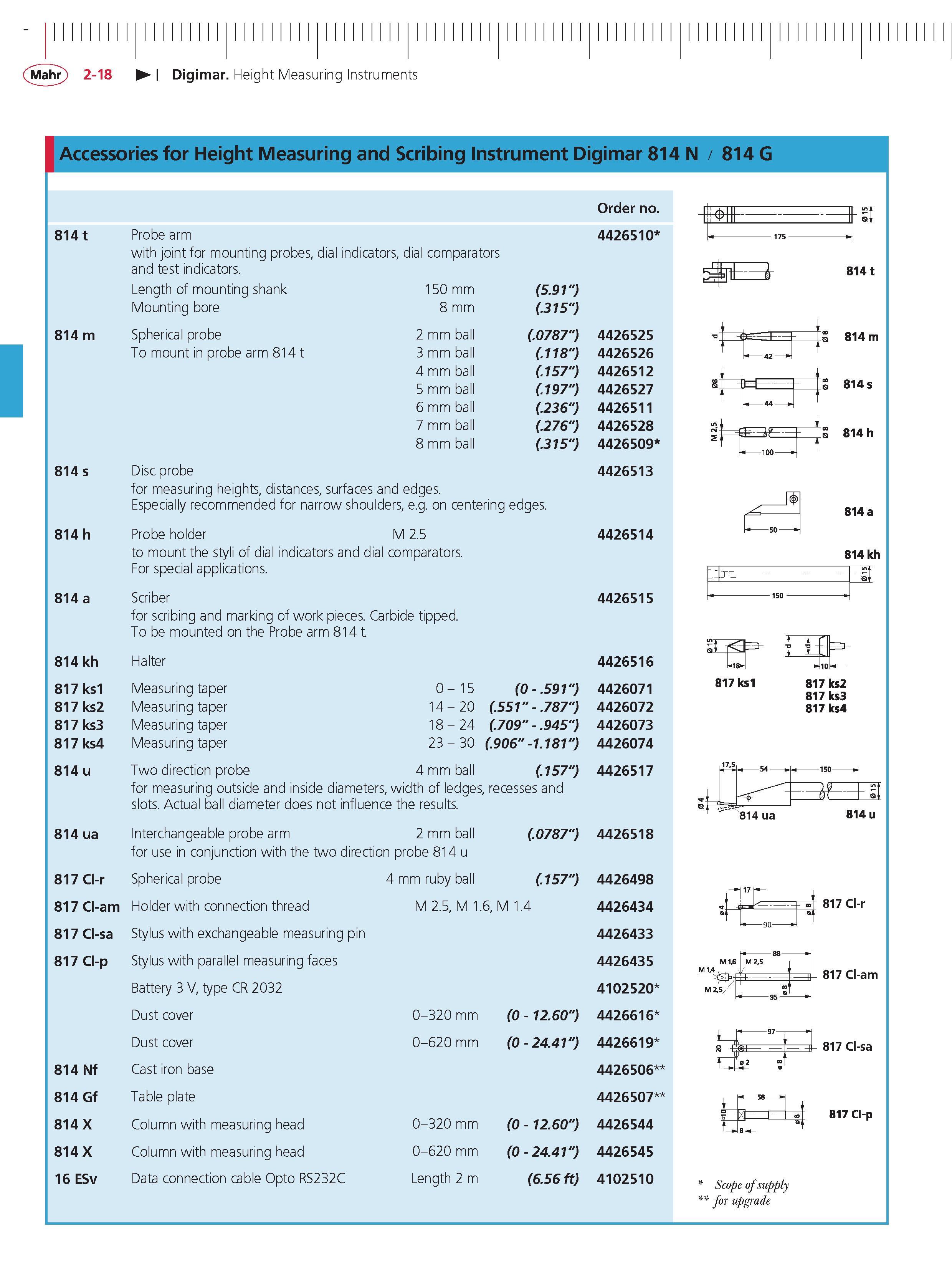

Mahr 2-18 Digimar Height Measuring Instruments Accessories for Height Measuring and Scribing instrument Digimar 814 N 814 G 814 t Probe arm with joint for mounting probes dial indicators dial comparators and test indicators. Order no. 4426510 Length of mounting shank 150 mm (5.91") Mounting bore 8 mm (.315") 814 m Spherical probe 2 mm ball (.0787") 4426525 To mount in probe arm 814 t 3 mm ball (.118") 4426526 4 mm ball (.157") 4426512 5 mm ball (.197") 4426527 6 mm ball (.236") 4426511 7 mm ball (.276") 4426528 8 mm ball (.315") 4426509 814 s Disc probe 4426513 for measuring heights distances surfaces and edges. Especially recommended for narrow shoulders e.g. on centering edges. 814 h Probe holder M 2.5 to mount the styli of dial indicators and dial comparators. For special applications. 4426514 814 a Scriber for scribing and marking of work pieces. Carbide tipped. To be mounted on the Probe arm 814 t. 4426515 814 kh Halter 4426516 817 ks1 817 ks2 817 ks3 817 ks4 Measuring taper Measuring taper Measuring taper Measuring taper 0 - 15 14 - 20 18 - 24 23 - 30 (0 - .591") (.551" - .787") (.709" - .945") (.906" -1.181") 4426071 4426072 4426073 4426074 814 u Two direction probe 4 mm ball (.157") for measuring outside and inside diameters width of ledges recesses and slots. Actual ball diameter does not influence the results. 4426517 814 ua Interchangeable probe arm 2 mm ball for use in conjunction with the two direction probe 814 u (.0787") 4426518 817 Cl-r Spherical probe 4 mm ruby ball (.157") 4426498 817 Cl-am Holder with connection thread M 2.5 M 1.6 M 1.4 4426434 817 Cl-sa Stylus with exchangeable measuring pin 4426433 817 Cl-p Stylus with parallel measuring faces Battery 3 V type CR 2032 4426435 4102520 Dust cover 0-320 mm (0 - 12.60") 4426616 Dust cover 0-620 mm (0 - 24.41") 4426619 814 Nf Cast iron base 4426506 814 Gf Table plate 4426507 814 X Column with measuring head 0-320 mm (0 -12.60") 4426544 814 X Column with measuring head 0-620 mm (0 - 24.41") 4426545 16 ESv Data connection cable Opto RS232C Length 2 m (6.56 ft) 4102510 8141 814 m S 814 s 814 h 814 a 814 kh -pN- 015 150 817 ks1 817 ks2 817 ks3 817 ks4 814 ua n17 Scope of supply for upgrade 814 u 817 Cl-r 817 Cl-am 817 Cl-sa 817 Cl-p
