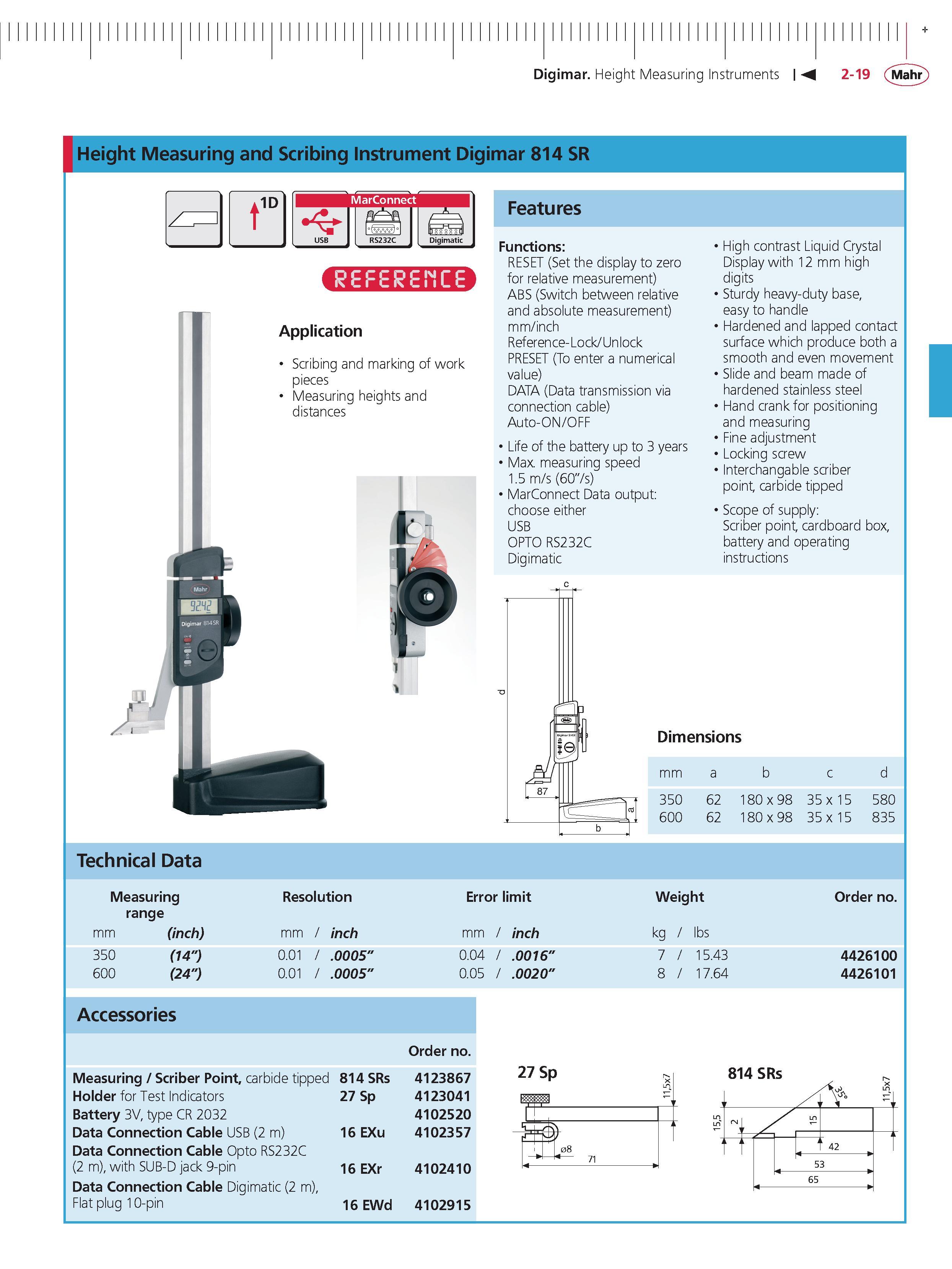

Digimar Height Measuring Instruments 2-19 Mahr Height Measuring and Scribing instrument Digimar 814 SR t 1D MarConnect Features Application Scribing and marking of work pieces Measuring heights and distances Functions RESET (Set the display to zero for relative measurement) ABS (Switch between relative and absolute measurement) mm inch Reference-Lock Unlock PRESET (To enter a numerical value) DATA (Data transmission via connection cable) Auto-ON/OFF Life of the battery up to 3 years Max. measuring speed 1.5 m s (60" s) MarConnect Data output choose either USB OPTO RS232C Digimatic High contrast Liquid Crystal Display with 12 mm high digits Sturdy heavy-duty base easy to handle Hardened and lapped contact surface which produce both a smooth and even movement Slide and beam made of hardened stainless steel Hand crank for positioning and measuring Fine adjustment Locking screw Interchangable scriber point carbide tipped Scope of supply Scriber point cardboard box battery and operating instructions Dimensions mm a b c d 350 62 180 x 98 35 x 15 580 600 62 180 x 98 35 x 15 835 Technical Data Measuring range mm (inch) 350 (14") 600 (24") Resolution mm inch 0.01 .0005" 0.01 .0005" Error limit mm inch 0.04 .0016" 0.05 .0020" weight kg lbs 7 15.43 8 17.64 Order no. 4426100 4426101 Accessories Measuring Scriber Point carbide tipped 814 SRs Order no. 4123867 Holder for Test Indicators 27 Sp 4123041 Battery 3V type CR 2032 4102520 Data Connection Cable USB (2 m) 16 EXu 4102357 Data Connection Cable Opto RS232C (2 m) with SUB-D jack 9-pin 16 eXr 4102410 Data Connection Cable Digimatic (2 m) Flat plug 10-pin 16 ewd 4102915 27 Sp 08 71
