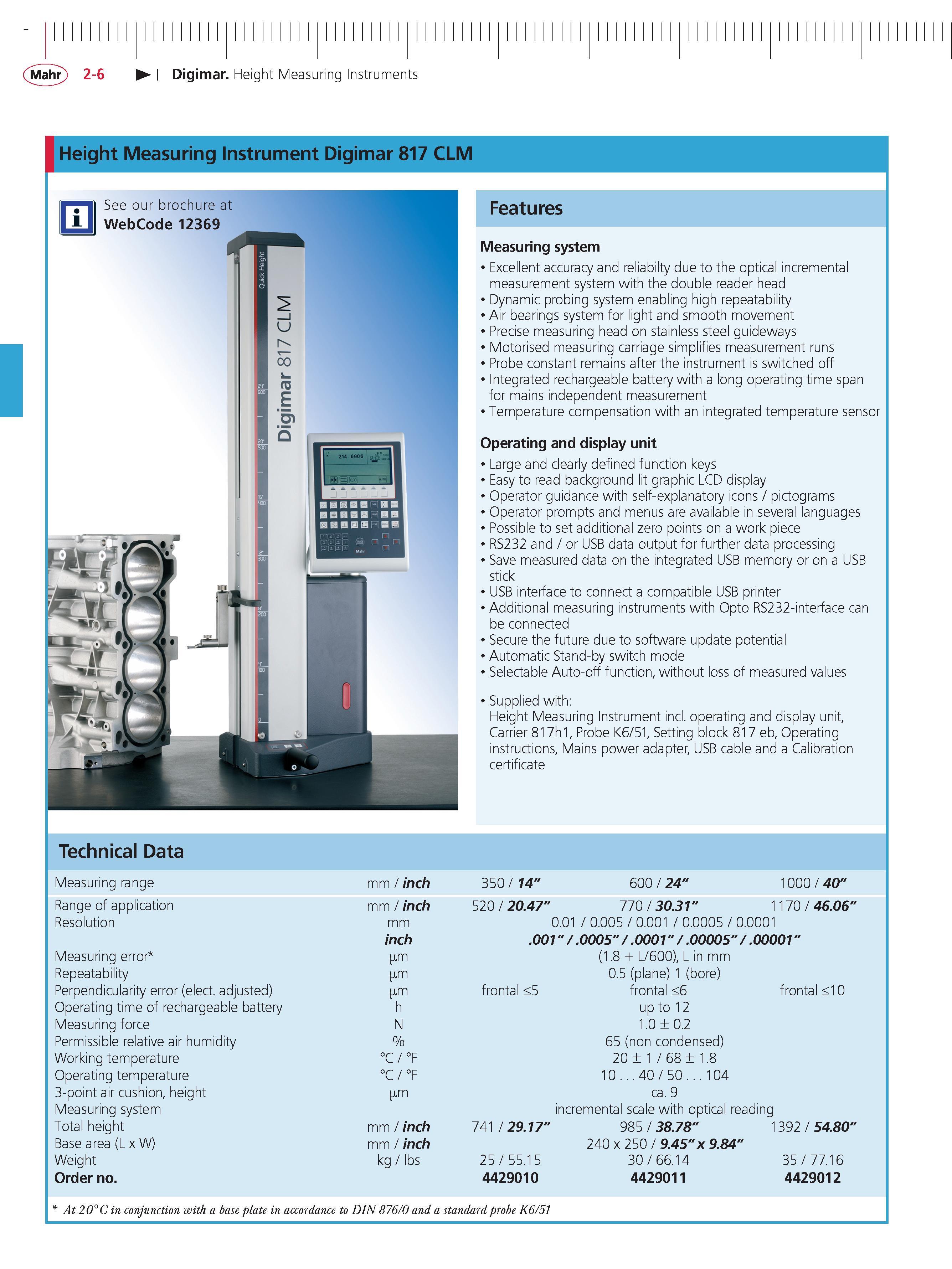

Mahr 2-6 Digimar Height Measuring Instruments Height Measuring instrument Digimar 817 CLM m See our brochure at webCode12369 Features 214.6906 MSH'H Measuring system Excellent accuracy and reliabilty due to the optical incremental measurement system with the double reader head Dynamic probing system enabling high repeatability Air bearings system for light and smooth movement Precise measuring head on stainless steel guideways Motorised measuring carriage simplifies measurement runs Probe constant remains after the instrument is switched off Integrated rechargeable battery with a long operating time span for mains independent measurement Temperature compensation with an integrated temperature sensor Operating and display unit Large and clearly defined function keys Easy to read background lit graphic LCD display Operator guidance with self-explanatory icons pictograms Operator prompts and menus are available in several languages Possible to set additional zero points on a work piece RS232 and or USB data output for further data processing Save measured data on the integrated USB memory or on a USB stick USB interface to connect a compatible USB printer Additional measuring instruments with Opto RS232-interface can be connected Secure the future due to software update potential Automatic Stand-by switch mode Selectable Auto-off function without loss of measured values Supplied with Height Measuring Instrument incl. operating and display unit Carrier 817h1 Probe K6 51 Setting block 817 eb Operating instructions Mains power adapter USB cable and a Calibration certificate Technical Data Measuring range Range of application Resolution Measuring error Repeatability Perpendicularity error (elect. adjusted) Operating time of rechargeable battery Measuring force Permissible relative air humidity Working temperature Operating temperature 3-point air cushion height Measuring system Total height Base area (L x W) Weight Order no. mm inch mm inch mm inch m m m h N % C F C F m 350 14 600 24 1000 40 mm inch mm inch kg lbs 520 20.47 770 30.31 1170 46.06 0.01 0.005 0.001 0.0005 0.0001 .001 .0005 .0001 .00005 .00001 (1.8 + L 600) L in mm 0.5 (plane) 1 (bore) frontal 5 frontal 6 frontal 10 up to 12 1.0 0.2 65 (non condensed) 20 1 68 1.8 10 . 40 50 .104 ca. 9 incremental scale with optical reading 741 29.17 985 38.78 1392 54.80 240 x 250 9.45x 9.84 25 55.15 30 66.14 35 77.16 4429010 4429011 4429012 At 20 C in conjunction with a base plate in accordance to DIN 876 0 and a standard probe K6 51
