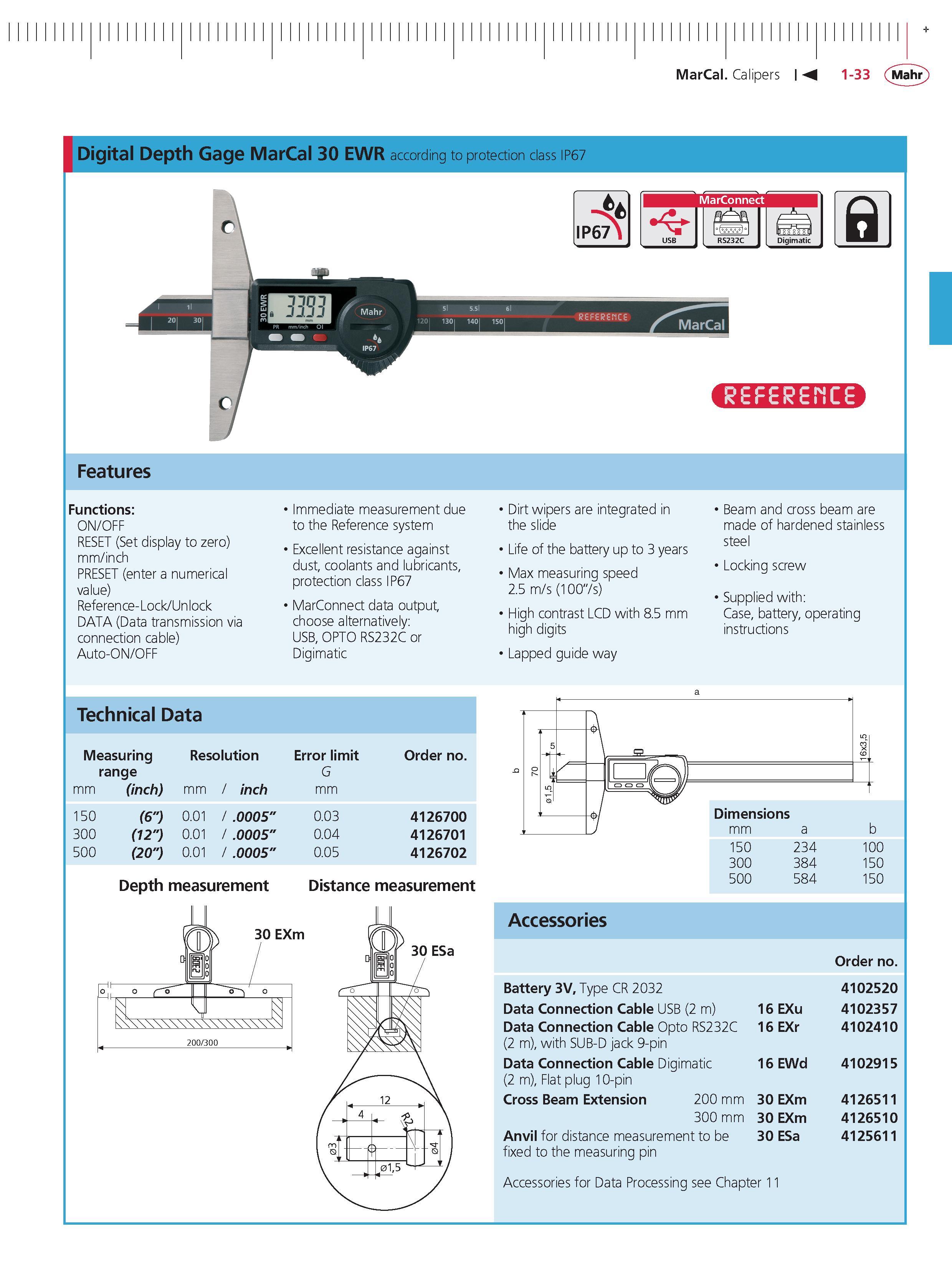

MarCal Calipers M 1-33 Mahr Digital Depth Gage MarCal 30 EWR according to protection class IP67 a Features Functions ON/OFF RESET (Set display to zero) mm inch PRESET (enter a numerical value) Reference- Lock Unlock DATA (Data transmission via connection cable) Auto-ON/OFF Immediate measurement due to the Reference system Excellent resistance against dust coolants and lubricants protection class IP67 MarConnect data output choose alternatively USB OPTO RS232C or Digimatic Dirt wipers are integrated in the slide Life of the battery up to 3 years Max measuring speed 2.5 m s (1007s) High contrast LCD with 8.5 mm high digits Lapped guide way Beam and cross beam are made of hardened stainless steel Locking screw Supplied with Case battery operating instructions Technical Data Measuring resolution error limit order no. range G mm (inch) mm inch mm 150 (6") 0.01 .0005" 0.03 4126700 300 (12") 0.01 .0005" 0.04 4126701 500 (20") 0.01 .0005" 0.05 4126702 Depth measurement Distance measurement 30 ESa Dimensions mm a b 150 234 100 300 384 150 500 584 150 Accessories Battery 3v Type CR 2032 Data Connection Cable USB (2 m) Data Connection Cable Opto RS232C (2 m) with SUB-D jack 9-pin Data Connection Cable Digimatic (2 m) Flat plug 10-pin Cross Beam extension 200 mm 300 mm anvil for distance measurement to be fixed to the measuring pin Accessories for Data Processing see Chapter 11 order no. 4102520 16 EXu 4102357 16 eXr 4102410 16 ewd 4102915 30 eXm 4126511 30 eXm 4126510 30 eSa 4125611 +
