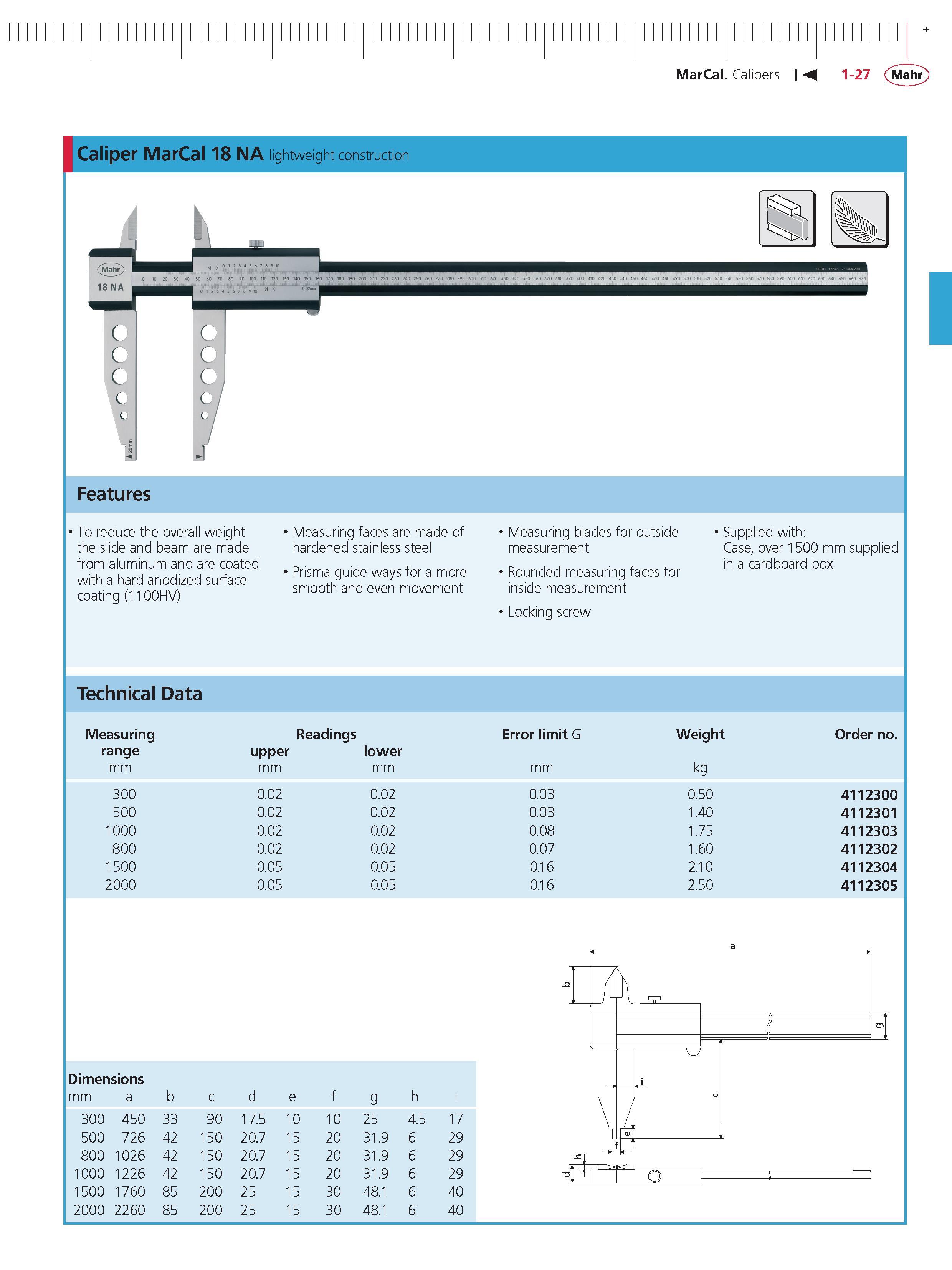

Mahr Caliper MarCal 18 NA lightweight construction Features To reduce the overall weight the slide and beam are made from aluminum and are coated with a hard anodized surface coating (1100HV) Measuring faces are made of hardened stainless steel Prisma guide ways for a more smooth and even movement Measuring blades for outside measurement Rounded measuring faces for inside measurement Locking screw Supplied with Case over 1500 mm supplied in a cardboard box Technical Data Measuring range upper Readings lower Error limit G weight order no. mm mm mm mm kg 300 0.02 0.02 0.03 0.50 4112300 500 0.02 0.02 0.03 1.40 4112301 1000 0.02 0.02 0.08 1.75 4112303 800 0.02 0.02 0.07 1.60 4112302 1500 0.05 0.05 0.16 2.10 4112304 2000 0.05 0.05 0.16 2.50 4112305 Dimensions mm a b c d e f g h i 300 450 33 90 17.5 10 10 25 4.5 17 500 726 42 150 20.7 15 20 31.9 6 29 800 1026 42 150 20.7 15 20 31.9 6 29 1000 1226 42 150 20.7 15 20 31.9 6 29 1500 1760 85 200 25 15 30 48.1 6 40 2000 2260 85 200 25 15 30 48.1 6 40 MarCal Calipers M 1-27
