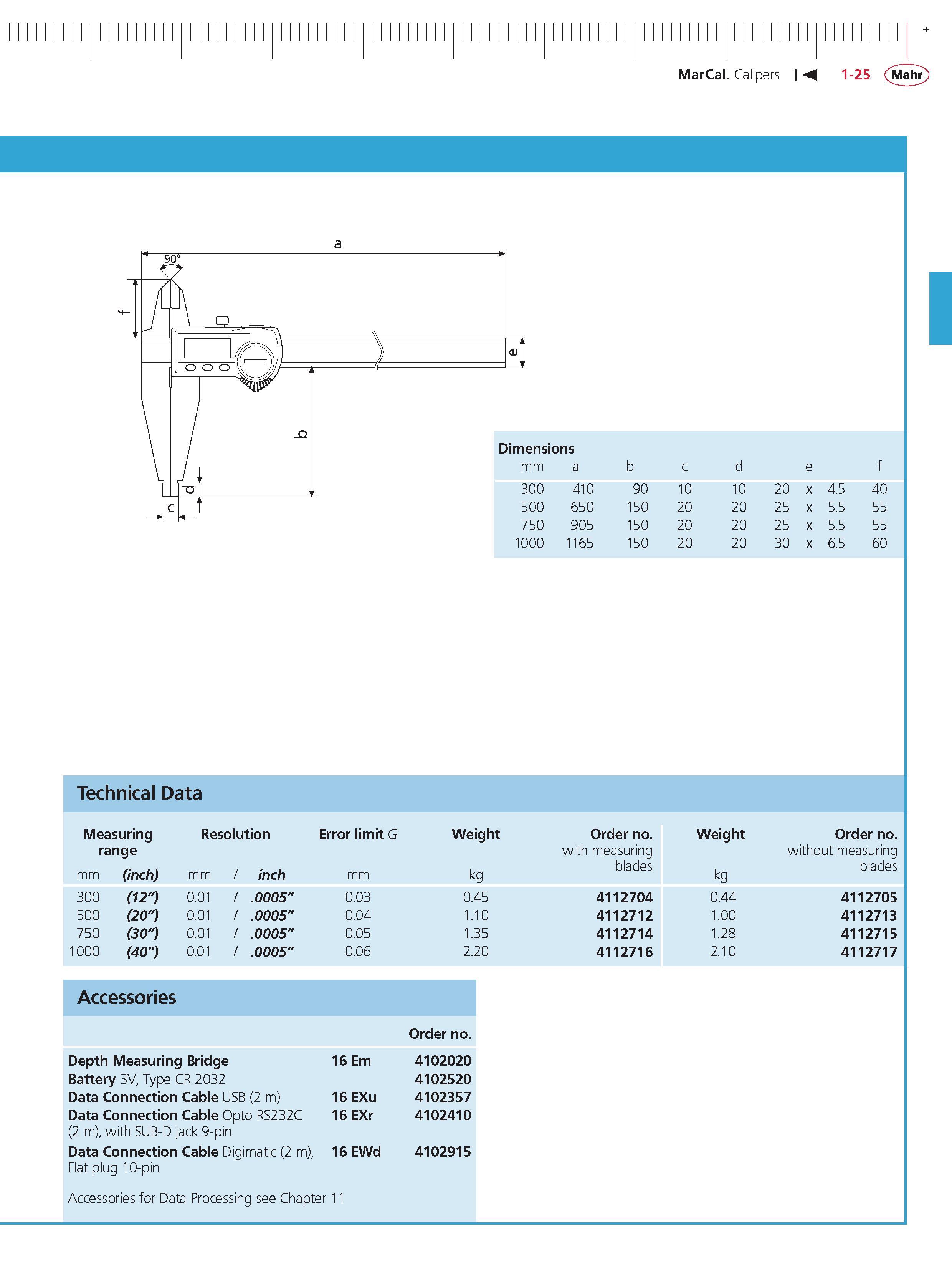

MarCal Calipers M 1-25 Mahr Dimensions mm a b c d e f 300 410 90 10 10 20 x 4.5 40 500 650 150 20 20 25 x 5.5 55 750 905 150 20 20 25 x 5.5 55 1000 1165 150 20 20 30 x 6.5 60 + Technical Data Measuring Resolution Error limit G weight order no. weight order no. range with measuring without measuring blades blades mm (inch) mm inch mm kg g k 300 (12") 0.01 .0005" 0.03 0.45 4112704 0.44 4112705 500 (20") 0.01 .0005" 0.04 1.10 4112712 1.00 4112713 750 (30") 0.01 .0005" 0.05 1.35 4112714 1.28 4112715 1000 (40") 0.01 .0005" 0.06 2.20 4112716 2.10 4112717 Accessories order no. Depth Measuring Bridge 16 em 4102020 Battery 3V Type CR 2032 4102520 Data Connection Cable USB (2 m) 16 EXu 4102357 Data Connection Cable Opto RS232C (2 m) with SUB-D jack 9-pin 16 eXr 4102410 Data Connection Cable Digimatic (2 m) Flat plug 10-pin 16 ewd 4102915 Accessories for Data Processing see Chapter 11
