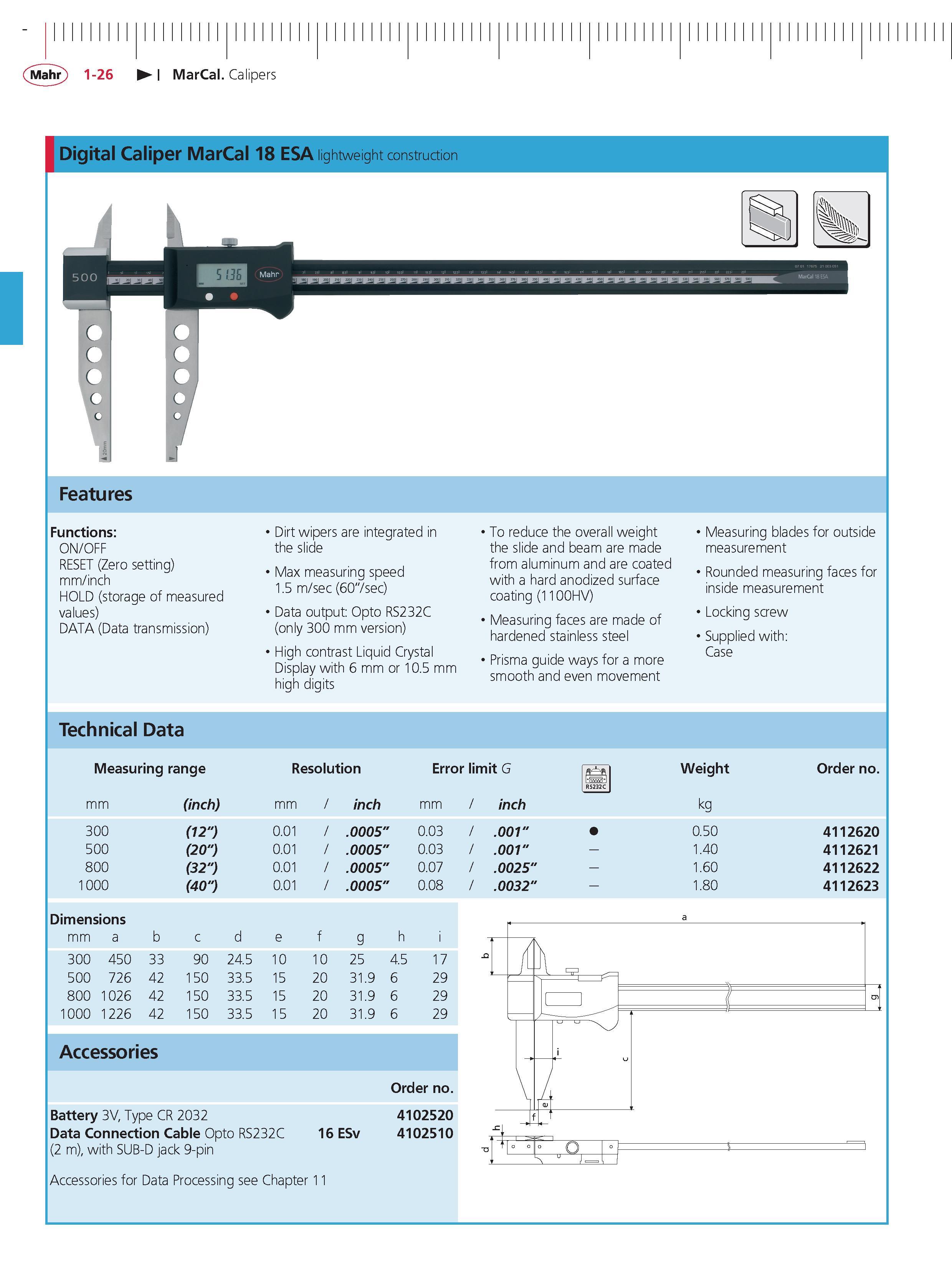

Digital Caliper Mahr MarCal 18 ESA lightweight construction Features Functions ON/OFF RESET (Zero setting) mm inch HOLD (storage of measured values) DATA (Data transmission) Dirt wipers are integrated in the slide Max measuring speed 1.5 m sec (60" sec) Data output Opto RS232C (only 300 mm version) High contrast Liquid Crystal Display with 6 mm or 10.5 mm high digits To reduce the overall weight the slide and beam are made from aluminum and are coated with a hard anodized surface coating (1100HV) Measuring faces are made of hardened stainless steel Prisma guide ways for a more smooth and even movement Measuring blades for outside measurement Rounded measuring faces for inside measurement Locking screw Supplied with Case Technical Data Measuring range Resolution error limit G mm (inch) mm inch mm inch 300 (12") 0.01 .0005' 0.03 .001" 500 (20") 0.01 .0005' 0.03 .001" 800 (32") 0.01 .0005' 0.07 .0025 1000 (40") 0.01 .0005' 0.08 .0032 Dimensions mm a b c d e f g h i 300 450 33 90 24.5 10 10 25 4.5 17 .0 500 726 42 150 33.5 15 20 31.9 6 29 J 800 1026 42 150 33.5 15 20 31.9 6 29 1000 1226 42 150 33.5 15 20 31.9 6 29 weight kg 0.50 1.40 1.60 1.80 order no. 4112620 4112621 4112622 4112623 Accessories Battery 3V Type CR 2032 Data Connection Cable Opto RS232C (2 m) with SUB-D jack 9-pin 16 ESv order no. 4102520 4102510 u t 1 U J Accessories for Data Processing see Chapter 11 Mahr 1-26 MarCal Calipers
