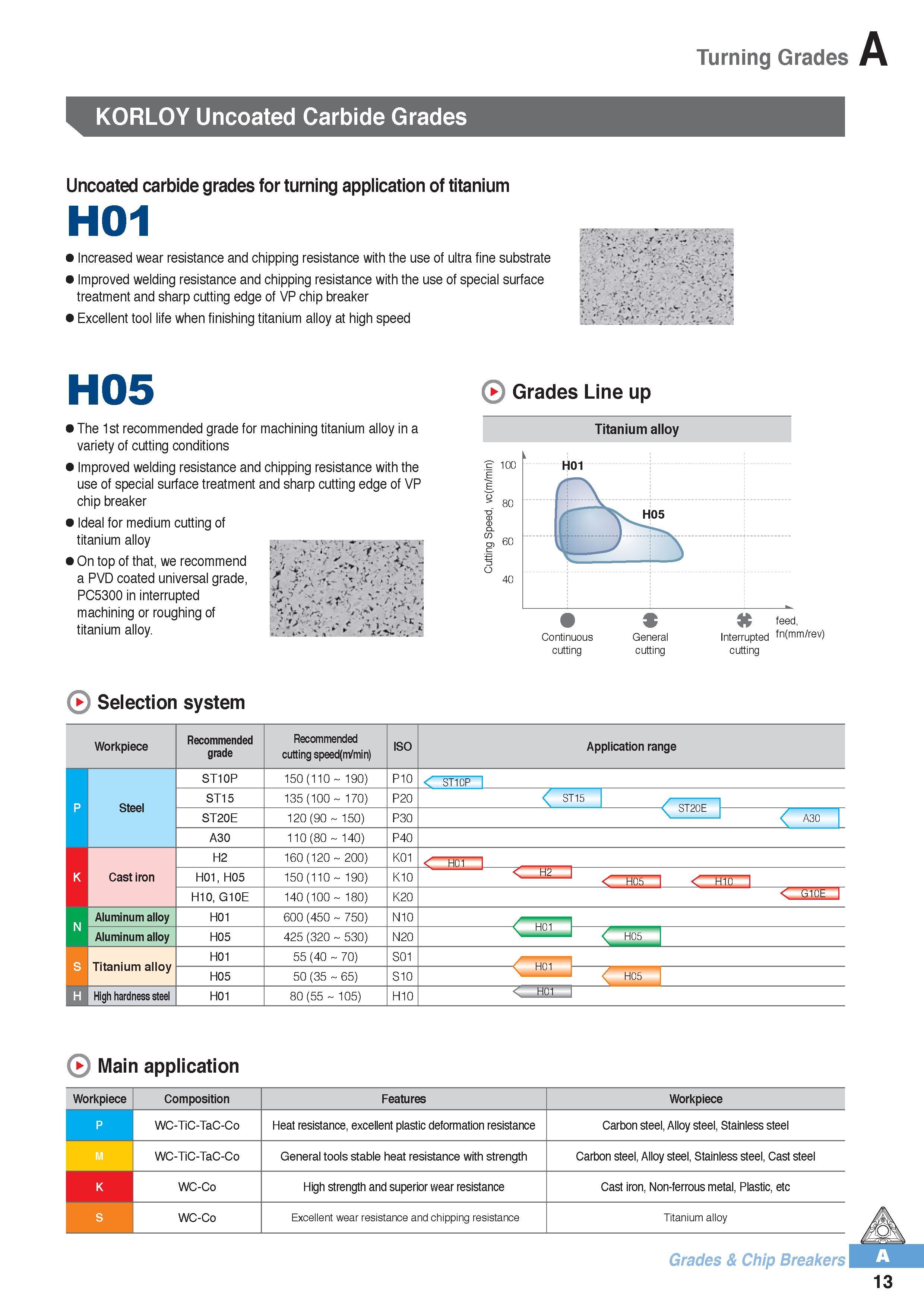

Uncoated carbide grades for turning application of titanium H01 Increased wear resistance and chipping resistance with the use of ultra fine substrate Improved welding resistance and chipping resistance with the use of special surface treatment and sharp cutting edge of VP chip breaker Excellent tool life when finishing titanium alloy at high speed H05 The 1st recommended grade for machining titanium alloy in a variety of cutting conditions Improved welding resistance and chipping resistance with the use of special surface treatment and sharp cutting edge of VP chip breaker Ideal for medium cutting of titanium alloy On top of that, we recommend a PVD coated universal grade, PC5300 in interrupted machining or roughing of titanium alloy. Grades Line up 1= 10C E 1 Q > 80 60 40 Titanium alloy H01 Continuous General cutting cutting feed, Interrupted fn(mm/rev) cutting Selection system Workpiece Recommended grade Recommended cutting speed(m/min) ISO Application range Steel ST10P 150 (110 190) P10 ST10P ST15 135 (100 170) P20 ST15 ST20E 120 (90 150) P30 A30 A30 110 (80 140) P40 Cast iron H2 160 (120 200) K01 H01 H01, H05 150 (110 190) K10 H05 H10 H10, G10E 140 (100 180) K20 G10E Aluminum alloy H01 600 (450 750) N10 Aluminum alloy H05 425 (320 530) N20 1 H05 Titanium alloy H01 55 (40 70) S01 H05 50 (35 65) S10 H05 High hardness steel H01 80 (55 105) H10 H01 Main application Workpiece Composition Features Workpiece P WC-TiC-TaC-Co Heat resistance, excellent plastic deformation resistance Carbon steel, Alloy steel, Stainless steel M WC-TiC-TaC-Co General tools stable heat resistance with strength Carbon steel, Alloy steel, Stainless steel, Cast steel K WC-Co High strength and superior wear resistance Cast iron, Non-ferrous metal, Plastic, etc S WC-Co Excellent wear resistance and chipping resistance Titanium alloy Grades & Chip Breakers 13 H Turning Grades KORLOY Uncoated Carbide Grades
