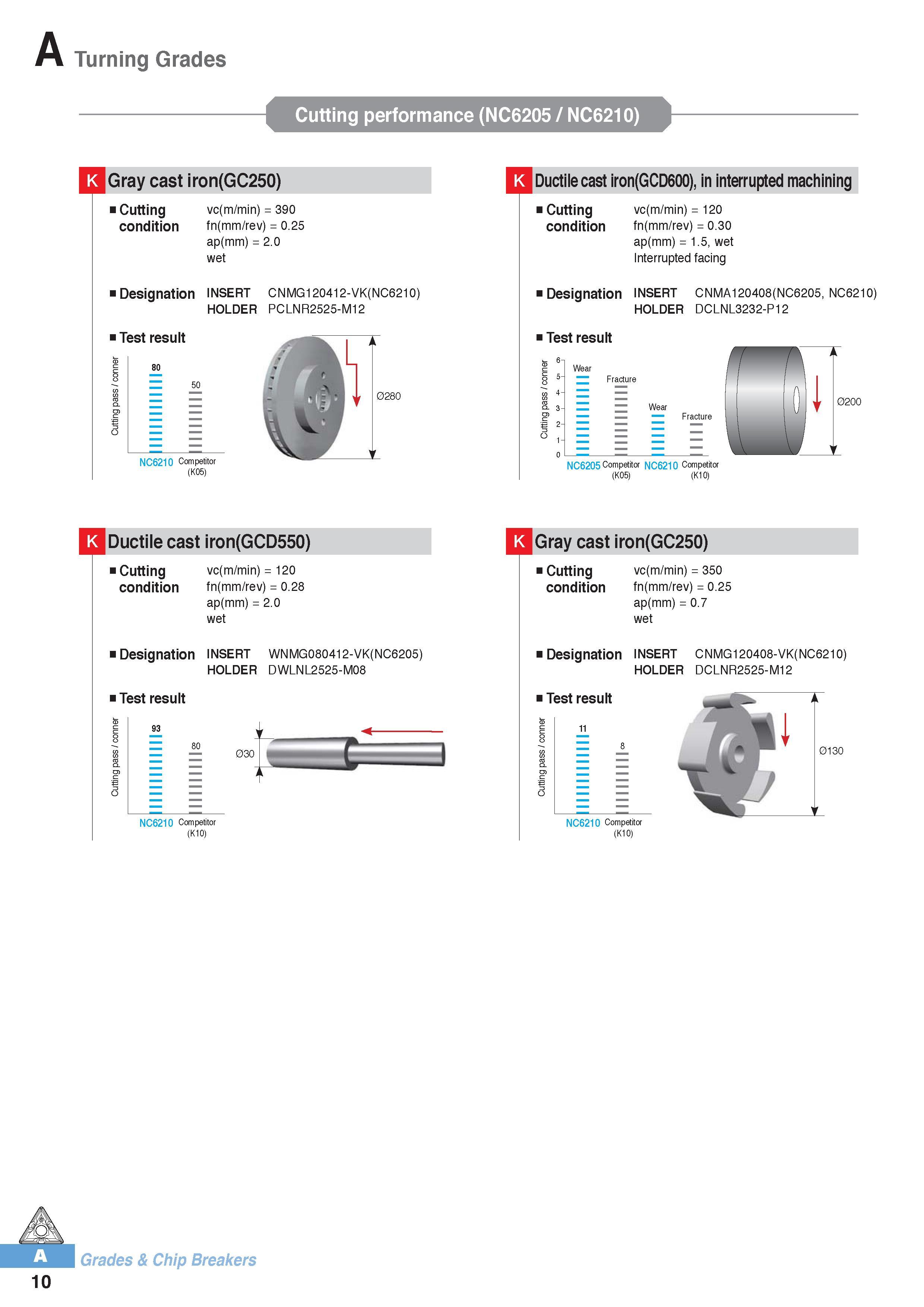

Korloy turning grades NC6205 NC6210 K Gray cast iron(GC250) Cutting condition vc(m/min) = 390 fn(mm/rev) = 0.25 ap(mm) = 2.0 wet i Designation insert CNMG120412-VK(NC6210) HOLDER PCLNR2525-M12 Test result NC6210 Competitor (K05) 0280 80 50 Ductile cast iron(GCD600), in interrupted machining Cutting vc(m/min) = 120 condition fn(mm/rev) = 0.30 ap(mm) = 1.5, wet Interrupted facing Designation insert CNMA120408 NC6205 NC6210 HOLDER DCLNL3232-P12 Test result NC6205 Competitor NC6210 Competitor (K05) (K10) K Ductile cast iron(GCD550) K Gray cast iron(GC250) Cutting condition Designation Test result vc(m/min) = 120 fn(mm/rev) = 0.28 ap(mm) = 2.0 wet INSERT HOLDER 030 WNMG080412-VK(NC6205) DWLNL2525-M08 NC6210 Competitor (K10) Cutting condition vc(m/min) = 350 fn(mm/rev) = 0.25 ap(mm) = 0.7 wet Designation iNSERT CNMG120408-VK(NC6210) HOLDER DCLNR2525-M12 Test result NC6210 Competitor (K10) 0130 93 11 80 8 Grades & Chip Breakers 10
