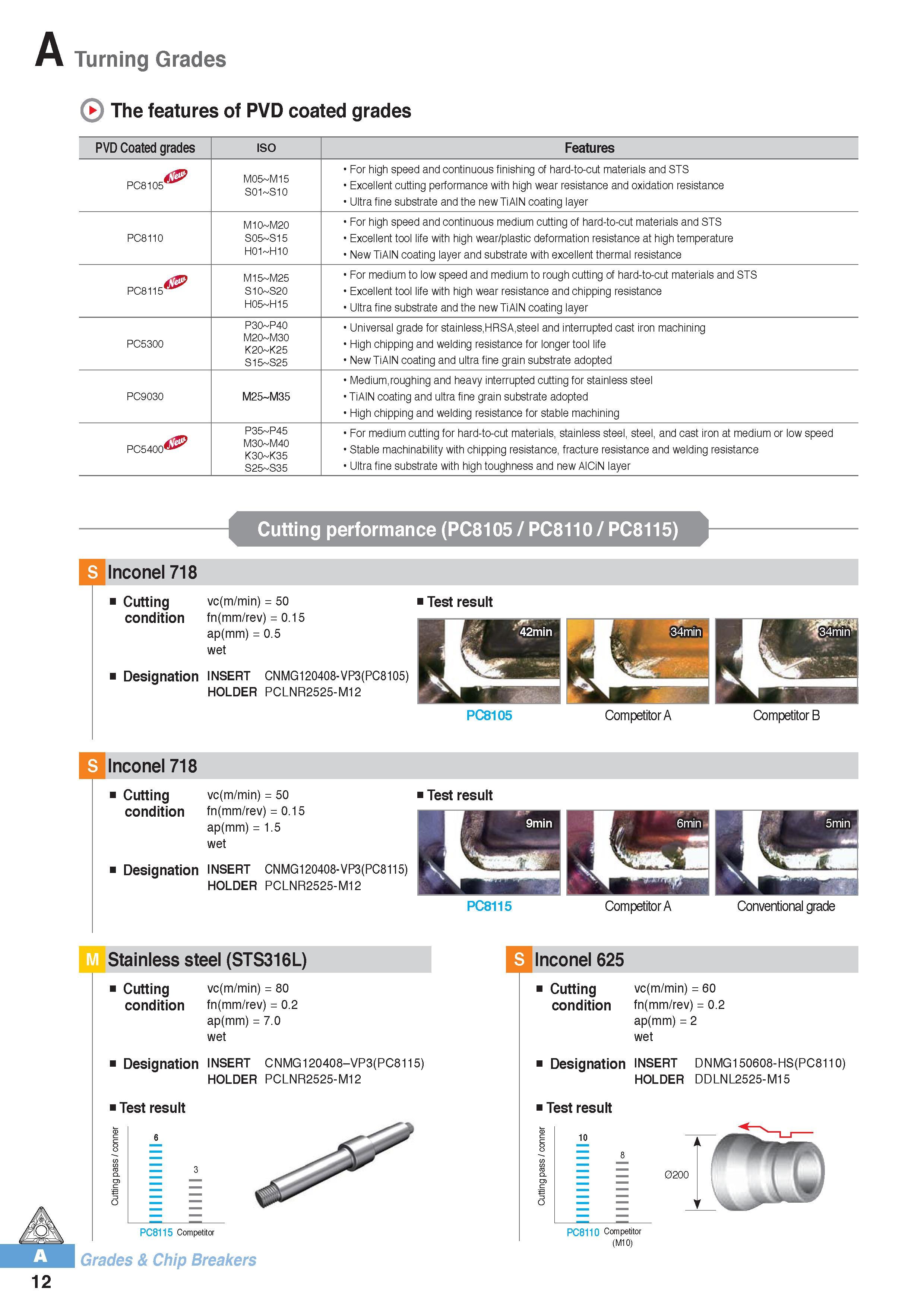

The features of PVD coated grades PVD Coated grades ISO Features PC8105 For high speed and continuous finishing of hard-to-cut materials and STS Excellent cutting performance with high wear resistance and oxidation resistance Ultra fine substrate and the new TiAIN coating layer PC8110 M10 M20 S05 S15 H01 H10 For high speed and continuous medium cutting of hard-to-cut materials and STS Excellent tool life with high wear/plastic deformation resistance at high temperature New TiAIN coating layer and substrate with excellent thermal resistance PC8115 M15 M25 S10 S20 H05 H15 For medium to low speed and medium to rough cutting of hard-to-cut materials and STS Excellent tool life with high wear resistance and chipping resistance Ultra fine substrate and the new TiAlN coating layer PC5300 P30 P40 M20 M30 K20 K25 S15 S25 Universal grade for stainless,HRSA,steel and interrupted cast iron machining High chipping and welding resistance for longertool life New TiAIN coating and ultra fine grain substrate adopted PC9030 M25 M35 Medium,roughing and heavy interrupted cutting for stainless steel TiAIN coating and ultra fine grain substrate adopted High chipping and welding resistance for stable machining PC5400 P35 P45 M30 M40 K30 K35 S25 S35 For medium cutting for hard-to-cut materials, stainless steel, steel, and cast iron at medium or low speed Stable machinability with chipping resistance, fracture resistance and welding resistance Ultra fine substrate with high toughness and new AlCiN layer Cutting performance (PC8105 / PC8110 / PC8115) Inconel 718 Cutting vc(m/min) = 50 condition fn(mm/rev) = 0.15 ap(mm) = 0.5 wet Designation INSERT CNMG120408-VP3(PC8105) HOLDER PCLNR2525-M12 i Test result PC8105 Competitor A Competitor B S Inconel 718 Cutting vc(m/min) = 50 condition fn(mm/rev) = 0.15 ap(mm) = 1.5 wet Designation INSERT CNMG120408-VP3(PC8115) HOLDER PCLNR2525-M12 Test result PC8115 Competitor A Conventional grade 12 M Stainless steel (STS316L) .S. Inconel 625 Cutting condition vc(m/min) = 80 fn(mm/rev) = 0.2 ap(mm) = 7.0 wet i Designation insert CNMG120408-VP3(PC8115) HOLDER PCLNR2525-M12 Test result PC8115 Competitor Grades & Chip Breakers Cutting condition vc(m/min) = 60 fn(mm/rev) = 0.2 ap(mm) = 2 wet i Designation INSERT HOLDER Test result DNMG150608-HS(PC8110) DDLNL2525-M15 0200 PC8110 Competitor (M10) 6 10 8 3 A Turning Grades M05 M15 S01 S10
