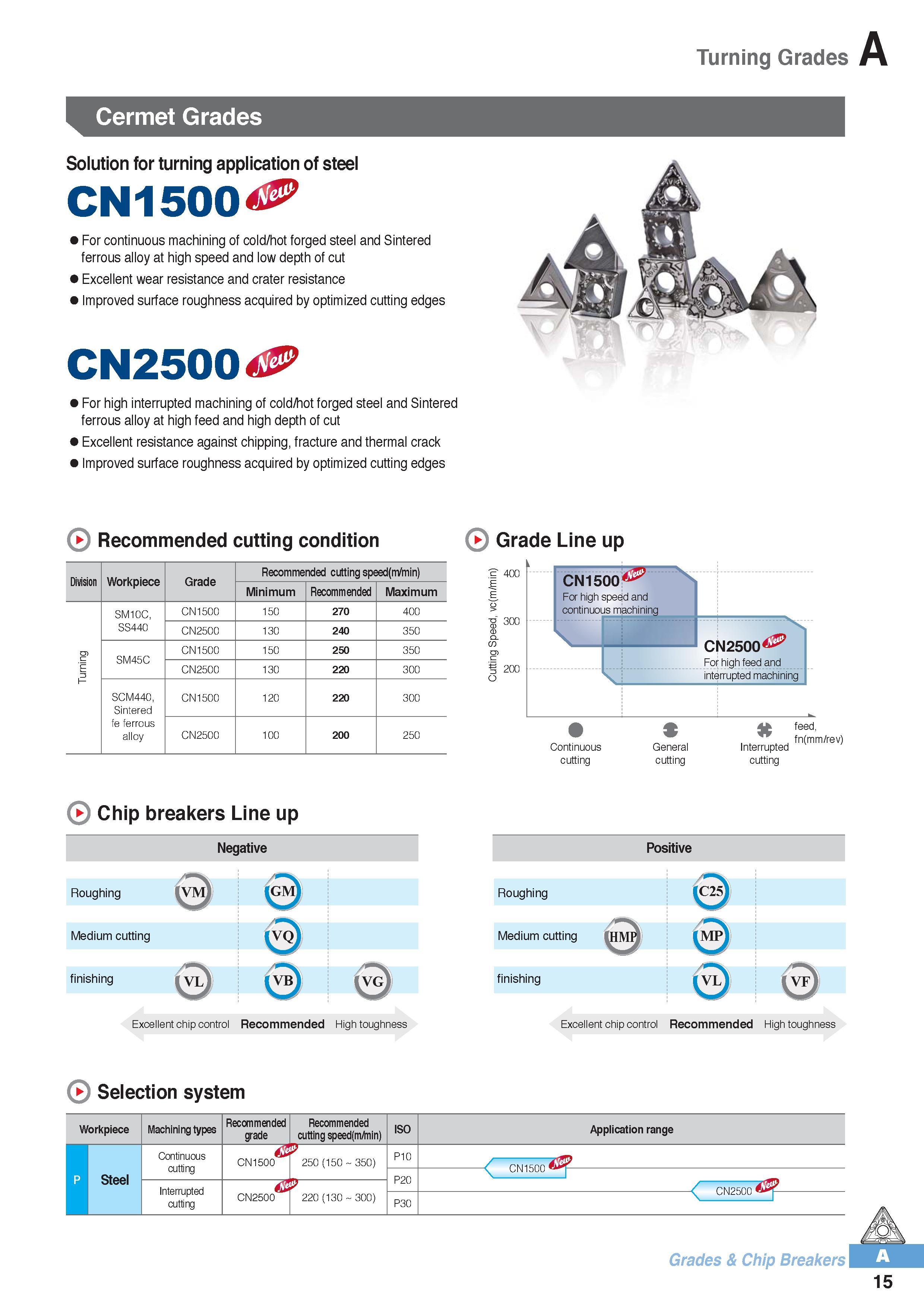

Новые инструментальные материалы для точения Токарные керметы Korloy CN1500 CN2500 Описание основных характеристик области применения Рекомендуемые режимы резания For continuous machining of cold/hot forged steel and Sintered ferrous alloy at high speed and low depth of cut Excellent wear resistance and crater resistance Improved surface roughness acquired by optimized cutting edges CN2500 JP For high interrupted machining of cold/hot forged steel and Sintered ferrous alloy at high feed and high depth of cut Excellent resistance against chipping, fracture and thermal crack Improved surface roughness acquired by optimized cutting edges Recommended cutting condition Grade Line up Division Workpiece Grade Recommended cutting speed(m/min) Minimum Recommended Maximum Turning SM10C, SS440 CN1500 150 270 400 CN2500 130 240 350 SM45C CN1500 150 250 350 CN2500 130 220 300 SCM440, Sintered fe ferrous alloy CN1500 120 220 300 CN2500 100 200 250 TR 300 200 iW CN1500 For high speed and continuous machining CN2500 For high feed and interrupted machining Continuous cutting S General cutting Interrupted cutting feed, fn(mm/rev) Chip breakers Line up Excellent chip control Recommended High toughness Excellent chip control Recommended High toughness Selection system Workpiece Machining types Recommended grade Recommended cutting speed(m/min) ISO Application range Steel Continuous cutting CN1500 r 250 (150 350) P10 / ms P20 Interrupted cutting A CN2500 JJ 220 (130 300) P30 Grades & Chip Breakers 15 Turning Cermet Grades Solution for turning application of steel CN1500
