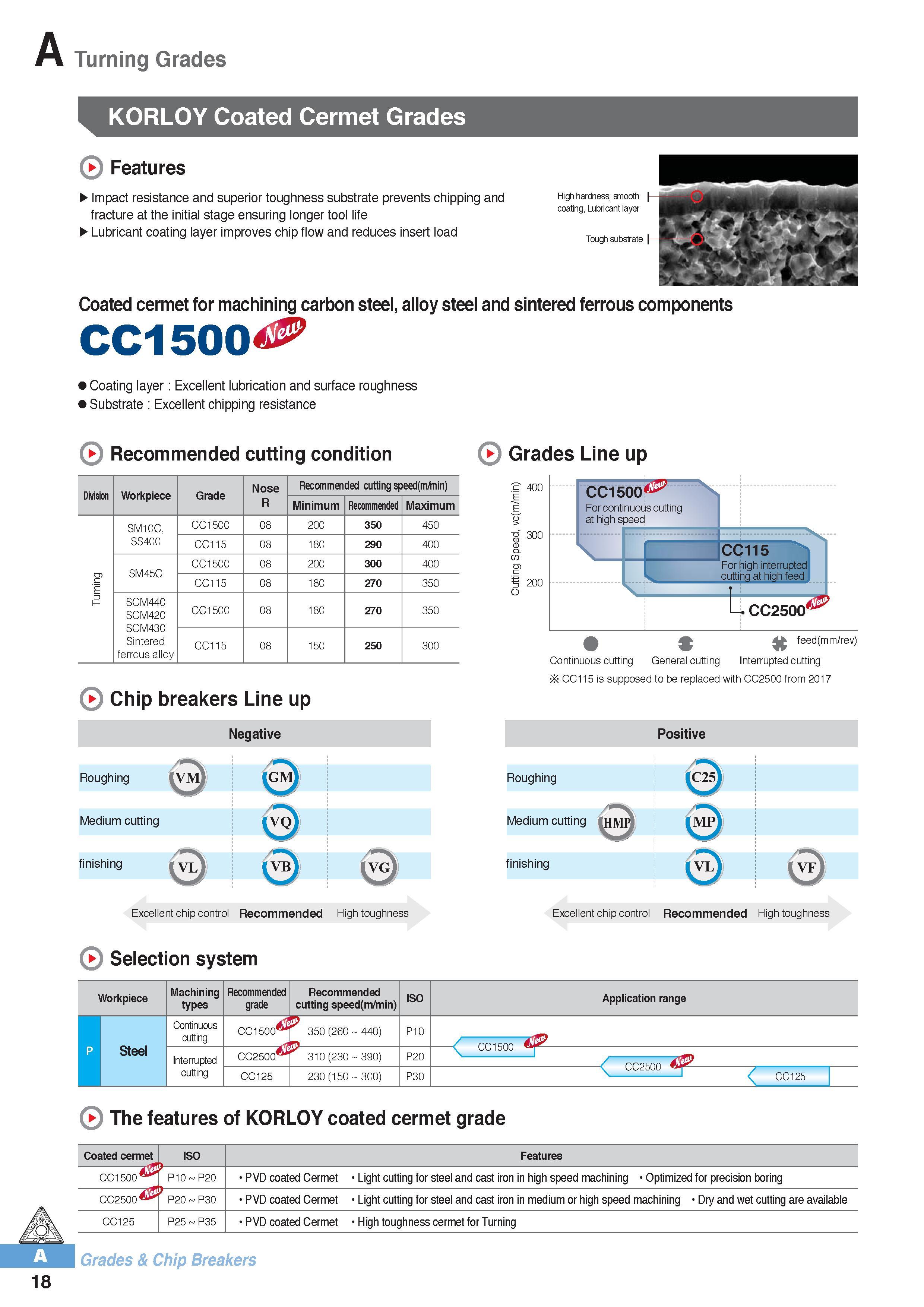

Описание особенностей. области применения и режимов резания Korloy при точении для керметов с защитным покрытием CC1500 Coated Cermet Grades Features Impact resistance and superior toughness substrate prevents chipping and fracture at the initial stage ensuring longer tool life Lubricant coating layer improves chip flow and reduces insert load High hardness, smooth coating, Lubricant layer Tough substrate Coated cermet for machining carbon steel, alloy steel and sintered ferrous components CC1500 Coating layer Excellent lubrication and surface roughness Substrate Excellent chipping resistance Recommended cutting condition Division Workpiece Grade Nose R Recommended cutting speed(m/min) Minimum Recommended Maximum g C 'C ru T SM10C, SS400 CC1500 08 200 350 450 CC115 08 180 290 400 SM45C CC1500 08 200 300 400 CC115 08 180 270 350 SCM440 SCM420 SCM430 Sintered ferrous alloy CC1500 08 180 270 350 CC115 08 150 250 300 Chip breakers Line up Roughing Medium cutting finishing VM Negative GM VQ VB Grades Line up CC1500 1= 40C /m (m/ c( v ed, 300 e p co g c utti200 For continuous cutting at high speed CC115 For high interrupted cutting at high feed "S, tr CC2500 Q feed(mm/rev) Continuous cutting General cutting Interrupted cutting CC115 is supposed to be replaced with CC2500 from 2017 Roughing Medium cutting finishing Positive MP Excellent chip control Recommended High toughness Excellent chip control Recommended High toughness Selection system Workpiece 1 Steel Machining types Continuous cutting Interrupted cutting Recommended grade CC1500 CC2500 w CC125 Recommended cutting speed(m/min) 350 (260 440) 310 (230 390) 230 (150 300) ISO P10 P20 P30 Application range CC1500 y_ CC2500 g2- X. CC125 The features of KORLOY coated cermet grade Coated cermet ISO Features CC1500 P10 P20 PVD coated Cermet Light cutting for steel and cast iron in high speed machining Optimized for precision boring CC2500 P20 P30 PVD coated Cermet Light cutting for steel and cast iron in medium or high speed machining Dry and wet cutting are available CC125 P25 P35 PVD coated Cermet Hightoughnesscermetfor Turning 18 Grades & Chip Breakers Turning Grades KORLOY
