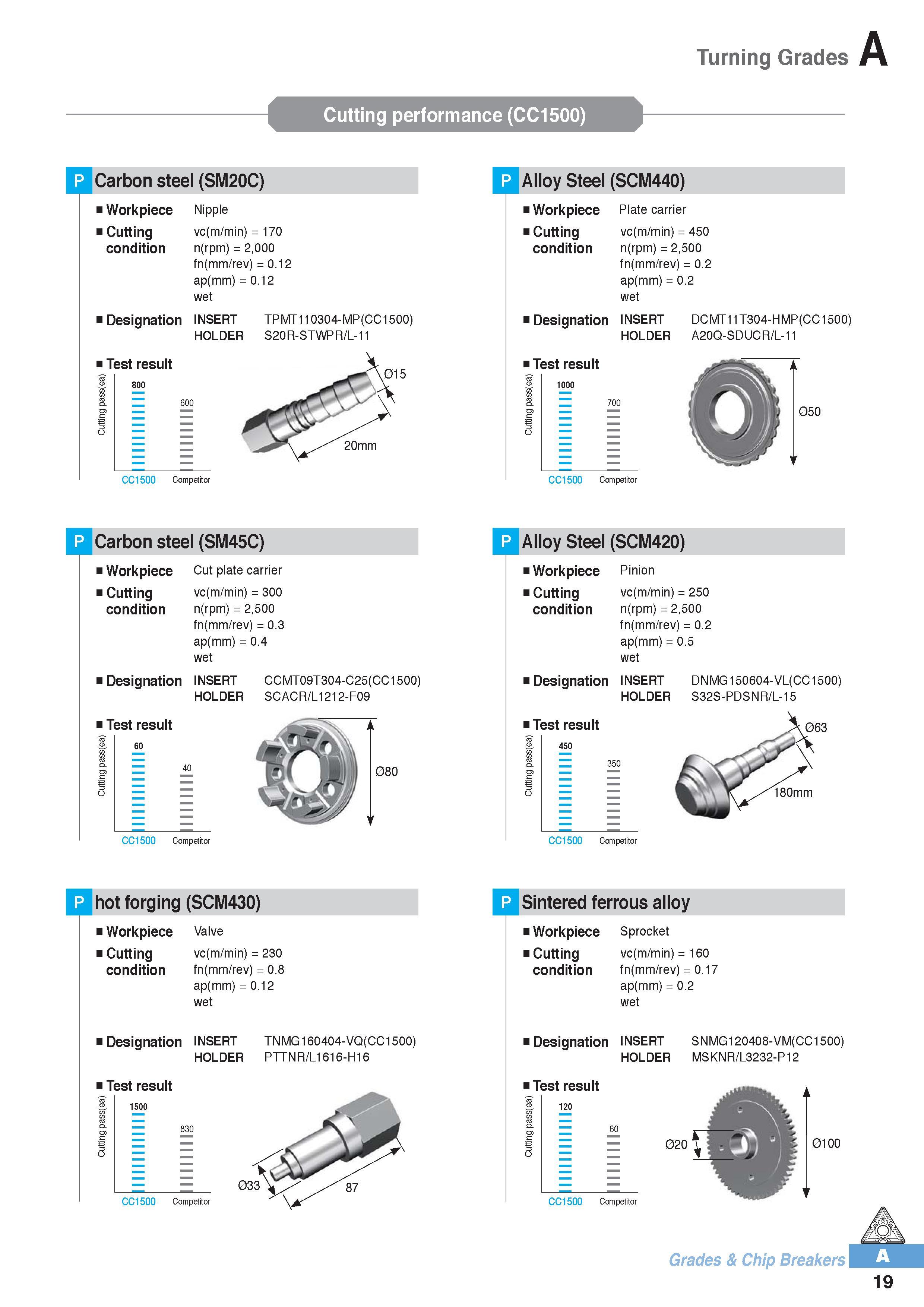

Turning Grades Cutting performance (CC1500) Carbon steel (SM20C) Workpiece Cutting condition Nipple vc(m/min) = 170 n(rpm) = 2,000 fn(mm/rev) = 0 12 ap(mm)

Turning Grades Cutting performance (CC1500) Carbon steel (SM20C) Workpiece Cutting condition Nipple vc(m/min) = 170 n(rpm) = 2,000 fn(mm/rev) = 0.12 ap(mm) = 0.12 wet i Designation insert HOLDER Test result TPMT110304-MP(CC1500) S20R-STWPR/L-11 CC1500 Competitor 800 600 Alloy Steel (SCM440) Workpiece Plate carrier Cutting vc(m/min) = 450 condition n(rpm) = 2,500 fn(mm/rev) = 0.2 ap(mm) = 0.2 wet Designation insert DCMT11T304-HMP(CC1500) HOLDER A20Q-SDUCR/L-11 CC1500 Competitor Carbon steel (SM45C) Workpiece Cut plate carrier Cutting vc(m/min) = 300 condition n(rpm) = 2,500 fn(mm/rev) = 0.3 ap(mm) = 0.4 wet Designation insert CCMT09T304-C25(CC1500) HOLDER SCACR/L1212-F09 CC1500 Competitor Alloy Steel (SCM420) Workpiece Cutting condition Pinion vc(m/min) = 250 n(rpm) = 2,500 fn(mm/rev) = 0.2 ap(mm) = 0.5 wet Designation INSERT HOLDER Test result DNMG150604-VL(CC1500) S32S-PDSNR/L-15 063 CC1500 Competitor 450 350 hot forging (SCM430) Workpiece Valve i Cutting vc(m/min) = 230 condition fn(mm/rev) = 0.8 ap(mm) = 0.12 wet i Designation insert HOLDER Test result I 1500 TNMG160404-VQ(CC1500) PTTNR/L1616-H16 CC1500 Competitor Sintered ferrous alloy Workpiece Sprocket i Cutting vc(m/min) = 160 condition fn(mm/rev) = 0.17 ap(mm) = 0.2 wet i Designation insert HOLDER Test result I 120 SNMG120408-VM(CC1500) MSKNR/L3232-P12 020 CC1500 Competitor 0100 Grades & Chip Breakers 19 830 60
