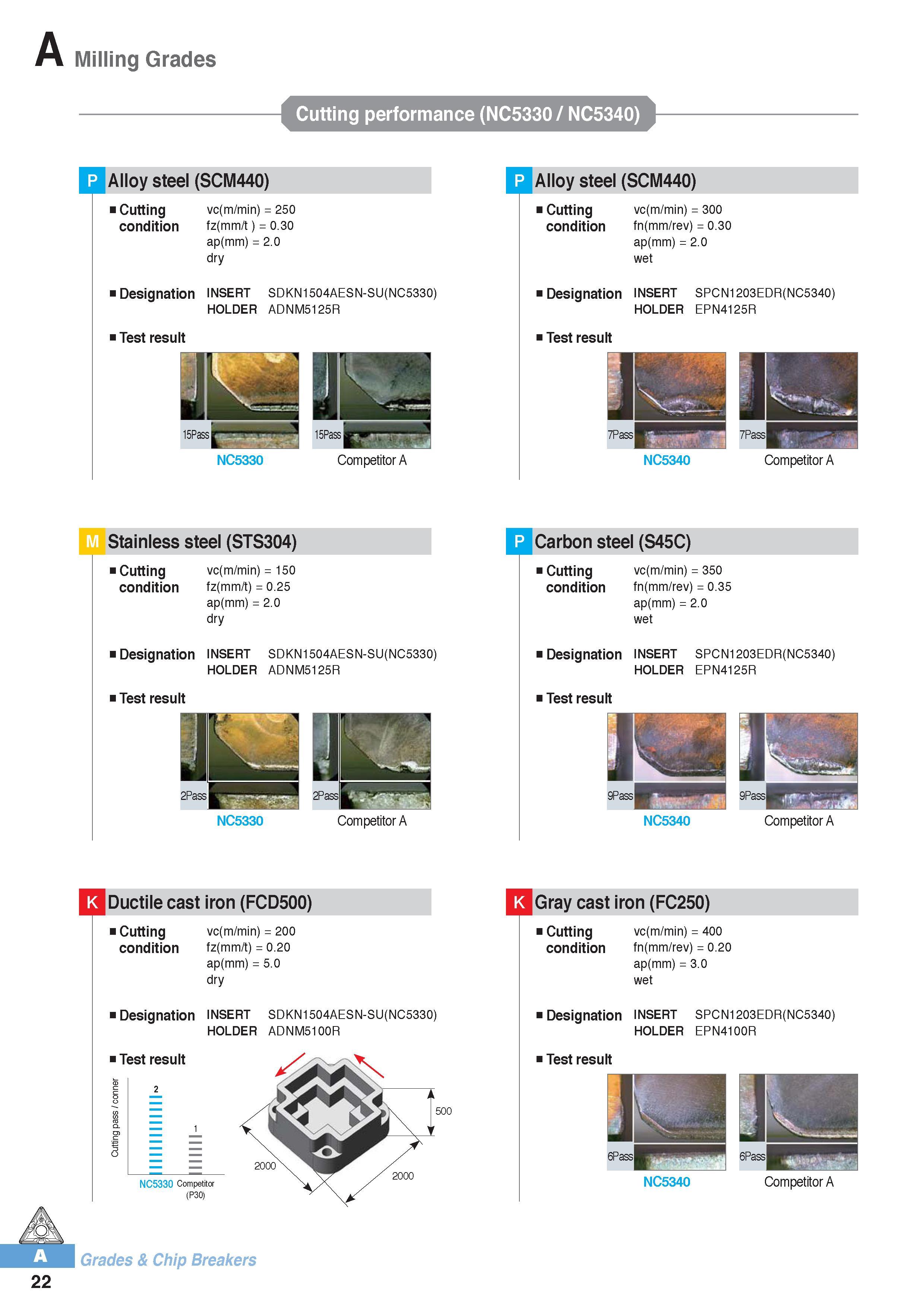

Milling Grades Cutting performance (NC5330 / NC5340) P Alloy steel (SCM440) Cutting condition vc(m/min) = 250 fz(mm/t ) = 0.30 ap(mm) = 2.0 dry i Designation insert SDKN1504AESN-SU(NC5330) HOLDER ADNM5125R Test result 1 15Pass j 15Pass i NC5330 Competitor A M Stainless steel (STS304) Cutting condition vc(m/min) = 150 fz(mm/t) = 0.25 ap(mm) = 2.0 dry i Designation insert SDKN1504AESN-SU(NC5330) HOLDER ADNM5125R Test result 1 2Pass 2Pass NC5330 Competitor A Alloy steel (SCM440) Cutting vc(m/min) = 300 condition fn(mm/rev) = 0.30 ap(mm) = 2.0 wet Designation insert SPCN1203EDR(NC5340) HOLDER EPN4125R Test result NC5340 Competitor A Carbon steel (S45C) Cutting vc(m/min) = 350 condition fn(mm/rev) = 0.35 ap(mm) = 2.0 wet Designation insert SPCN1203EDR(NC5340) HOLDER EPN4125R Test result NC5340 Competitor A Ductile cast iron (FCD500) Cutting condition vc(m/min) = 200 fz(mm/t) = 0.20 ap(mm) = 5.0 dry i Designation insert SDKN1504AESN-SU(NC5330) HOLDER ADNM5100R Test result NC5330 Competitor (P30) 500 2 Gray cast iron (FC250) Cutting vc(m/min) = 400 condition fn(mm/rev) = 0.20 ap(mm) = 3.0 wet Designation insert SPCN1203EDR(NC5340) HOLDER EPN4100R Test result NC5340 Competitor A Grades & Chip Breakers 22
