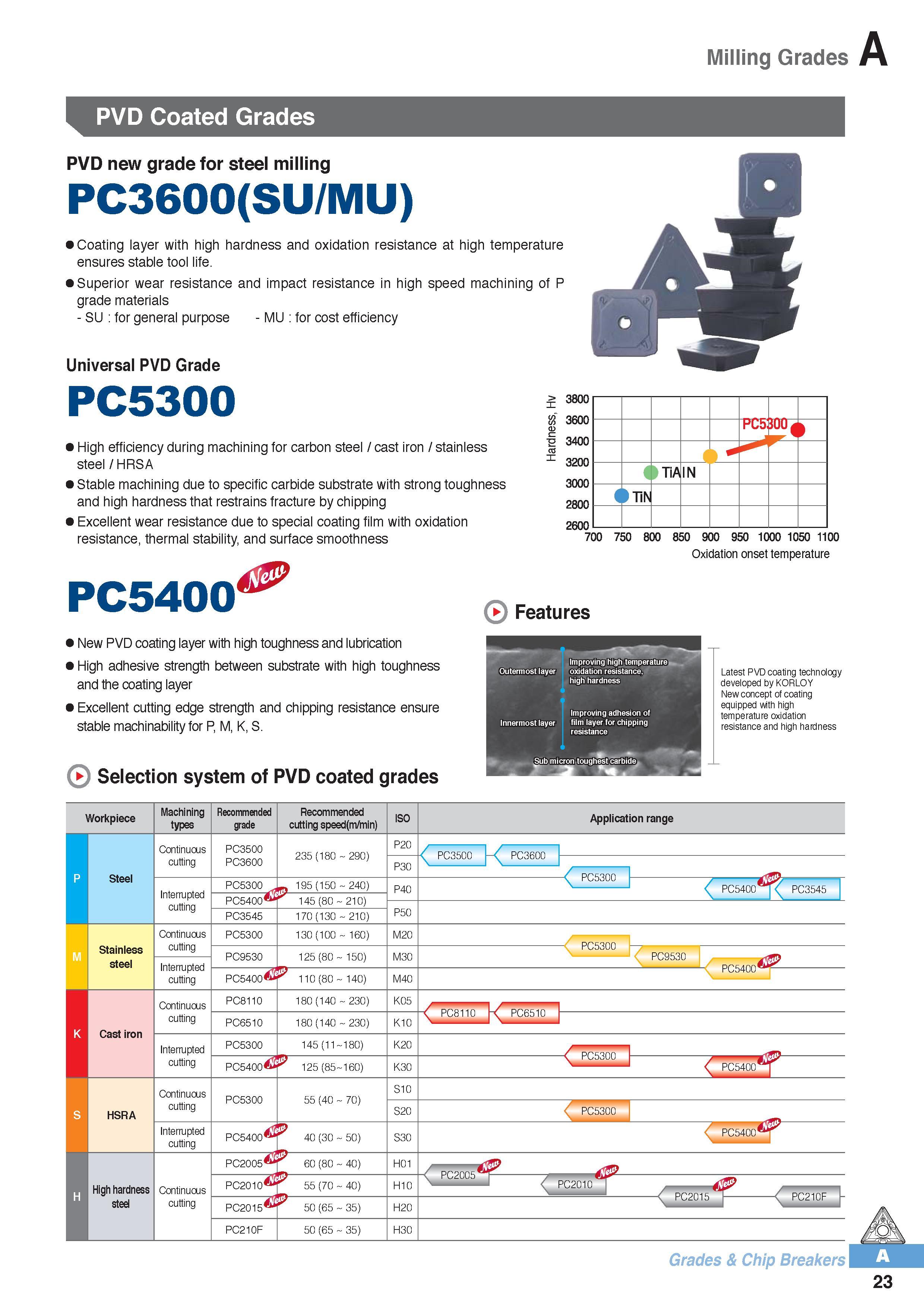

Milling Grades PVD Coated Grades PVD new grade for steel milling PC3600(SU/MU) Coating layer with high hardness and oxidation resistance at high temperature ensures stable tool life. Superior wear resistance and impact resistance in high speed machining of P grade materials - SU for general purpose - MU for cost efficiency Universal PVD Grade PC5300 High efficiency during machining for carbon steel / cast iron / stainless steel / HRSA Stable machining due to specific carbide substrate with strong toughness and high hardness that restrains fracture by chipping Excellent wear resistance due to special coating film with oxidation resistance, thermal stability, and surface smoothness > 3800 8 3600 IN 4 =1 PC5400 700 750 800 850 900 950 1000 1050 1100 Oxidation onset temperature Features New PVD coating layer with high toughness and lubrication High adhesive strength between substrate with high toughness and the coating layer Excellent cutting edge strength and chipping resistance ensure stable machinability for P, M, K, S. Selection system of PVD coated grades Latest PVD coating technology developed by KORLOY New concept of coating equipped with high temperature oxidation resistance and high hardness Workpiece Steel Stainless steel Cast iron HSRA High hardness steel Machining types Continuous cutting Interrupted cutting Continuous cutting Interrupted cutting Continuous cutting Interrupted cutting Continuous cutting Interrupted cutting Continuous cutting Recommended grade PC3500 PC3600 PC5300 PC5400 PC3545 PC5300 PC9530 Recommended cutting speed(m/min) 235 (180 290) 195 (150 240) 145 (80 210) 170 (130 210) 130 (100 160) 125 (80 150) PC5400 PC8110 PC6510 PC5300 PC5400 PC5300 110 (80 140) 180 (140 230) 180 (140 230) 145 (11 18 125 (85 160) 55 (40 70) PC5400 40 (30 50) PC2005 60 (80 40) PC2010 55 (70 40) PC2015 50 (65 35) PC210F 50 (65 35) ISO P20 P30 P40 P50 M20 M30 M40 K05 K10 K20 K30 S10 S20 S30 H01 H10 H20 H30 Application range PC3500 PC3600 PC5300 PC5400 PC3545 PC5300 PC9530 - PC5400 PC8110 x: PC6510 PC5300 PC5400 PC2005 PC2010 Grades & Chip Breakers 23 K H
