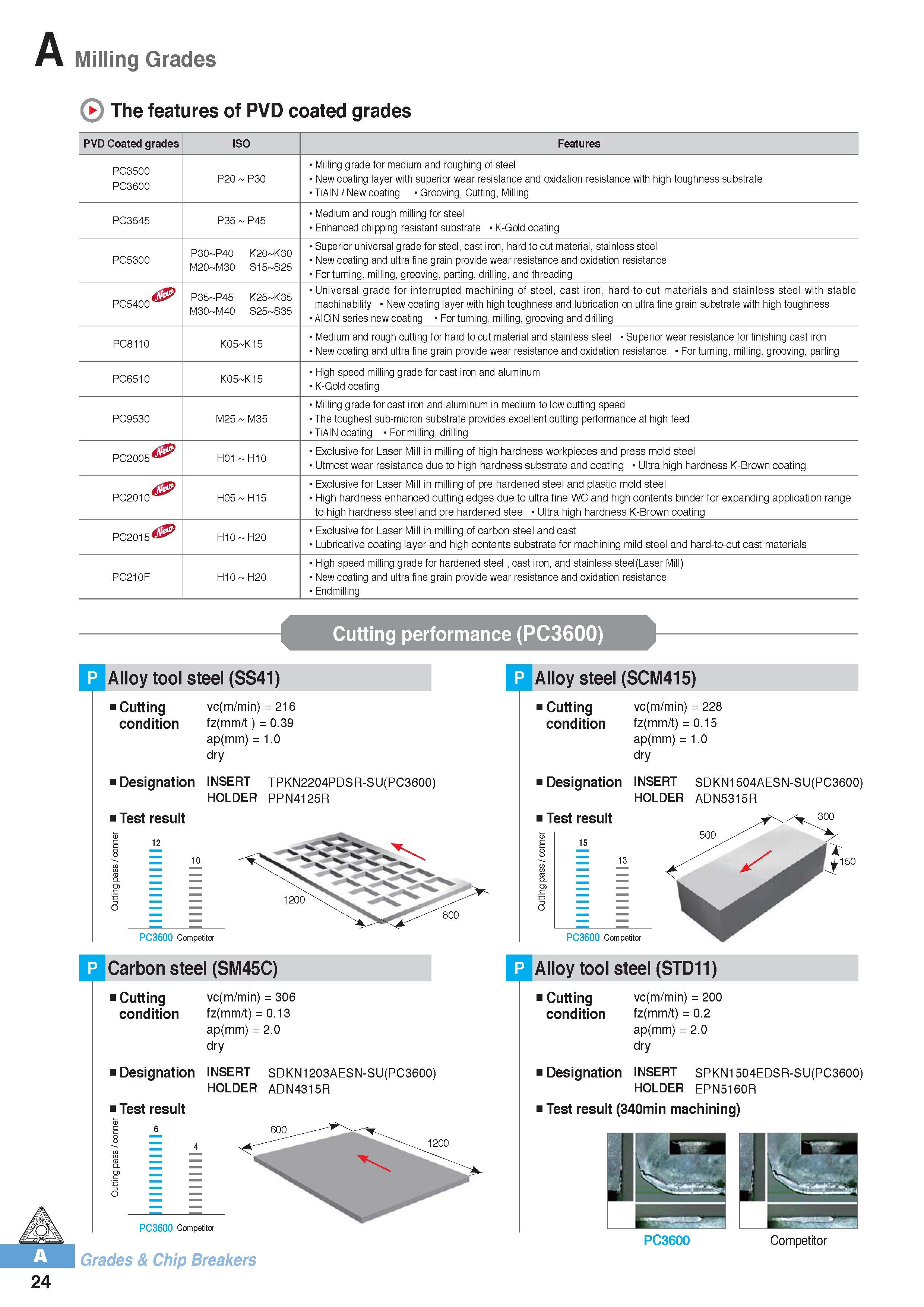

A Milling Grades The features of PVD coated grades PVD Coated grades ISO Features PC3500 PC3600 P20 P30 Milling grade for medium and roughing of steel New coatinglayer with superior wear resistance and oxidation resistance with high toughness substrate TiAIN 1 New coating Grooving, Cutting, Milling PC3545 P35 P45 Medium and rough milling for steel Enhanced chipping resistant substrate K-Gold coating PC5300 P30 P40 K20 K30 M20 M30 S15 S25 Superior universal grade for steel, castiron, hard to cut material, stainless steel New coating and ultra fine grain provide wear resistance and oxidation resistance For turning, milling, grooving, parting, drilling, and threading PC5400 P35 P45 K25 K35 M30 M40 S25 S35 Universal grade for interrupted machining of steel, cast iron, hard-to-cut materials and stainless steel with stable machinability New coatinglayer with high toughness and lubrication on ultra fine grain substrate with high toughness AlCiN series newcoating For turning, milling, grooving and drilling PC8110 K05 K15 Medium and rough cutting forhand tocut material and stainless steel Superiorwear resistance for finishing castiron Newcoating and ultra fine grain provide wear resistance and oxidation resistance For turning, milling, grooving, parting PC6510 K05 K15 High speed milling grade forcastiron and aluminum K-Gold coating PC9530 M25 M35 Milling grade forcastiron and aluminumin medium tolowcutting speed The toughest sub-micron substrate provides excellent cutting performance at high feed TiAIN coating For milling, drilling PC2005 H01 H10 Exclusive for Laser Mill in milling of high hardness workpieces and press mold steel Utmost wear resistance due to high hardness substrate and coating Ultra high hardness K-Brown coating PC2010 H05 H15 Exclusive for Laser Mill in milling of pre hardened steel and plastic mold steel High hardness enhanced cutting edges due to ultra fine WC and high contents binder for expanding application range to high hardness steel and pre hardened stee Ultra high hardness K-Brown coating PC2015 H10 H20 Exclusive for Laser Mill in milling of carbon steel and cast Lubricative coating layer and high contents substrate for machining mild steel and hard-to-cut cast materials PC210F H10 H20 High speed milling grade for hardened steel castiron, and stainless steel(Laser Mill) New coating and ultra fine grain provide wear resistance and oxidation resistance Endmilling Cutting performance (PC3600) P Alloy tool steel (SS41) P Alloy steel (SCM415) Cutting condition vc(m/min) = 216 fz(mm/t ) = 0.39 ap(mm) = 1.0 dry i Designation insert TPKN2204PDSR-SU(PC3600) HOLDER PPN4125R Test result PC3600 Competitor Cutting condition Designation Test result vc(m/min) = 228 fz(mm/t) = 0.15 ap(mm) = 1.0 dry INSERT HOLDER SDKN1504AESN-SU(PC3600) ADN5315R 300 PC3600 Competitor 150 12 15 10 13 24 P Carbon steel (SM45C) P Alloy tool steel (STD11) i Cutting vc(m/min) = 306 condition fz(mm/t) = 0.13 ap(mm) = 2.0 dry i Designation insert SDKN1203AESN-SU(PC3600) HOLDER ADN4315R Test result 5 = 6 PC3600 Competitor Grades & Chip Breakers Cutting condition vc(m/min) = 200 fz(mm/t) = 0.2 ap(mm) = 2.0 dry INSERT HOLDER Designation i Test result (340min machining) SPKN1504EDSR-SU(PC3600) EPN5160R PC36Q0 Competitor 4
