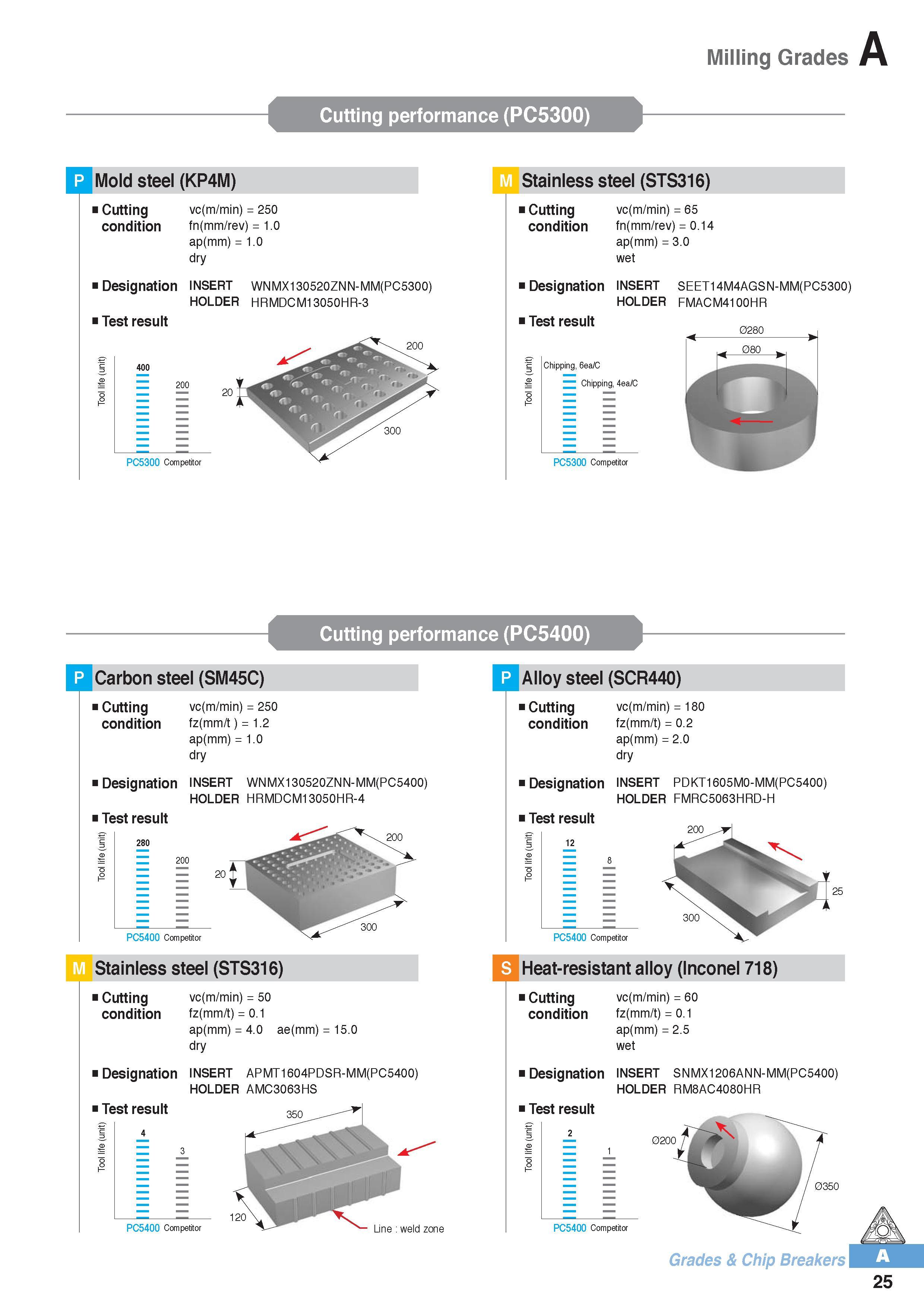

Milling Grades Cutting performance (PC5300) P Mold steel (KP4M) M Stainless steel (STS316) Cutting condition vc(m/min) = 250 fn(mm/rev) = 1.0 ap(mm) = 1.0 dry i Designation insert WNMX130520ZNN-MM(PC5300) HOLDER HRMDCM13050HR-3 Test result 20 PC5300 Competitor Cutting condition vc(m/min) = 65 fn(mm/rev) = 0.14 ap(mm) = 3.0 wet i Designation insert SEET14M4AGSN-MM(PC5300) HOLDER FMACM4100HR Test result 0280 Chipping, 6ea/C J= Chipping, 4ea/C PC5300 Competitor M. 080 ( f Cutting performance (PC5400) Carbon steel (SM45C) P Alloy steel (SCR440) Cutting condition vc(m/min) = 250 fz(mm/t ) = 1.2 ap(mm) = 1.0 dry i Designation insert WNMX130520ZNN-MM(PC5400) HOLDER HRMDCM13050HR-4 Test result 280 20 PC5400 Competitor M Stainless steel (STS316) Cutting vc(m/min) = 50 condition fz(mm/t) = 0.1 ap(mm) = 4.0 ae(mm) = 15.0 dry i Designation insert APMT1604PDSR-MM(PC5400) HOLDER AMC3063HS Test result S 4 PC5400 Competitor 120 Line weld zone Cutting condition vc(m/min) = 180 fz(mm/t) = 0.2 ap(mm) = 2.0 dry i Designation insert PDKT1605M0-MM(PC5400) HOLDER FMRC5063HRD-H Test result 12 PC5400 Competitor 25 Heat-resistant alloy (Inconel 718) Cutting condition vc(m/min) = 60 fz(mm/t) = 0.1 ap(mm) = 2.5 wet i Designation insert SNMX1206ANN-MM(PC5400) HOLDER RM8AC4080HR Test result 1 2 0200 PC5400 Competitor Grades & Chip Breakers 25 400 200 200 8 3
